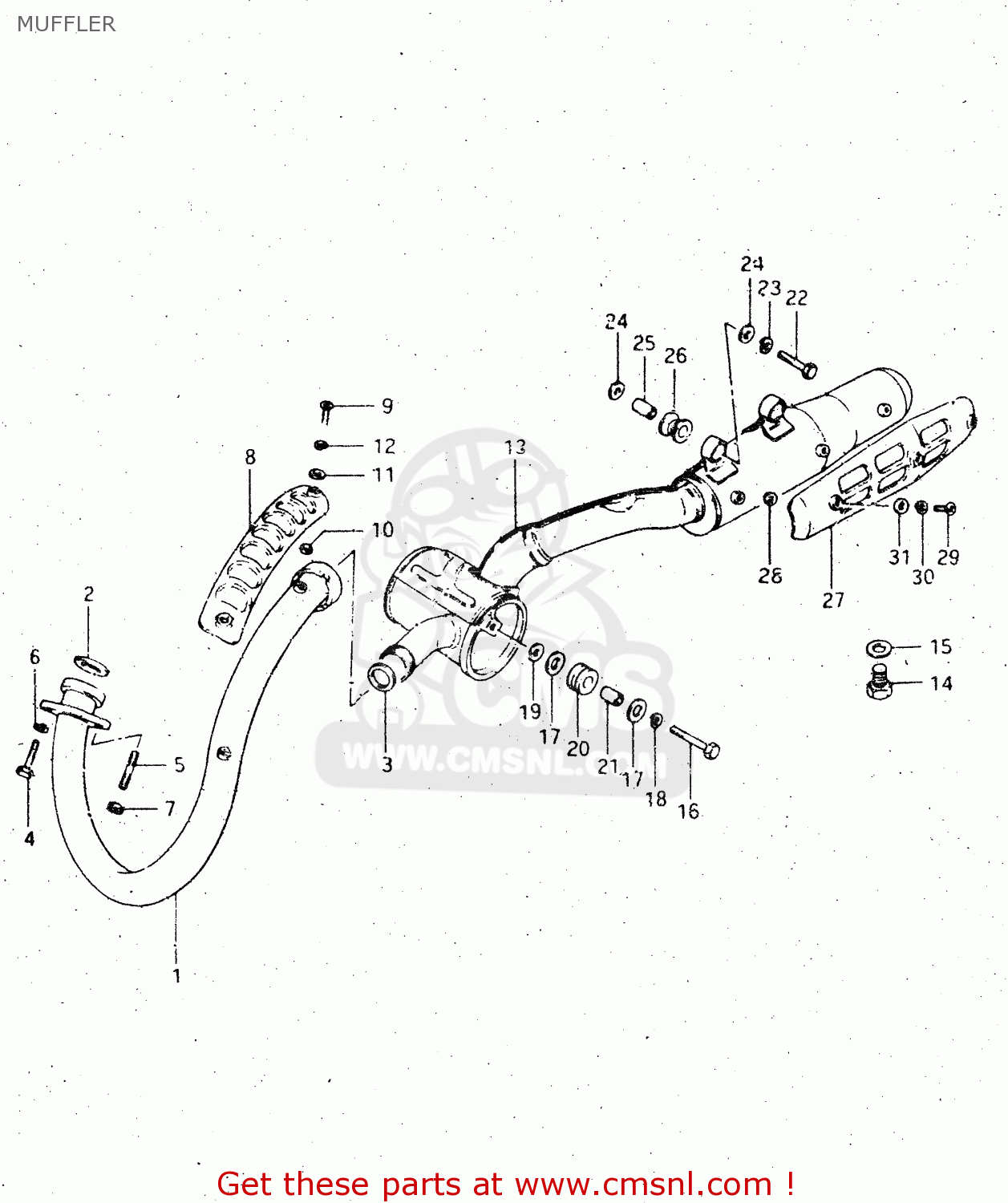

MUFFLER

ref

part #

description

quantity

1

1415037401
ref: 1

PIPE,EXHAUST

€ 81.50

2

1418111020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

1418105020
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 6.50

4

0110708255
ref: 4

BOLT

€ 2.50

5

0142108205
ref: 5

STUD BOLT

€ 2.00

6

0832121085
ref: 6

LOCK WASHER

€ 2.50

7

0831011085
ref: 7

NUT

€ 1.50

8

1418637400
ref: 8

COVER,EXHAUST PIPE

€ 55.00

9

0211206125
ref: 9

SCREW

€ 1.50

10

0916806005
ref: 10

GASKET 6.2X12X1.5 (MCA)

€ 2.00

11

0832221065
ref: 11

WASHER

€ 2.00

12

0832121065
ref: 12

LOCK WASHER

€ 2.00

13-1

1430137420
ref: 13-1

MUFFLER ASSEMBLY

€ 368.50

13-2

1430037411
ref: 13-2
E4,E6,E18,E22,E25,E3

MUFFLER ASSY

€ 335.00

14

0924712103
ref: 14

PLUG(12X9)

€ 3.50

15

0916812003
ref: 15

GASKET(12X16X2) (NAS)

€ 2.00

16

0110708355
ref: 16

BOLT

€ 3.50

17

0916008057
ref: 17

WASHER (8.5X20X1.6)

€ 2.00

18

0832121085
ref: 18

LOCK WASHER

€ 2.50

19

0916808010
ref: 19

GASKET

€ 2.00

20

0932014008
ref: 20

CUSHION

€ 4.50

21

0918008076
ref: 21

SPACER (8.6X13.8X13)

€ 2.50

22

0110708405
ref: 22

BOLT 8X40

€ 3.00

23

0832121085
ref: 23

LOCK WASHER

€ 2.50

24

0916008057
ref: 24

WASHER (8.5X20X1.6)

€ 2.00

25

0918008102
ref: 25

SPACER (8.6X12X17.5)

€ 3.00

26

0932012026
ref: 26

CUSHION

€ 8.00

27

1478137410
ref: 27

COVER,SECOND MUFFLER

€ 59.50

28

0916806005
ref: 28

GASKET 6.2X12X1.5 (MCA)

€ 2.00

29

0211206125
ref: 29

SCREW

€ 1.50

30

0832121065
ref: 30

LOCK WASHER

€ 2.00

31

0832221065
ref: 31

WASHER

€ 2.00
