TURN SIGNAL LAMP (E22)
DR500S 1984 (E)

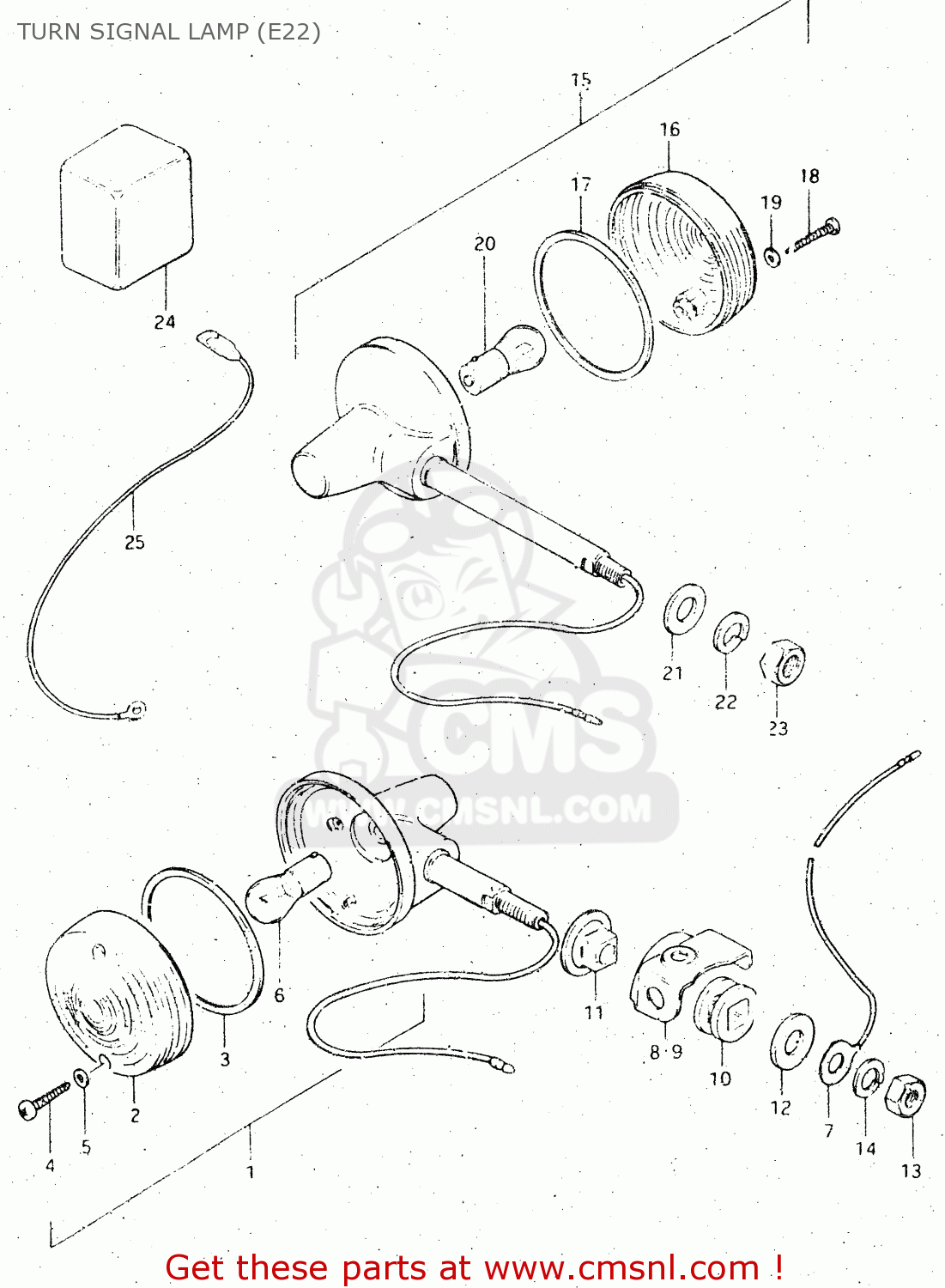

Turn signal lamp (e22) diagram DR500S 1984 (E)
TURN SIGNAL LAMP (E22) DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
3560148593
ref: 1
TO 35601-38290-999
LAMP, FRONT TURN SIGNAL
€ 41.50
2
3561247040
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104208
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106033
ref: 6
EXECUTED LOCALLY
BULB (6V,21W)
€ 0.00
7
3666033000
ref: 7
LEAD WIRE,EARTH
€ 5.00
8
512513090208C
ref: 8
BRACKET, FRONT RH
€ 4.00
9
512523090208C
ref: 9
BRACKET, FRONT LH
€ 11.00
10
3569032200
ref: 10
CUSHION
€ 38.50
11
3569536590
ref: 11
SPACER
€ 6.00
12
0916010006
ref: 12
WASHER (10.5X30X2.3)
€ 2.50
13
0831011108
ref: 13
NUT
€ 2.50
14
0832121108
ref: 14
LOCK WASHER
€ 2.00
15
3560337292
ref: 15
LAMP, REAR TURN SIGNAL
€ 0.00
16
3565247040
ref: 16
LENS,TURN SIGN
€ 7.00
17
3561328620
ref: 17
GASKET (NAS)
€ 7.00
18
0321104208
ref: 18
SCREW
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
€ 2.00
20
0947106033
ref: 20
EXECUTED LOCALLY
BULB (6V,21W)
€ 0.00
21
0832211108
ref: 21
WASHER
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
€ 2.00
23
0831011108
ref: 23
NUT
€ 2.50
24
3861048621
ref: 24
RELAY ASSY, TURN SIGNAL
€ 122.50
25
3685145010
ref: 25
TO 36851-35010
LEAD WIRE, RELAY EARTH
€ 6.00
