AIR CLEANER

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

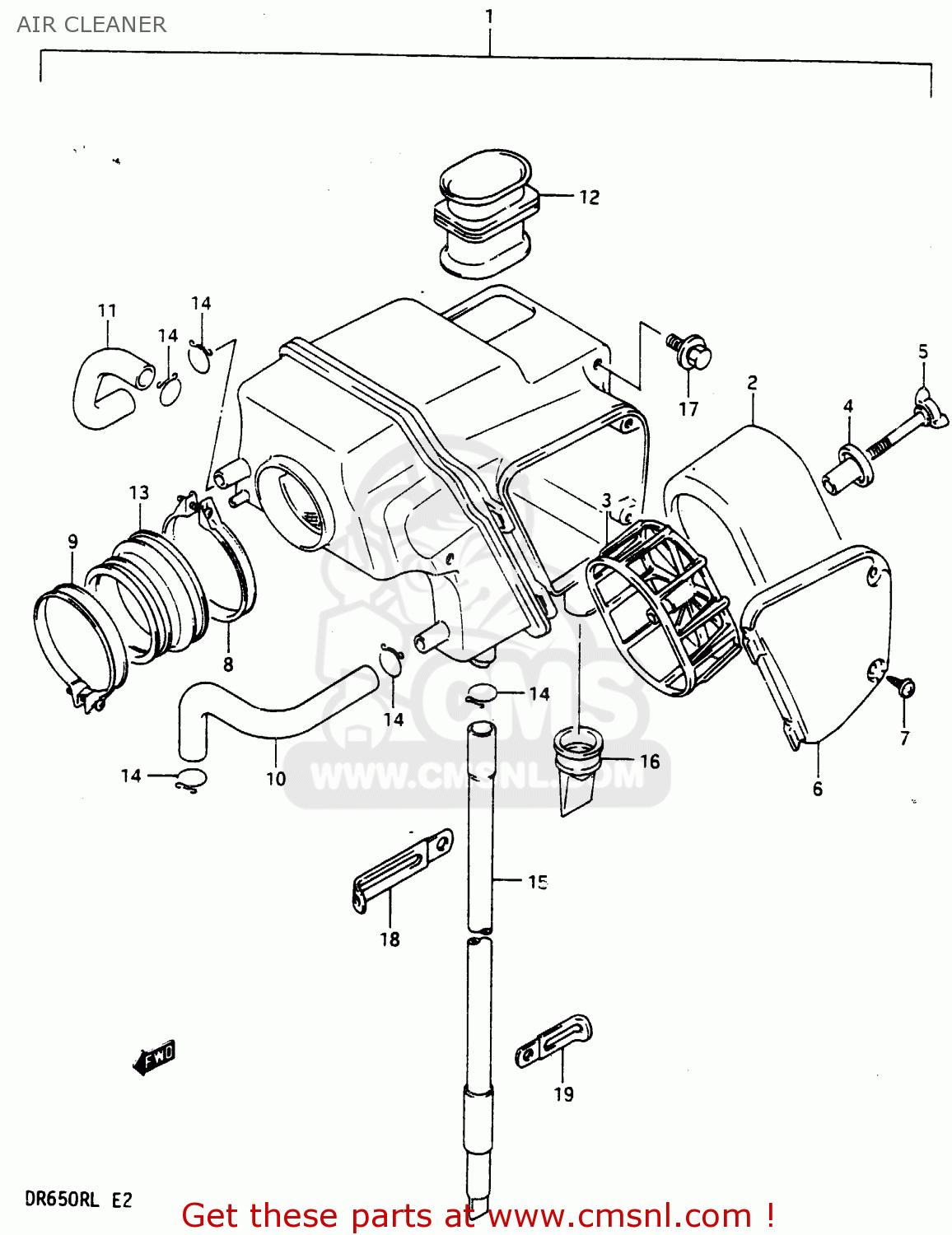

Air cleaner diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

1370012D10
ref: 1

CLEANER ASSY, AIR

€ 242.00

1370012D00
ref: 1
E16, E17

CLEANER ASSEMBLY,AIR

€ 157.00

1370012D30
ref: 1
E18

CLEANER ASSY, AIR

€ 242.00

1378012D00
ref: 2

FILTER

€ 24.50

1379112D00
ref: 3

HOLDER,FILTER

€ 13.00

1379612D00
ref: 4

SPACER

€ 2.50

1374579120
ref: 5

BOLT,WING

€ 2.00

1374012D00
ref: 6

CAP,AIR CLEANER

€ 17.00

0214205164
ref: 7

SCREW

€ 2.50

0940274207
ref: 8

CLAMP

€ 3.50

0940264208
ref: 9

CLAMP

€ 6.00

1385112D00
ref: 10

TUBE,BREATHER

€ 26.00

1385112D10
ref: 10
E18

TUBE,BREATHER

€ 26.00

1377112D00
ref: 11

TUBE,CONNECTING

€ 18.00

1389112D10
ref: 12

TUBE,INLET

€ 16.50

1389112D00
ref: 12
E16, E17

TUBE,INLET

€ 13.50

1388112D00
ref: 13

TUBE,OUTLET

€ 18.00

0940114301
ref: 14

CLIP

€ 2.00

1387012D00
ref: 15

DRAIN TUBE

€ 13.50

1387812D00
ref: 16

CAP,DRAIN

€ 4.50

0911606151
ref: 17

BOLT(6X14)

€ 3.00

0940408403
ref: 18

CLAMP

€ 3.50

0940406401
ref: 19

CLAMP L:35

€ 2.50
