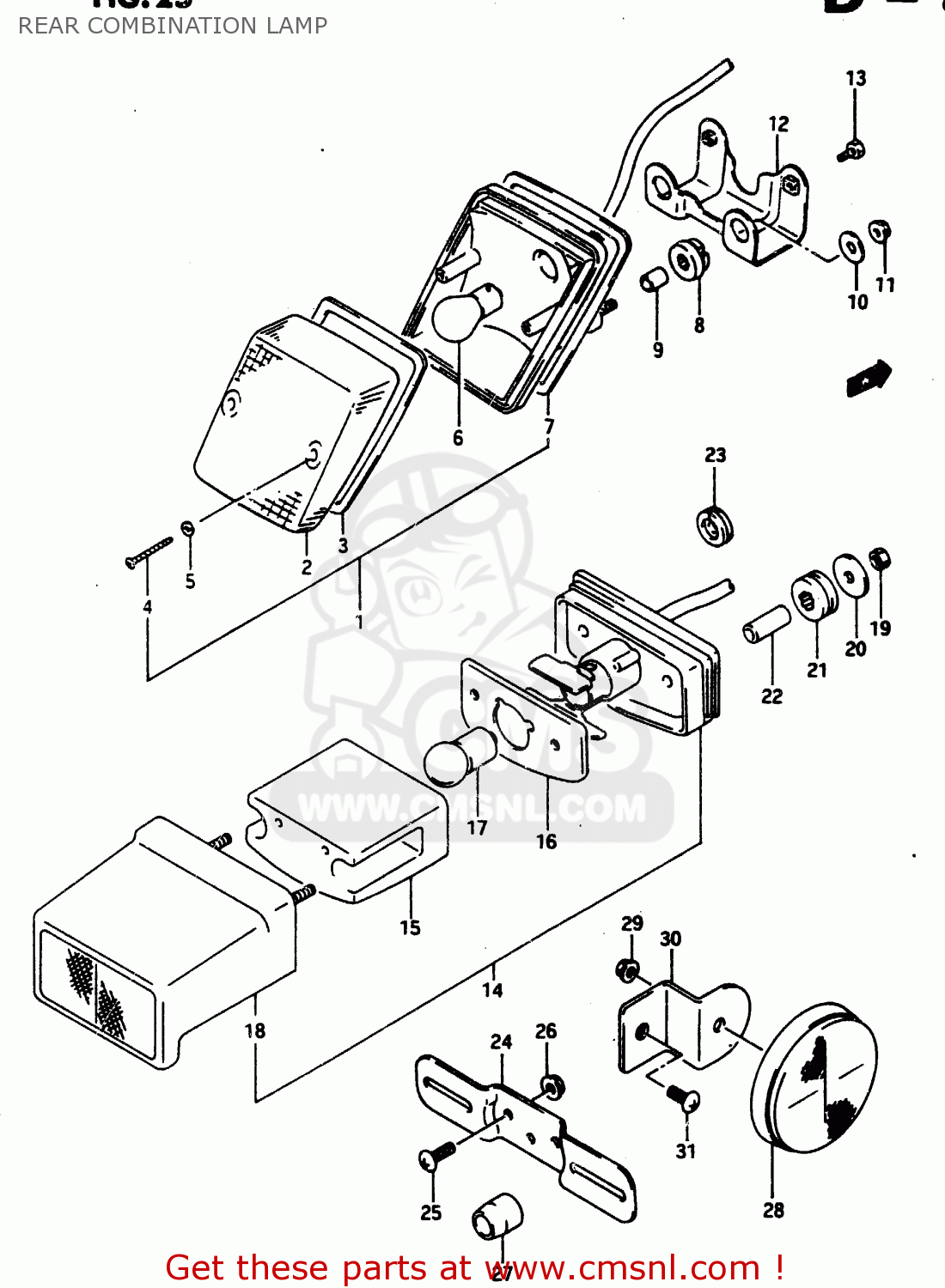

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571014A50
ref: 1

LAMP ASSY, REAR COMBINATION

€ 159.00

2

3571214A00
ref: 2

LENS,RR COMBI

€ 44.00

3

3571314A00
ref: 3

GASKET,REAR COMBINATION LAMP

€ 9.50

4

0321104258
ref: 4

SCREW TAPP.

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

3573314A00
ref: 7

GASKET

€ 0.00

8

0932009018
ref: 8

CUSHION

€ 2.00

9

0918006030
ref: 9

SPACER (6.8X10X10)

€ 2.00

10

0916006027
ref: 10

WASHER (6.5X20X1.2)

€ 2.00

11

0831012066
ref: 11

NUT

€ 2.00

12

3572614A00
ref: 12

BRACKET,REAR COMBINATION LAMP

€ 7.00

13

0113406126
ref: 13

BOLT

€ 1.50

14

3591003020
ref: 14

LAMP ASSY, LICENSE

€ 0.00

15

3591238A20
ref: 15

LENS

€ 13.00

16

3591338A30
ref: 16

GASKET,LICENSE LAMP (NAS)

€ 2.00

17

0947112140
ref: 17

BULB(12V5W,BF150-40160A)

€ 4.00

18

3591703D20
ref: 18

REFLEX REFLECTOR & COVER

€ 43.50

19

0914004002
ref: 19

NUT

€ 2.50

20

0916004018
ref: 20

WASHER(4.3X20X1.4)

€ 2.00

21

0932009009
ref: 21

CUSHION

€ 5.00

22

0918004018
ref: 22

SPACER

€ 0.00

23

0930807013
ref: 23

GROMMET

€ 3.50

24

3592714C00
ref: 24

BRACKET,LICENSE PLATE

€ 11.50

25

0214206164
ref: 25

SCREW

€ 2.50

26

0831616066
ref: 26

NUT

€ 2.50

27

0932008052
ref: 27

CUSHION

€ 0.00

28

3595014A10
ref: 28
E39

REFLECTOR,REFLEX

€ 11.00

29

0831626055
ref: 29
E39

NUT

€ 2.00

30

3597514C00
ref: 30
E39

BRACKET,REAR SIDE,REAR,RIGHT

€ 0.00

30

3597614C00
ref: 30
E39

BRACKET,REAR SIDE,REAR,LEFT

€ 0.00

31

0214206105
ref: 31
E39

SCREW

€ 2.00
