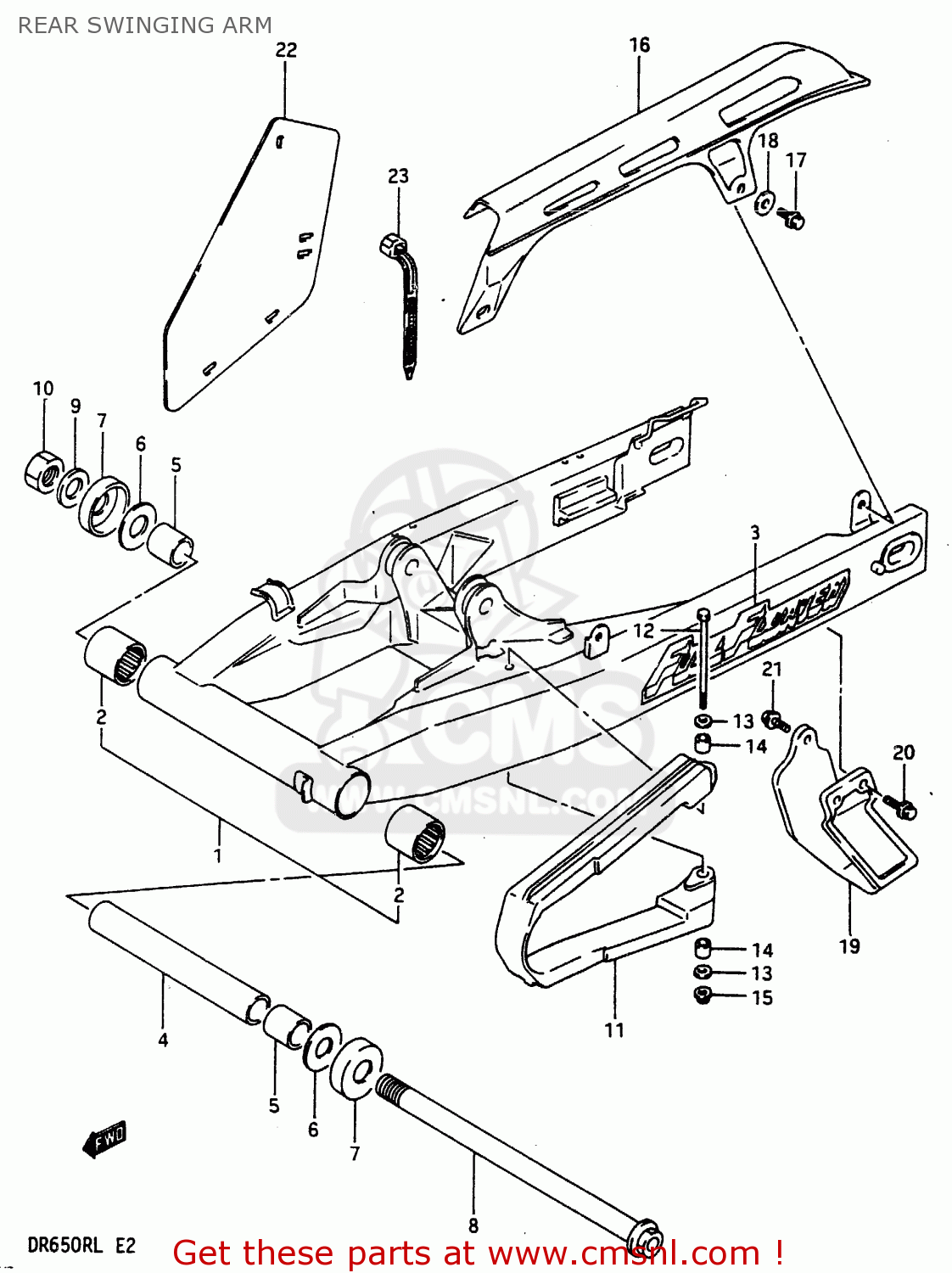

REAR SWINGING ARM

ref

part #

description

quantity

1

6100012D1013L
ref: 1

SWING ARM ASSEMBLY,REAR

€ 476.50

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

6838144B00019
ref: 3

EMBLEM

€ 5.50

4

6128214A00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 15.00

5

6125132410
ref: 5

SPACER,RR SWGARM PIVOT

€ 8.50

6

0821116341
ref: 6

WASHER

€ 2.00

7

6126214A00
ref: 7

SEAL,RR SWGARM PIVOT DUST

€ 7.50

8

6121112D00
ref: 8

SHAFT,REAR SWING ARM

€ 39.00

9

0832211165
ref: 9

WASHER (BLACK)

€ 2.00

10

0831921165
ref: 10

NUT (BLACK)

€ 5.00

11

6127312D00
ref: 11

BUFFER,CHAIN TOUCH DEFLECTOR

€ 40.00

12

6127544B00
ref: 12

BOLT,TOUCH DEFENSE FTG

€ 4.50

13

0916005036
ref: 13

WASHER (5.5X14X1.2)

€ 2.00

14

0918006165
ref: 14

SPACER (6.6X9X6.5)

€ 2.50

15

0831931056
ref: 15

NUT

€ 3.00

16

6131014A00
ref: 16

CASE,CHAIN

€ 49.00

17

0151706105
ref: 17

BOLT

€ 2.50

18

0916906026
ref: 18

WASHER

€ 2.00

19

6134114A03
ref: 19

GUIDE,CHAIN

€ 25.00

20

0151706128
ref: 20

BOLT

€ 2.50

21

0151706167
ref: 21

BOLT 6X16

€ 1.50

22

6139114A00
ref: 22
E16

GUARD, CHAIN

€ 0.00

23

0940714403
ref: 23
E16

CLAMP(L:125)

€ 2.50
