HEADLAMP HOUSING

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

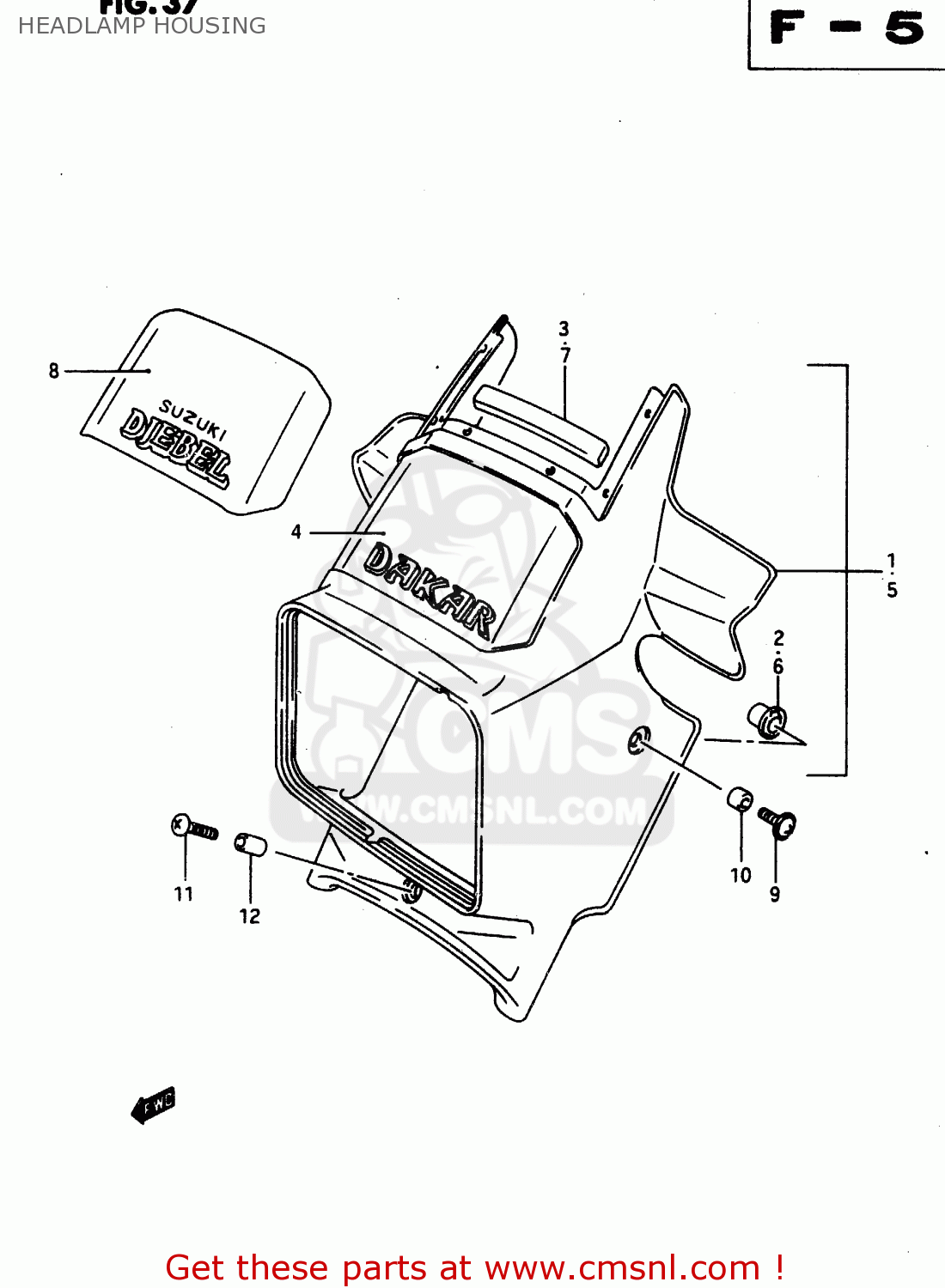

Headlamp housing diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

5180015A6019X
ref: 1

COVER, HEADLAMP (WHITE)

€ 121.00

5180015A6014L
ref: 1

COVER, HEADLAMP (WHITE)

€ 121.00

5182115A0030H
ref: 2

BUSHING,HEADLAMP COVER,SIDE

€ 4.50

5182115A0014L
ref: 2

BUSH, SIDE (WHITE)

€ 4.50

5182715A00
ref: 3

CUSHION,HEADLAMP COVER

€ 8.00

6872514A303UE
ref: 4
FOR 19X

TAPE

€ 21.00

6872514A303UD
ref: 4
FOR 14L

TAPE

€ 21.00

5180015A5019X
ref: 5
E4, E34, E53

COVER, HEADLAMP (WHITE)

€ 121.00

5180015A5014L
ref: 5
E4, E34, E53

COVER, HEADLAMP (WHITE)

€ 121.00

5182115A0030H
ref: 6
E4, E34, E53

BUSHING,HEADLAMP COVER,SIDE

€ 4.50

5182115A0014L
ref: 6
E4, E34, E53

BUSH, SIDE (WHITE)

€ 4.50

5182715A00
ref: 7
E4, E34, E53

CUSHION,HEADLAMP COVER

€ 8.00

6872514A203UE
ref: 8
E4, E34, E53, FOR 19

TAPE

€ 22.50

6872514A203UD
ref: 8
E4, E34, E53, FOR 14

TAPE

€ 26.50

0913606061
ref: 9

SCREW(6X16)

€ 3.00

0918006152
ref: 10

SPACER

€ 3.00

0214206405
ref: 11

SCREW, LOWER

€ 2.00

0918006170
ref: 12

SPACER (6.1X9X31.5)

€ 4.00
