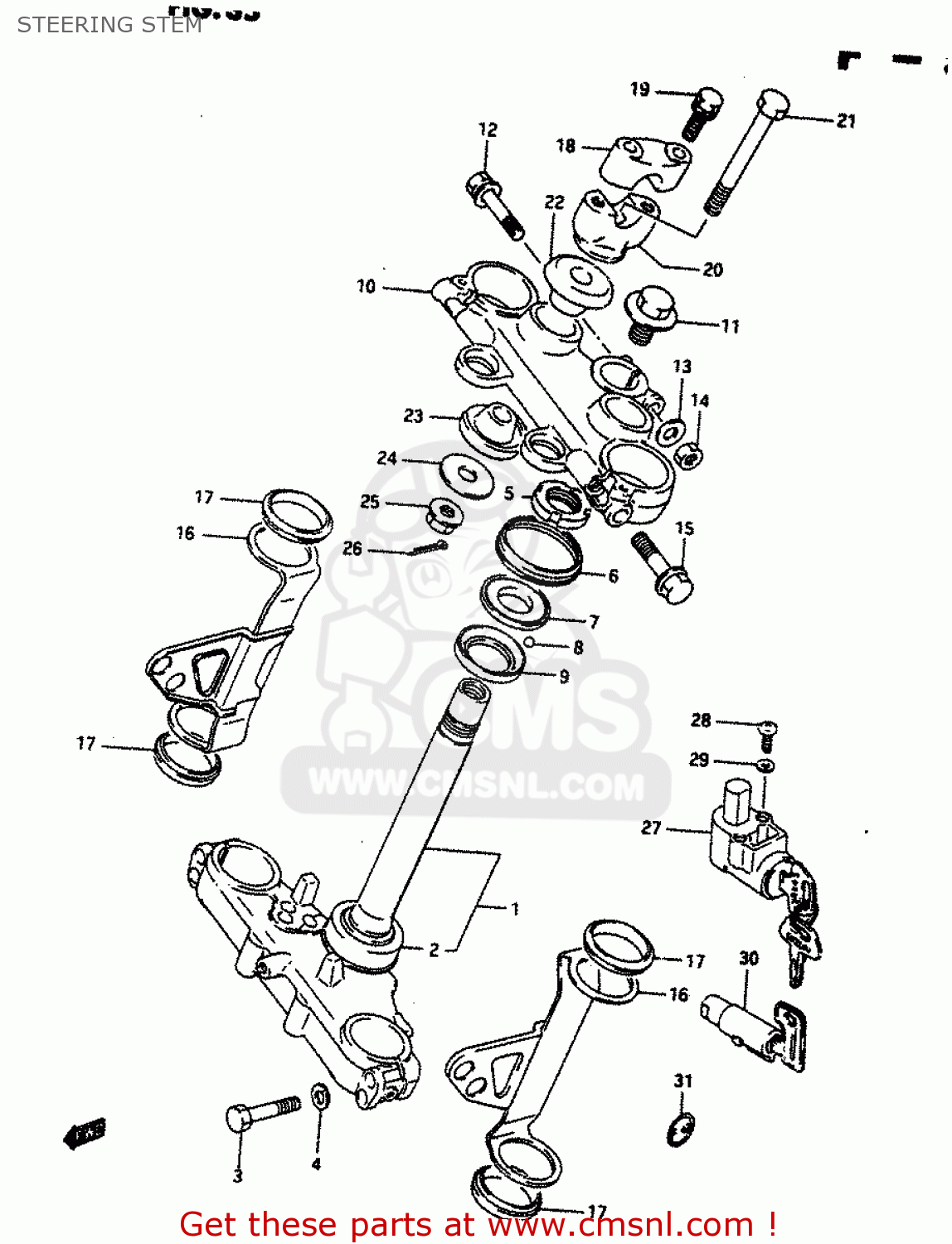

STEERING STEM

ref

part #

description

quantity

1

5141014A20
ref: 1

STEM,STEERING

€ 473.50

1

5141014A30
ref: 1
E15, E17, E22,

STEM,STEERING

€ 473.50

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0110708455
ref: 3

BOLT

€ 2.50

4

0832131084
ref: 4

LOCK WASHER

€ 2.50

5

5163140200
ref: 5

NUT,STEERING STEM

€ 12.00

6

5164340200
ref: 6

SEAL,STEERING UPR DUST

€ 7.50

7

5162140200
ref: 7

RACE,STEERING,OUTER,UPPER

€ 17.00

8

0611108003
ref: 8

BALL

€ 1.50

9

5161140201
ref: 9

RACE,STEERING INNER (SUJ)

€ 8.50

10

5131114A20
ref: 10

HEAD,STEERING STEM

€ 215.50

11

5135314A00
ref: 11

BOLT,STEERING STEM

€ 9.50

12

0112708505
ref: 12

BOLT

€ 2.50

13

0832211084
ref: 13

WASHER

€ 1.50

14

0831012085
ref: 14

NUT ,8MM

€ 1.50

15

0151710455
ref: 15

BOLT

€ 3.00

16

5153014A20
ref: 16

COVER,FORK,RIGHT

€ 40.50

16

5154014A20
ref: 16

COVER,FORK,LEFT

€ 40.50

17

5155314A20
ref: 17

CUSHION,HEADLAMP BRACKET

€ 8.50

18

5621127210019
ref: 18

HOLDER,HANDLEBAR

€ 12.00

19

0114708355
ref: 19

BOLT

€ 2.00

20

5622114330291
ref: 20

HOLDER,HANDLE LWR

€ 25.50

21

5132114200
ref: 21

BOLT,HANDLE HOLDER

€ 6.50

22

5624114A00
ref: 22

DAMPER,UPR

€ 25.00

23

5624214200
ref: 23

DAMPER,LWR

€ 21.50

24

5135640400
ref: 24

WASHER,HANDLEBAR HOLDER

€ 2.00

25

0831931107
ref: 25

NUT

€ 3.00

26

0411120308
ref: 26

COTTER PIN

€ 1.00

27

5190030831
ref: 27

LOCK ASSY,STEERING

€ 30.00

28

0211205128
ref: 28

SCREW

€ 2.50

29

0832121057
ref: 29

LOCK WASHER

€ 2.00

30

5190030901
ref: 30
E15, E17, E22

LOCK ASSY,STEERING(NEIMAN)

€ 168.50

31

5191545000
ref: 31
E17

LABEL,STEERING LOCK

€ 1.50
