CARBURETOR

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

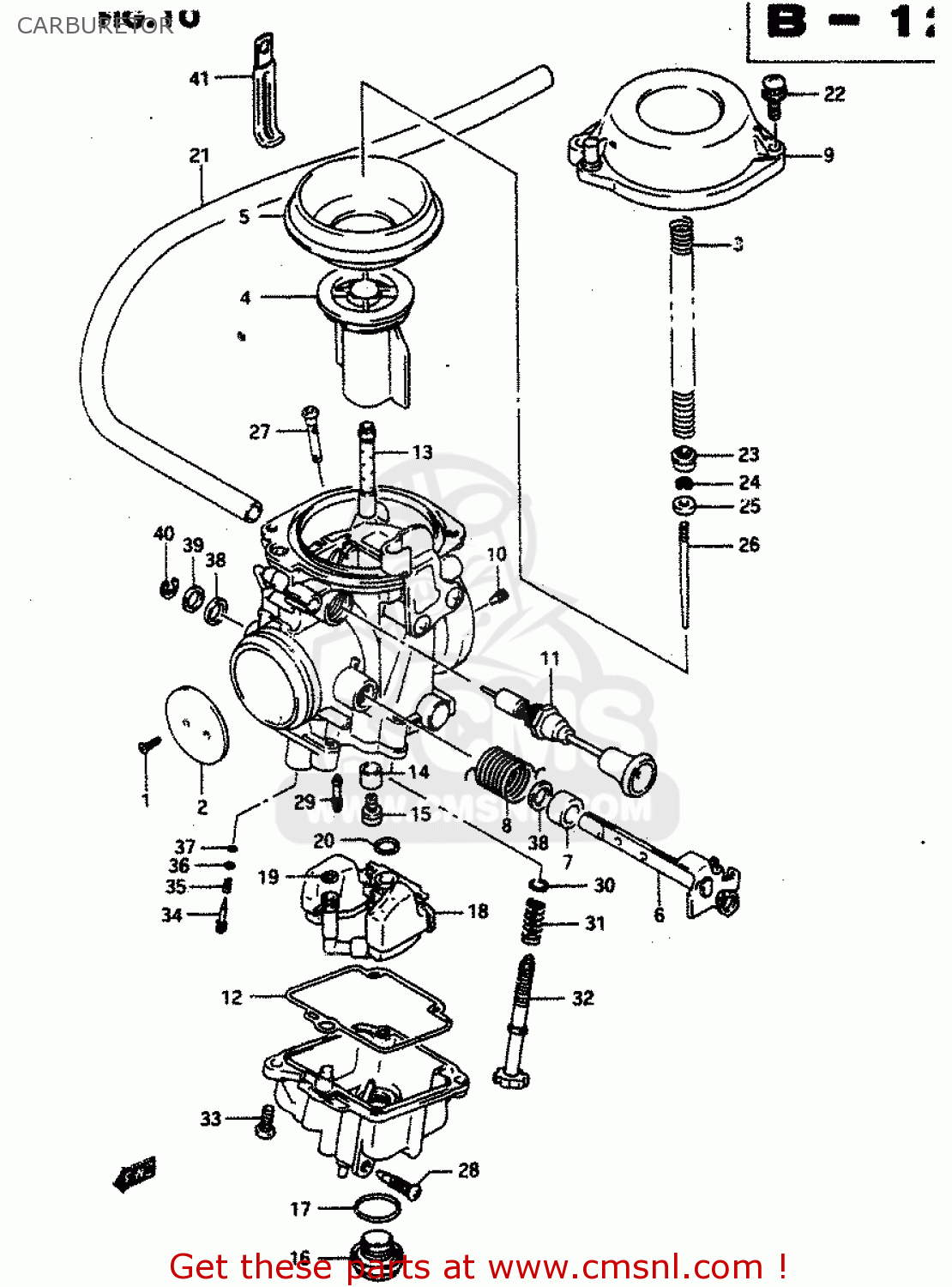

Carburetor diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

CARBURETOR DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
CARBURETOR DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
CARBURETOR DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
prices are in EUR
ref
part #
description
quantity
0
1320015A70
ref: 0
CARBURETOR ASSY
€ 566.00
0
1320015A30
ref: 0
E16, E17
CARBURETOR ASSY
€ 612.50
0
1320015A60
ref: 0
E18
CARBURETOR ASSY
€ 0.00
0
1320015A40
ref: 0
E22
CARBURETOR ASSY
€ 0.00
0
1320014A90
ref: 0
E24, E39
CARBURETOR ASSY
€ 0.00
0
1320015A50
ref: 0
DR650RUL E22
CARBURETOR ASSY
€ 0.00
1
1360407D00
ref: 1
SCREW
€ 3.50
2
1355112D00
ref: 2
VALVE,THROTTLE
€ 21.00
3
1341712D00
ref: 3
SPRING
1341712D00
€ 6.50
4
1350112D00
ref: 4
VALVE,PISTON
1350112D00
€ 71.50
5
1350707D00
ref: 5
DIAPHRAGM
1350707D00
€ 24.50
6
1355012D00
ref: 6
SHAFT ASSEMBLY,THROTTLE
€ 31.00
7
1355705A20
ref: 7
RING
€ 3.00
8
1357312D00
ref: 8
SPRING
€ 6.00
9
1350212D00
ref: 9
COVER,DIAPHRAGM
1350212D00
€ 38.50
9
1350212D10
ref: 9
E18/DR650RUL E22
COVER,DIAPHRAGM
1350212D10
€ 29.00
10
0949328007
ref: 10
JET,AIR
€ 15.50
11
1341115A30
ref: 11
PLUNGER ASSY
1341115A30
€ 50.00
12
1325844B00
ref: 12
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
13
0949400678
ref: 13
JET,NEEDLE
0949400678
€ 33.00
13
0949400685
ref: 13
E18
JET NEEDLE
€ 33.00
14
1333107D00
ref: 14
RING
1333107D00
€ 4.50
15
0949128015
ref: 15
JET,MAIN(142.5)
0949128015
€ 5.50
15
0949129004
ref: 15
E16, E17
JET, MAIN (147.5)
€ 14.50
15
0949129012
ref: 15
E18
JET,MAIN (147.5)
0949129012
€ 14.50
16
1324732210
ref: 16
SCREW,GUIDE
1324732210
€ 13.00
17
1324941310
ref: 17
O RING,DRAIN PLUG
1324941310
€ 5.00
18
1325044C00
ref: 18
FLOAT/NEEDLE VALVE ASSEMBLY
€ 124.50
19
1337446710
ref: 19
O RING
1337446710
€ 4.50
20
1337444080
ref: 20
O-RING,NEEDLE VALVE
1337444080
€ 6.00
21
1368315A30
ref: 21
HOSE
€ 26.00
22
1360234390
ref: 22
SCREW
1360234390
€ 2.50
23
1333112D00
ref: 23
RING
1333112D00
€ 4.50
24
1339431210
ref: 24
CLIP,NEEDLE
1339431210
€ 3.50
25
1338707D00
ref: 25
RING
1338707D00
€ 4.50
26
1338315A30
ref: 26
NEEDLE,JET
1338315A30
€ 14.00
26
1338315A60
ref: 26
E18
NEEDLE, JET (6F87-3)
1338315A60
€ 20.00
26
1338315A50
ref: 26
DR650RUL E22
NEEDLE, JET (6J8-3)
1338315A50
€ 14.00
27
1323612C00
ref: 27
FILTER
1323612C00
€ 5.00
28
1324702340
ref: 28
PLUG,DRAIN
1324702340
€ 5.50
29
0949250021
ref: 29
JET, PILOT (50)
€ 14.50
29
0949247013
ref: 29
E18, E22, E24, E39,
JET,PILOT(47.5)
0949247013
€ 12.50
30
1342738300
ref: 30
WASHER
1342738300
€ 1.50
31
1337560A00
ref: 31
SPRING
1337560A00
€ 4.00
32
1326728A00
ref: 32
SCREW
€ 22.50
33
1360205129
ref: 33
SCREW
€ 2.50
34
1327947070
ref: 34
E2, E4, E15, E16, E1
SCREW,PILOT
1327947070
€ 11.50
34
1327947070
ref: 34
E22, E24, E39, EXCEP
SCREW,PILOT
1327947070
€ 11.50
35
1326847070
ref: 35
EXCEPT E18
SPRING
1326847070
€ 5.00
36
1329129900
ref: 36
EXCEPT E18
WASHER
1329129900
€ 2.00
37
1329529900
ref: 37
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
38
1355644B00
ref: 38
SEAL
1355644B00
€ 3.50
39
1355747070
ref: 39
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
40
1361744080
ref: 40
E RING
1361744080
€ 3.50
41
0940406402
ref: 41
CLAMP
€ 2.50
