BALANCER CHAIN

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

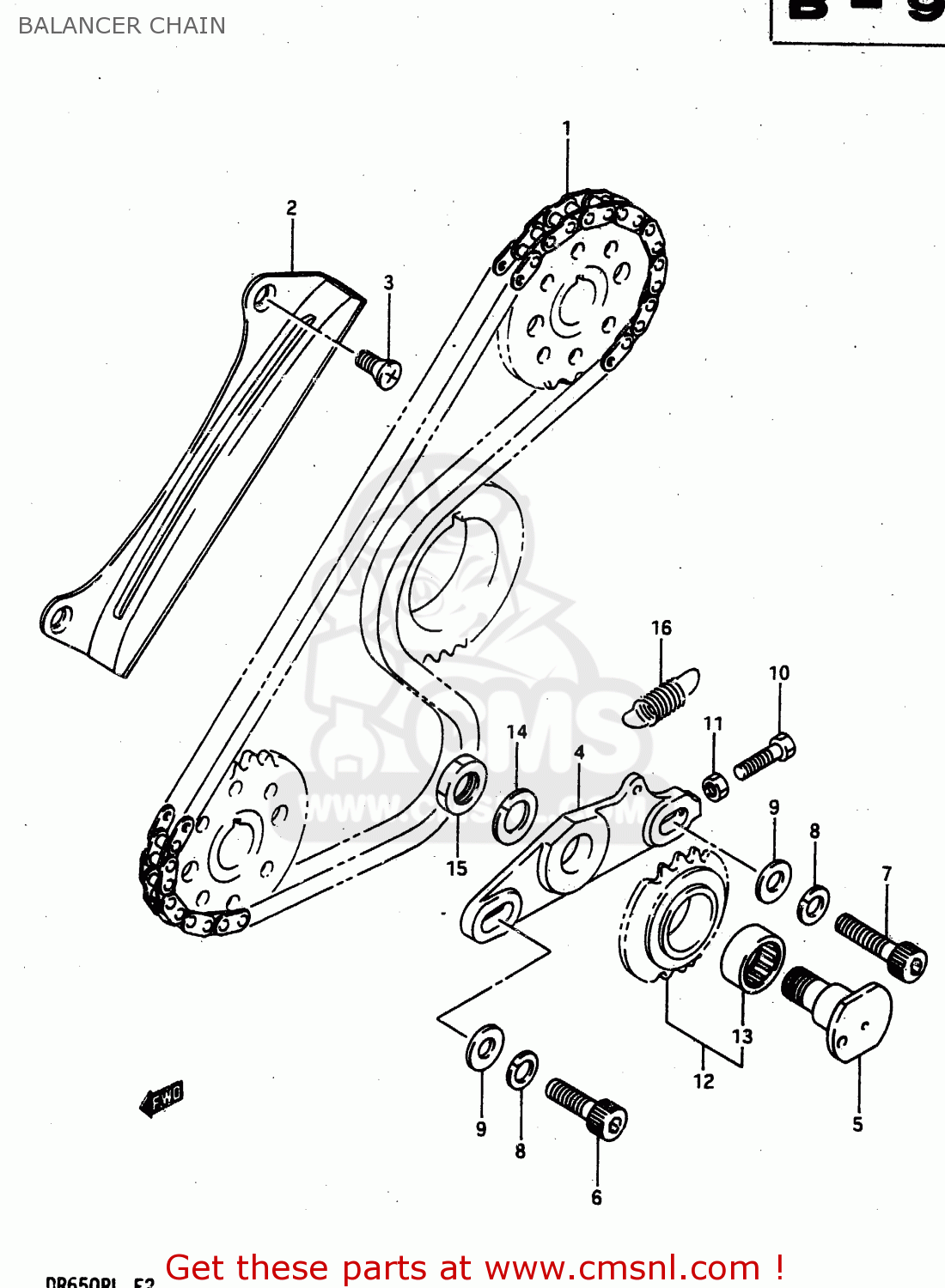

Balancer chain diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

1267037441
ref: 1

GOVERNOR ASSEMBLY,EXHAUST

€ 111.50

1269512D00
ref: 2

GUIDE,BALANCER CHAIN

€ 20.00

0212206166
ref: 3

SCREW M6X1X16

€ 2.00

1268112D00
ref: 4

BRACKET,BALANCER CHAIN

€ 48.50

1268214A01
ref: 5

SHAFT,BALANCER CHAIN TENSIONER

€ 29.00

0910608005
ref: 6

BOLT(8X22)

€ 2.00

0711008305
ref: 7

BOLT, REAR (8X30)

€ 3.00

0832121088
ref: 8

LOCK WASHER

€ 2.00

0832221088
ref: 9

WASHER

€ 2.00

0910005006
ref: 10

BOLT 5X20

€ 1.50

0831022058
ref: 11

NUT

€ 2.50

1268544B00
ref: 12

SPRKT,BALANCER CHAIN TENSIONER

€ 75.00

0926317007
ref: 13

BEARING(17X23X12)

€ 13.00

0832121128
ref: 14

WASHER,LOCK 12

€ 2.50

0914012021
ref: 15

NUT

€ 2.50

0944310022
ref: 16

SPRING

€ 4.00

BALANCER CHAIN

all assemblies
