BATTERY

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

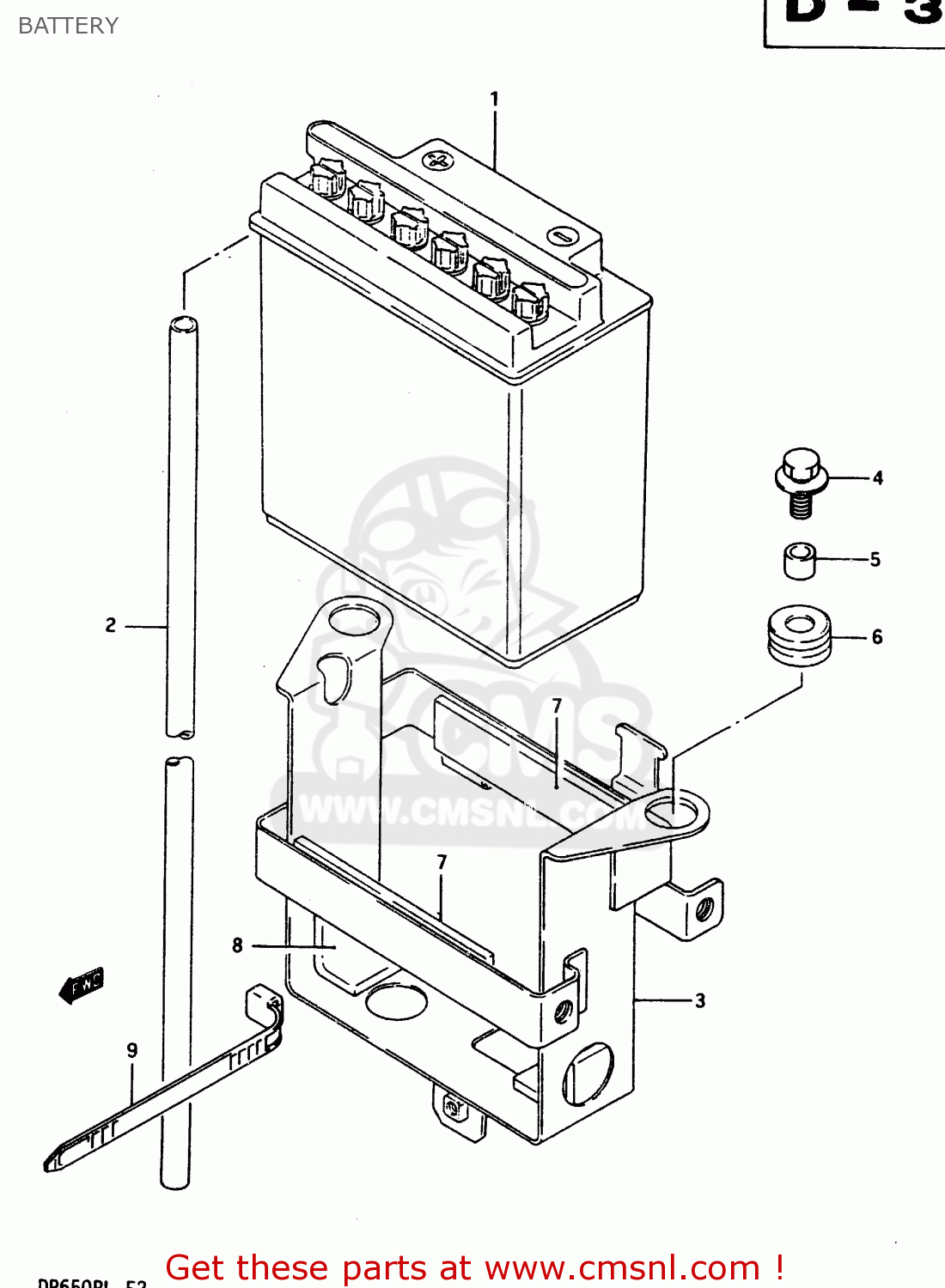

Battery diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

3361018010
ref: 1

BATTERY ASSEMBLY (12V)

€ 62.00

3368038000
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

4154014C60
ref: 3

HOLDER,BATTERY

€ 2.50

0911606056
ref: 4

BOLT

€ 2.00

0918006038
ref: 5

SPACER(6.1X9X7.5)

€ 2.00

0932008007
ref: 6

CUSHION

€ 4.00

3365229100
ref: 7

PROTECTOR,20X9

€ 5.00

3365234000
ref: 8

PROTECTOR(30X80X2)

€ 4.50

0940714403
ref: 9

CLAMP(L:125)

€ 2.50

all assemblies
