WIRING HARNESS

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

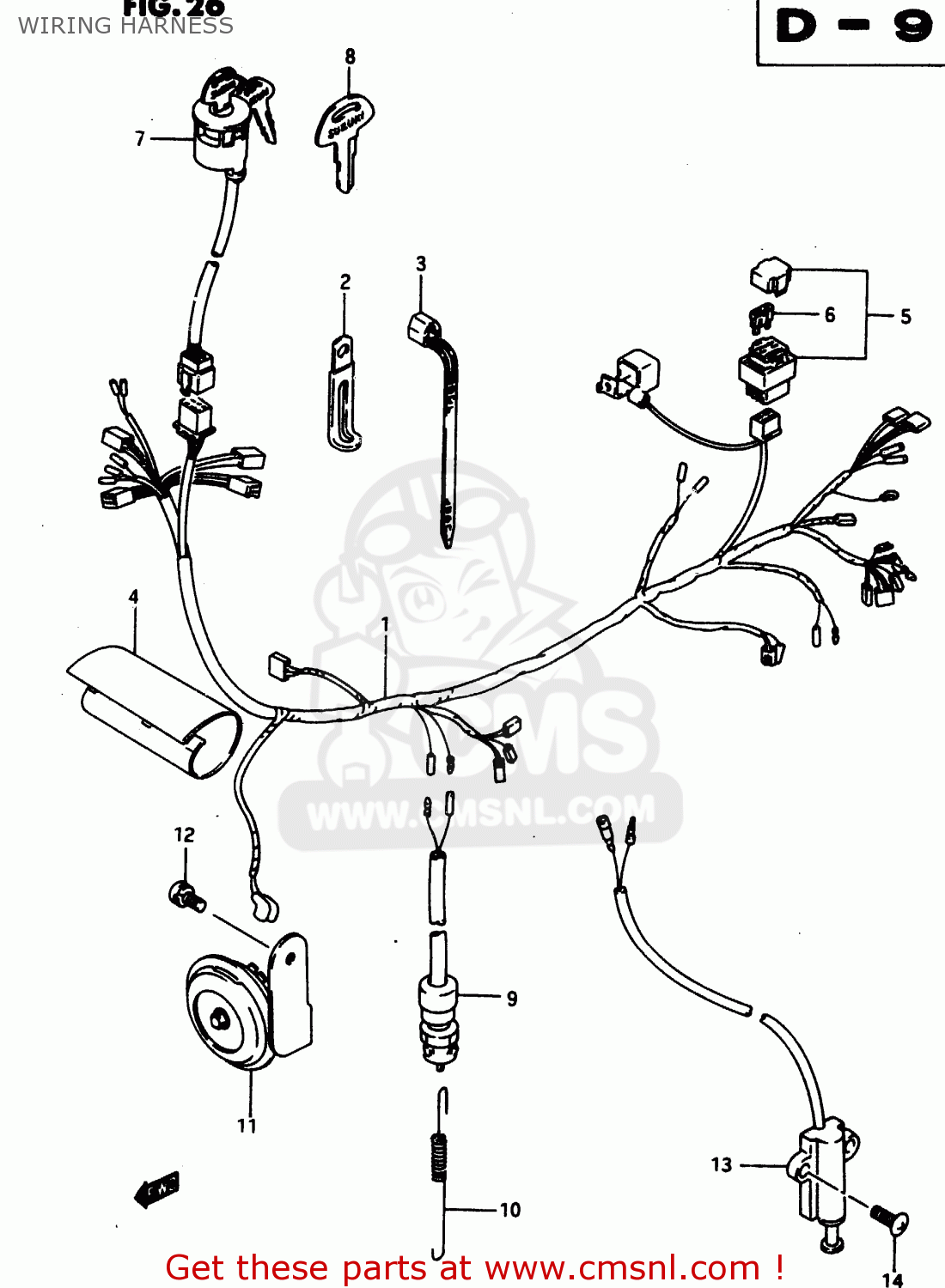

Wiring harness diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

3661014A70
ref: 1

HARNESS,WIRING

€ 216.00

0940406401
ref: 2

CLAMP L:35

€ 2.50

0940408404
ref: 2

CLAMP

€ 3.00

0940714403
ref: 3

CLAMP(L:125)

€ 2.50

0940718402
ref: 3

CLAMP(L:165)

€ 2.50

0940725401
ref: 3

CLAMP(L:235)

€ 4.00

3661804A00
ref: 4

COVER,WIRING HARNESS

€ 12.00

3674004701
ref: 5

BOX ASSY,FUSE

€ 16.00

0948115101
ref: 6

FUSE(15A)

€ 1.50

3711001A03
ref: 7

SWITCH ASSEMBLY,IGNITION

€ 64.50

3714502400
ref: 8
OPT

KEY,BLANK

€ 13.00

3774014A00
ref: 9

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

0944306079
ref: 10

SPRING

€ 4.00

3850014A10
ref: 11

HORN ASSY

€ 42.00

3850014A00
ref: 11
E4, E18, E34

HORN ASSY

€ 53.50

3850014A20
ref: 11
E39, E53

HORN ASSEMBLY

€ 48.00

0211236125
ref: 12

SCREW

€ 2.00

3784014A21
ref: 13

SWITCH ASSY,SIDE STAND WARNING

€ 80.00

0211206205
ref: 14

SCREW

€ 2.00

WIRING HARNESS

all assemblies
