FUEL TANK

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

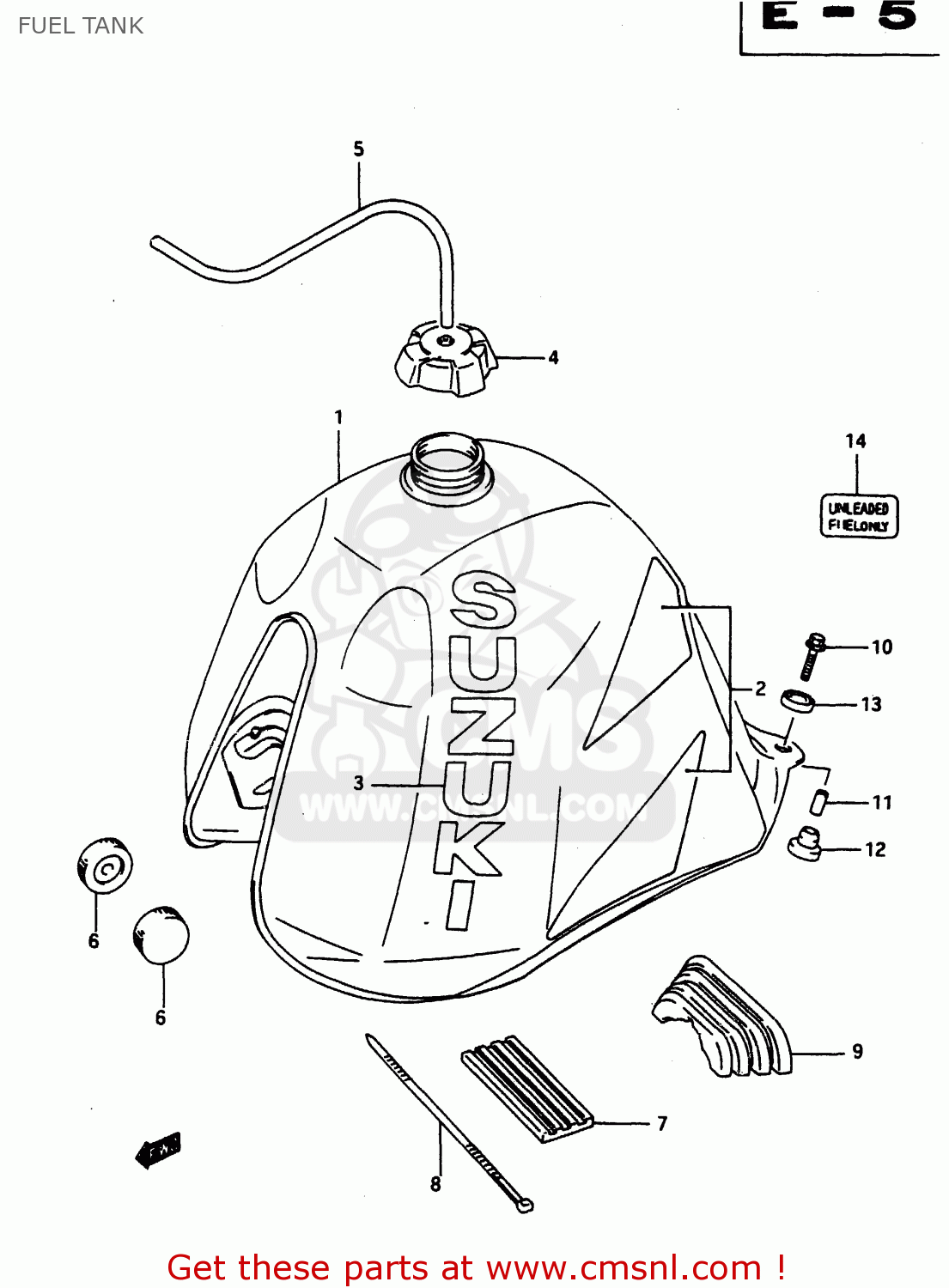

Fuel tank diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

4910015A403UA
ref: 1

TANK ASSY, FUEL

€ 747.50

4910015A503UA
ref: 1
E22

TANK ASSY, FUEL

€ 747.50

4910015A403UB
ref: 1

TANK ASSY, FUEL

€ 747.50

4910015A503UB
ref: 1
E22

TANK ASSY, FUEL

€ 747.50

6811015A3027J
ref: 2
FOR 3UA

TAPE SET, FUEL TANK

€ 33.00

6811015A3014L
ref: 2

TAPE SET, FUEL TANK

€ 0.00

6812014A000NE
ref: 3

EMBLEM SET, FUEL TANK

€ 27.50

6812014A0014L
ref: 3

EMBLEM SET, FUEL TANK

€ 23.50

4420044B00
ref: 4

CAP ASSY,FUEL TANK

€ 43.00

0935250823300
ref: 5

HOSE

€ 13.00

0932910016
ref: 6

CUSHION

€ 3.00

4454114500
ref: 7

CUSHION,FUEL TANK UPR FR

€ 4.50

0940720401
ref: 8

CLAMP

€ 4.50

4454214A00
ref: 9

CUSHION,FUEL TANK RR

€ 8.50

0151706356
ref: 10

BOLT

€ 2.50

0918006072
ref: 11

SPACER

€ 2.00

0932010020
ref: 12

CUSHION

€ 4.00

0932014013
ref: 13

CUSHION

€ 3.00

8693273060
ref: 14
E24

LABEL,FUEL CAUTION

€ 4.00
