ELECTRICAL

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

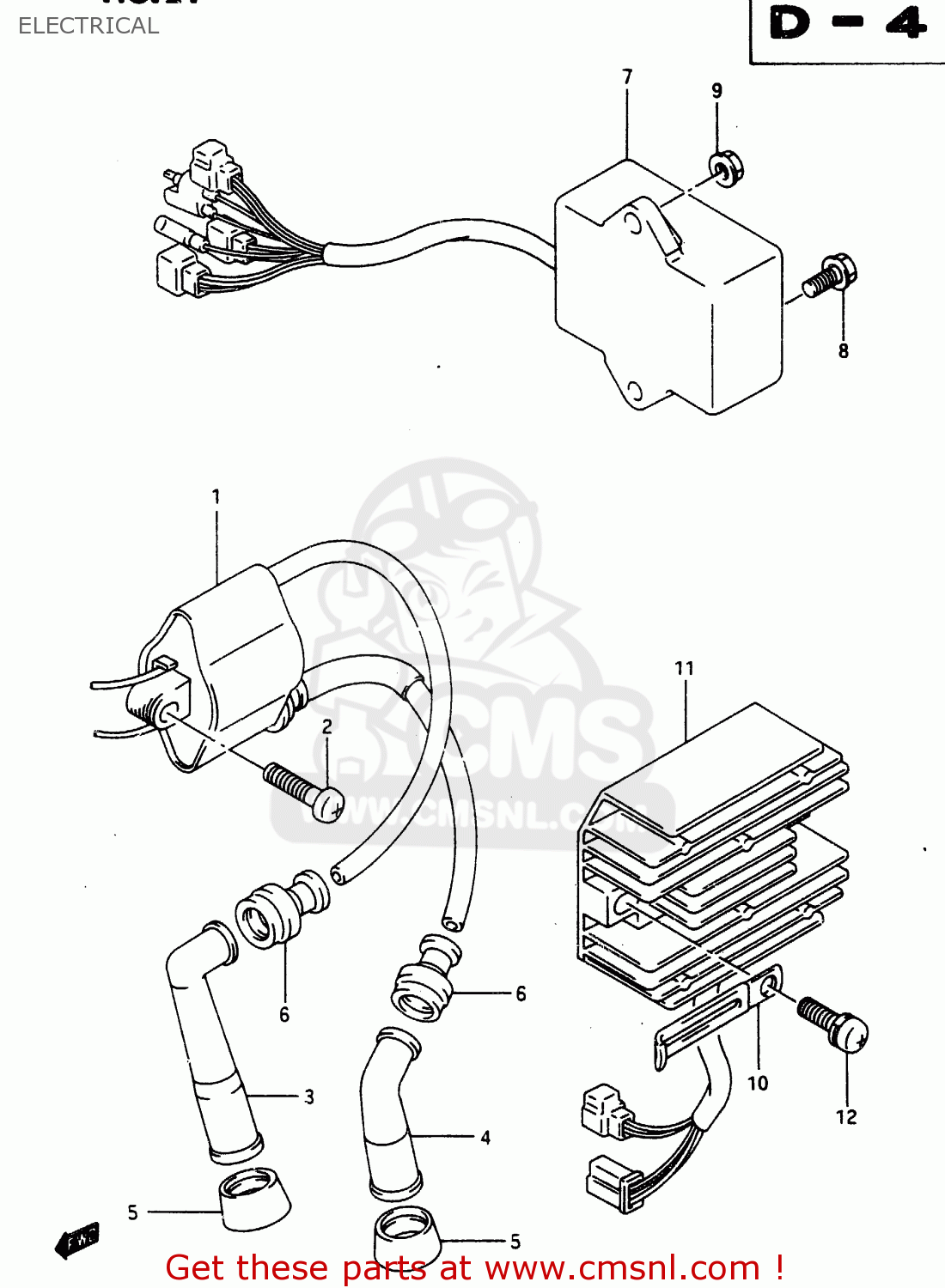

Electrical diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

3341012D00
ref: 1

COIL ASSY,IGNITION

€ 161.50

0211216256
ref: 2

SCREW

€ 1.50

3351045010
ref: 3

CAP ASSY,SPARK PLUG

€ 23.00

3351043010
ref: 4

CAP,SPARK PLUG

€ 11.50

3354124510
ref: 5

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 6

SEAL,HIGH TENSION CORD

€ 4.50

3290012D00
ref: 7

CDI UNIT

€ 352.50

0913606047
ref: 8

SCREW (6X16) WITH WASHER

€ 1.50

0915906017
ref: 9

NUT

€ 2.50

0940406402
ref: 10

CLAMP

€ 2.50

3280030B01
ref: 11

RECTIFIER ASSY

€ 368.00

0211236206
ref: 12

SCREW

€ 2.00

all assemblies
