OIL PUMP

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

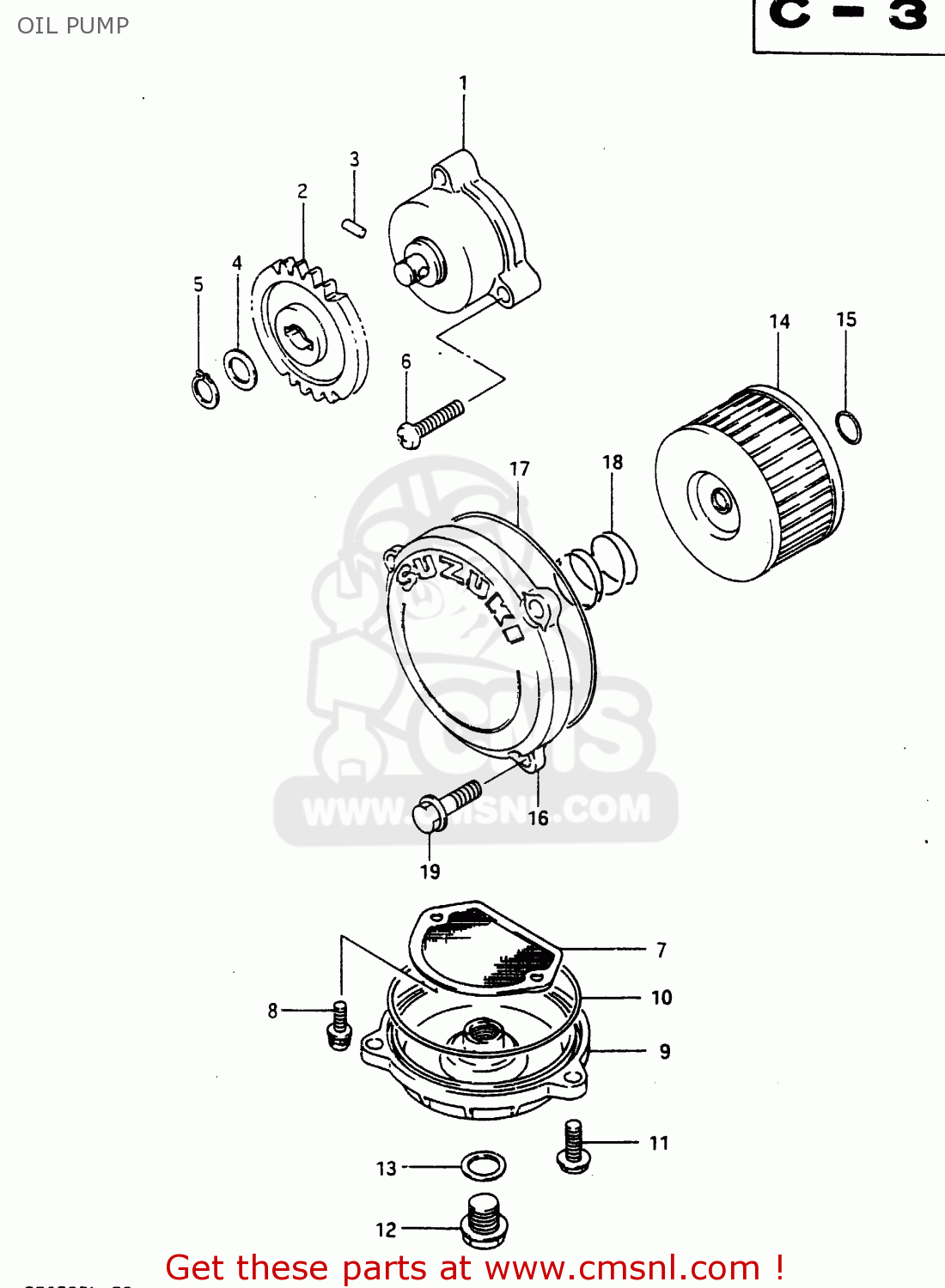

Oil pump diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

1640012D00
ref: 1

PUMP ASSY,ENGINE OIL

€ 156.50

1633112D00
ref: 2

GEAR,OIL PUMP DRIVEN

€ 23.50

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

0822110185
ref: 4

SHIM

€ 2.00

0833131109
ref: 5

CIRCLIP

€ 2.00

0211206258
ref: 6

SCREW

€ 2.00

1652014A00
ref: 7

STRAINER,ENGINE OIL

€ 8.50

0211275126
ref: 8

SCREW

€ 2.50

1652337402
ref: 9

CAP,OIL STRAINER

€ 56.00

0928082001
ref: 10

O RING(D:2.4,ID:85)

€ 6.50

0151706207
ref: 11

BOLT 6X20

€ 2.50

0924714001
ref: 12

PLUG

€ 5.00

0916814004
ref: 13

GASKET(14X19.2X2) (NAS)

€ 2.50

1651037440
ref: 14

FILTER,ENGINE OIL

€ 7.50

0928016005
ref: 15

O RING(D:2.4,ID:15.8)

€ 1.50

1651212D00
ref: 16

CAP,OIL FILTER

€ 17.50

0928072001
ref: 17

O RING(D:2.4,ID:73)

€ 5.00

0944021004
ref: 18

SPRING

€ 13.00

0154706165
ref: 19

BOLT

€ 2.50
