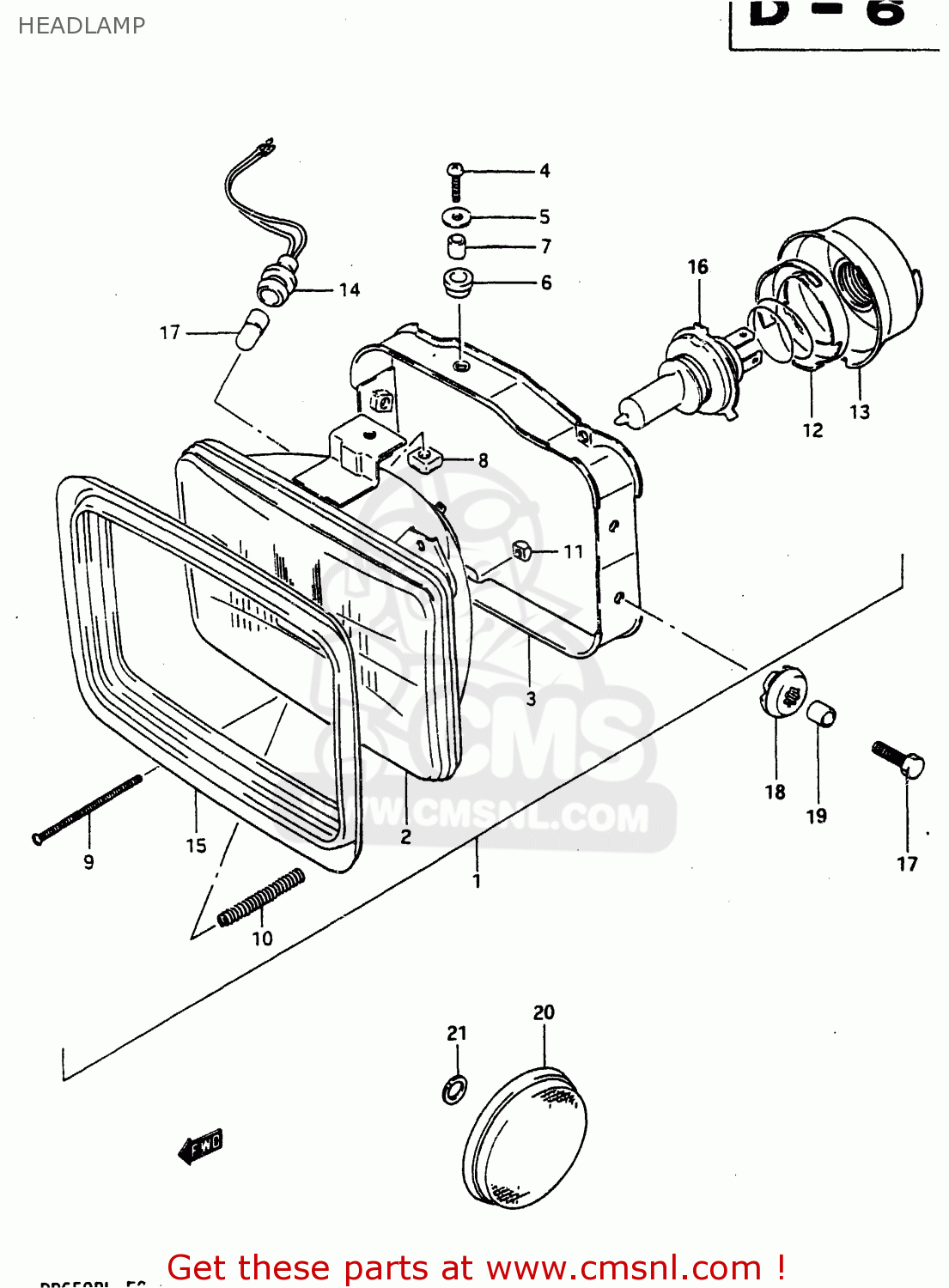

HEADLAMP

ref

part #

description

quantity

1

3510014C00999
ref: 1

HEADLAMP ASSY

€ 176.50

1

3510014C50999
ref: 1
E4, E15, E16, E17, E

HEADLAMP ASSY

€ 175.50

1

3510014C30999
ref: 1
E24

HEADLAMP ASSEMBLY

€ 180.50

2

3512114C00
ref: 2

UNIT

€ 102.00

2

3512114C50
ref: 2
E4, E15, E16, E17, E

UNIT

€ 102.00

2

3512114C30
ref: 2
E24

LAMP UNIT

€ 90.00

3

3514114A00
ref: 3

HOUSING

€ 31.00

4

3513845230
ref: 4

WASHER

€ 2.00

5

3513945230
ref: 5

CUSHION

€ 1.50

6

3513314A00
ref: 6

SPACER

€ 3.50

7

3513545900
ref: 7

NUT

€ 2.50

8

3515149200
ref: 8

SCREW,HEADLAMP ADJUST

€ 4.00

9

3515449200
ref: 9

SPRING

€ 3.50

10

3513545600
ref: 10

NUT

€ 3.00

11

3513601A00
ref: 11

HOLDER,BULB

€ 6.00

12

3517301440
ref: 12

COVER,SOCKET

€ 10.00

13

3611845900
ref: 13

SOCKET,PARKING

€ 13.00

14

3512914C00
ref: 14

SHADE

€ 20.00

15

0947112060
ref: 15

BULB(12V60/55W,H4)

€ 8.00

15

0947112061
ref: 15
E4, EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

16

0947112001
ref: 16
E2

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

16

0947112063
ref: 16
E4, E15, E16, E17, E

BULB(12V4W)

€ 6.00

17

0911606011
ref: 17

BOLT 6X20

€ 2.00

18

0932009009
ref: 18

CUSHION

€ 5.00

19

0918006114
ref: 19

SPACER (6.1X9X10)

€ 3.00

20

3595014A00
ref: 20
E39

REFLECTOR,REFLEX FR

€ 15.00

21

0832121057
ref: 21
E39

LOCK WASHER

€ 2.00

all assemblies
