RIGHT HANDLE SWITCH

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

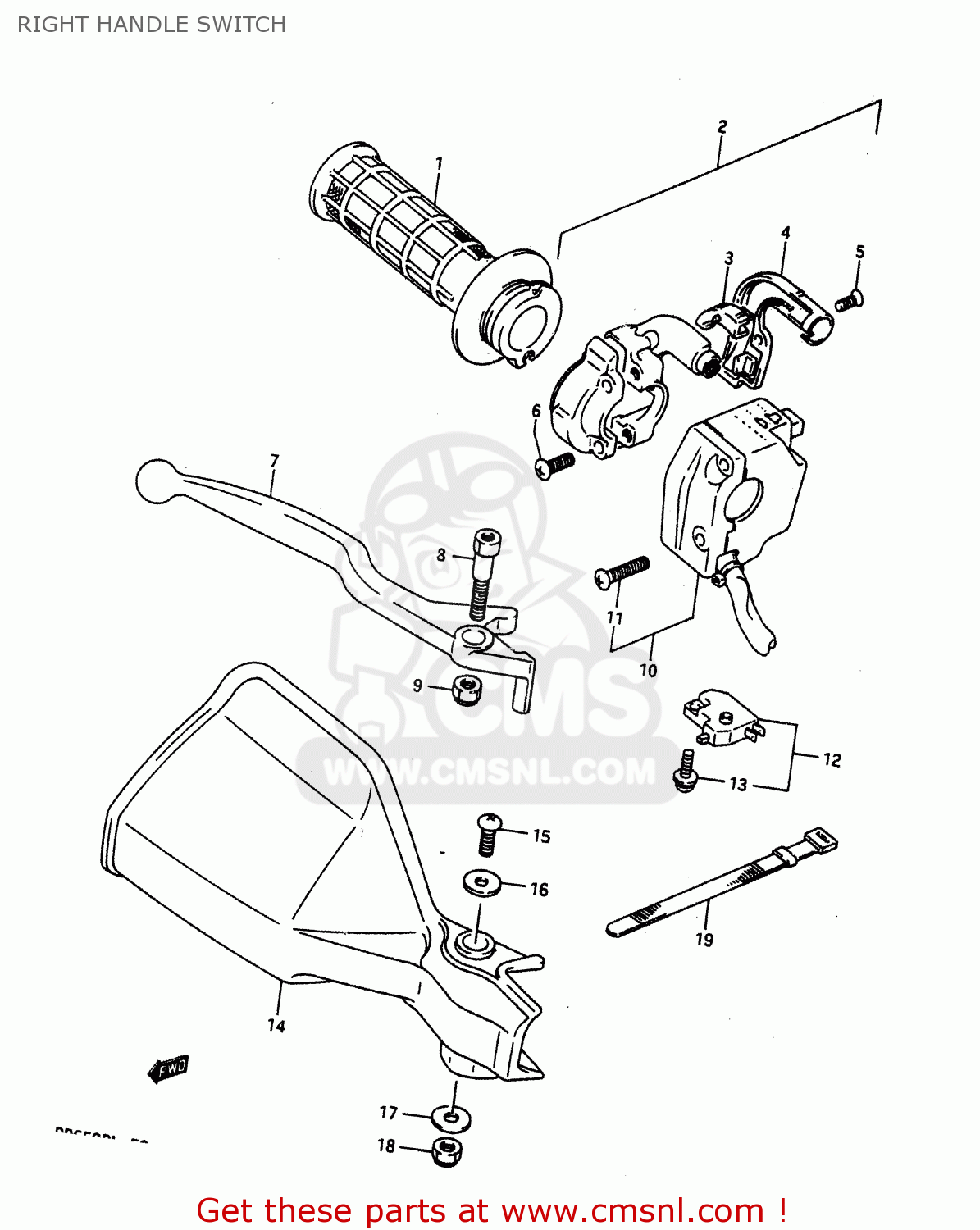

Right handle switch diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

5711012D00
ref: 1

GRIP,THROTTLE

€ 26.50

5710028B00
ref: 2

CASE ASSEMBLY,THROTTLE

€ 34.00

5712213600
ref: 3

GUIDE PIECE,THROTTLE

€ 7.50

5712913601
ref: 4

COVER,THROTTLE CASE

€ 7.00

0213204105
ref: 5

SCREW 4X10

€ 2.50

0211205164
ref: 6

SCREW

€ 2.00

5742113001
ref: 7

LEVER,BRAKE

€ 18.00

5743105D00
ref: 8

BOLT,BRAKE LEVER PIVOT

€ 9.00

0831921068
ref: 9

NUT 6MM

€ 2.00

3720014A00
ref: 10

SWITCH ASSY, HANDLE RH

€ 101.50

0912505066
ref: 11

SCREW(5X25)

€ 2.00

5746017C00
ref: 12

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 13

SCREW

€ 1.50

5734105D0030H
ref: 14
FOR 3UA

COVER,KNUCKLE,RIGHT

€ 18.00

5734105D0014L
ref: 14
FOR 3UB

COVER, KNUCKLE RH (WHITE)

€ 18.00

0912505042
ref: 15

SCREW(5X10)

€ 2.50

0916005017
ref: 16

WASHER (5.5X16X1.2)

€ 2.50

0916006042
ref: 17

WASHER (6.5X17X1.6)

€ 2.00

0831921068
ref: 18

NUT 6MM

€ 2.00

0940712402
ref: 19

CLAMP(L:120)

€ 3.00
