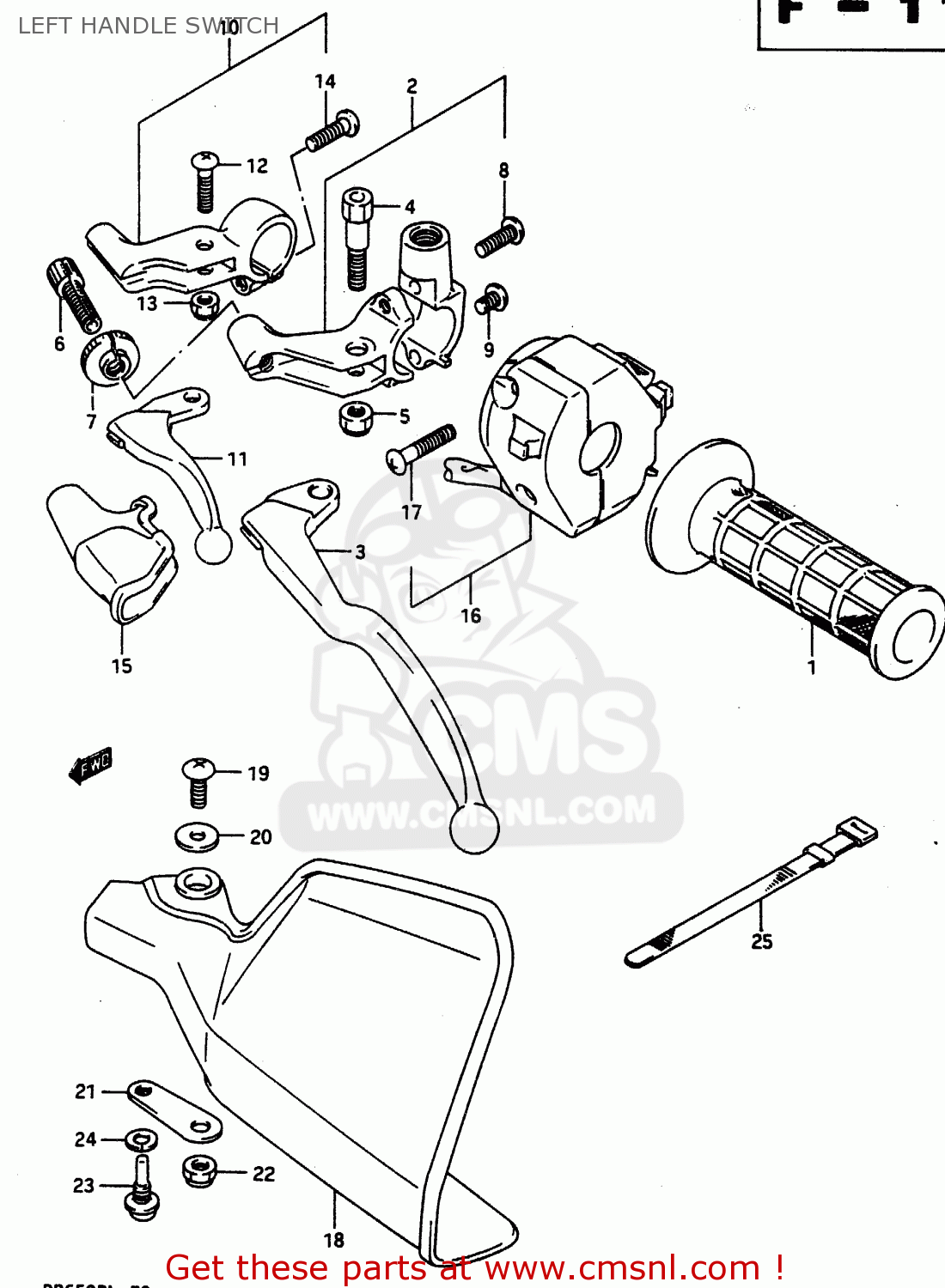

LEFT HANDLE SWITCH

ref

part #

description

quantity

1

5721112D00
ref: 1

GRIP,L

€ 14.50

2

5750012D00
ref: 2

LEVER ASSEMBLY,CLUTCH

€ 65.00

3

5762012D00
ref: 3

LEVER

€ 28.00

4

5763105D00
ref: 4

BOLT,LEVER SET

€ 7.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744205D00
ref: 7

NUT,LOCK

€ 7.50

8

0211205164
ref: 8

SCREW

€ 2.00

9

0912505066
ref: 9

SCREW(5X25)

€ 2.00

10

5870038200
ref: 10

LEVER ASSEMBLY,DECOMPRESSION

€ 169.50

11

5873138200
ref: 11

LEVER,DECOMP

€ 42.00

12

5743101011
ref: 12

BOLT,LEVER

€ 5.00

13

5763338200
ref: 13

NUT

€ 2.00

14

0211206205
ref: 14

SCREW

€ 2.00

15

5734237101
ref: 15

COVER,DECOMP LEVER DUST

€ 9.50

16

3740014A50
ref: 16

SWITCH ASSY, HANDLE LH

€ 120.50

17

0211205305
ref: 17

SCREW

€ 1.50

18

5754105D0030H
ref: 18
FOR 3UA

COVER,KNUCKLE,LEFT

€ 31.00

18

5754105D0014L
ref: 18
FOR 3UB

COVER, KNUCKLE, LH (WHITE)

€ 31.00

19

0912505042
ref: 19

SCREW(5X10)

€ 2.50

20

0916005017
ref: 20

WASHER (5.5X16X1.2)

€ 2.50

21

5754205D00
ref: 21

PLATE,KNUCKLE COVER,L LWR

€ 3.50

22

0831921068
ref: 22

NUT 6MM

€ 2.00

23

0913906010
ref: 23

SCREW

€ 3.00

24

0832121067
ref: 24

WASHER,LOCK

€ 2.50

25

0940712402
ref: 25

CLAMP(L:120)

€ 3.00
