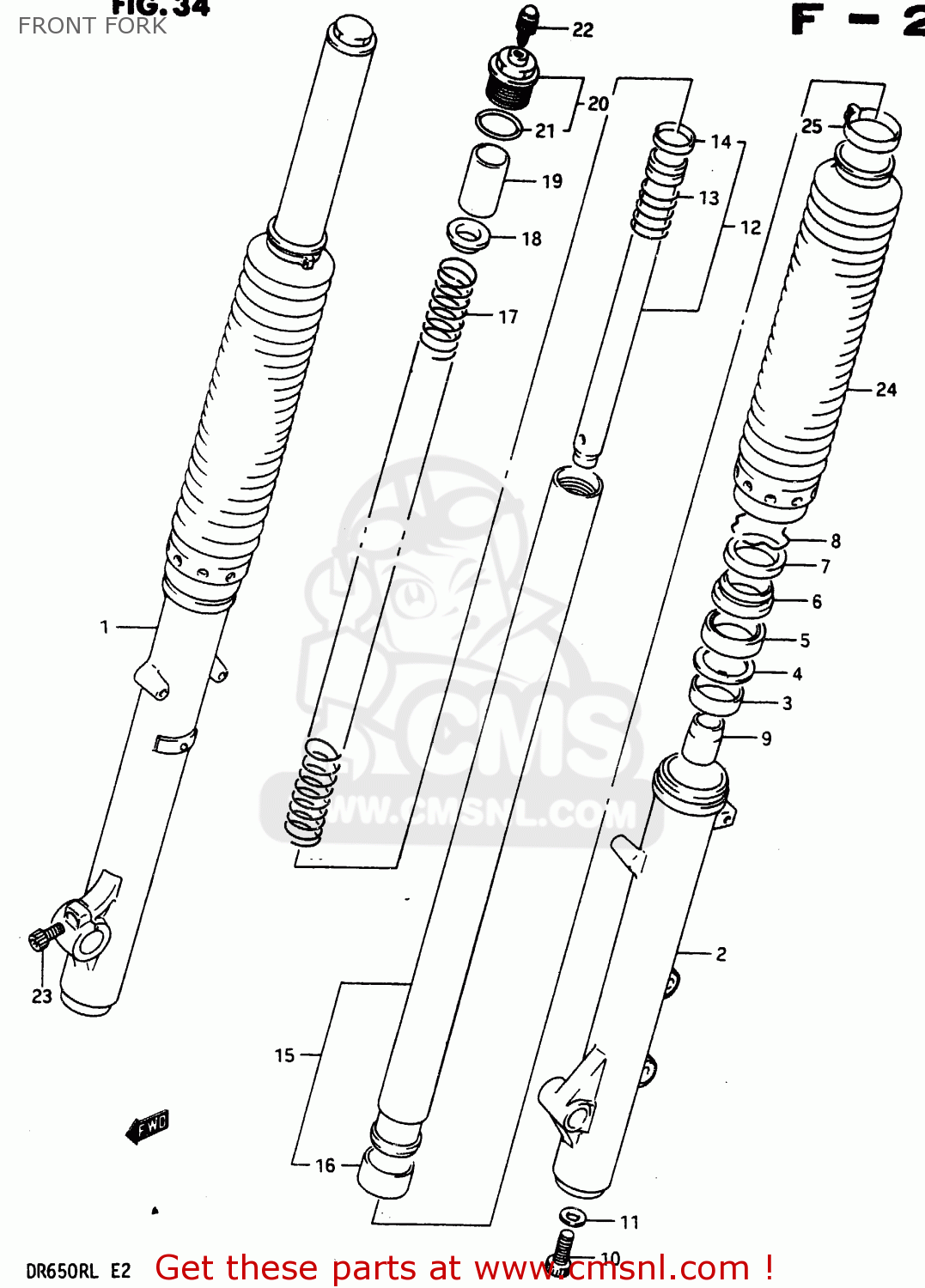

FRONT FORK

ref

part #

description

quantity

0

5110314A20
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 678.00

0

5110414A20
ref: 0

DAMPER ASSEMBLY,LEFT

€ 689.00

1

5113012D00
ref: 1

TUBE,OUTER,RIGHT

€ 226.50

2

5114012D00
ref: 2

TUBE,OUTER,LEFT

€ 293.00

3

5116728C00
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115344B00
ref: 5

SEAL,OIL

€ 17.50

6

5117344B00
ref: 6

SEAL,DUST

€ 13.00

7

5115844B00
ref: 7

WASHER

€ 6.00

8

5115649440
ref: 8

RING,OIL SEAL STOPPER

€ 5.50

9

5119512D00
ref: 9

PIECE,OIL LOCK

€ 14.50

10

5114714200
ref: 10

BOLT(14X25)

€ 5.50

11

5114814200
ref: 11

GASKET (NAS)

€ 2.00

12

5119014A20
ref: 12

CYLINDER

€ 89.00

13

5117712D00
ref: 13

SPRING,REBOUND

€ 6.00

14

5119624A00
ref: 14

RING,FR FORK PISTON

€ 6.50

15

5111014A20
ref: 15

TUBE,INNER

€ 307.50

16

5112128C00
ref: 16

PISTON

€ 23.00

17

5117114A20
ref: 17

SPRING,MAIN

€ 77.50

18

5117212D00
ref: 18

GUIDE,SPRING

€ 5.00

19

5117614A20
ref: 19

SPACER,SPRING

€ 11.00

20

5135114A20
ref: 20

CAP,FORK

€ 46.50

21

5111706C10
ref: 21

O-RING

€ 2.00

22

5129414400
ref: 22

CAP,FRONT FORK AIR VALVE

€ 3.50

23

5113844B00
ref: 23

BOLT,SOCKET HEAD(8X22)

€ 4.00

24

5157112D0039J
ref: 24

BOOT

€ 53.50

24

5157112D0034S
ref: 24

BOOT

€ 53.50

25

5157512D00
ref: 25

BAND,BOOT

€ 7.50

all assemblies
