FRONT FORK COVER

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

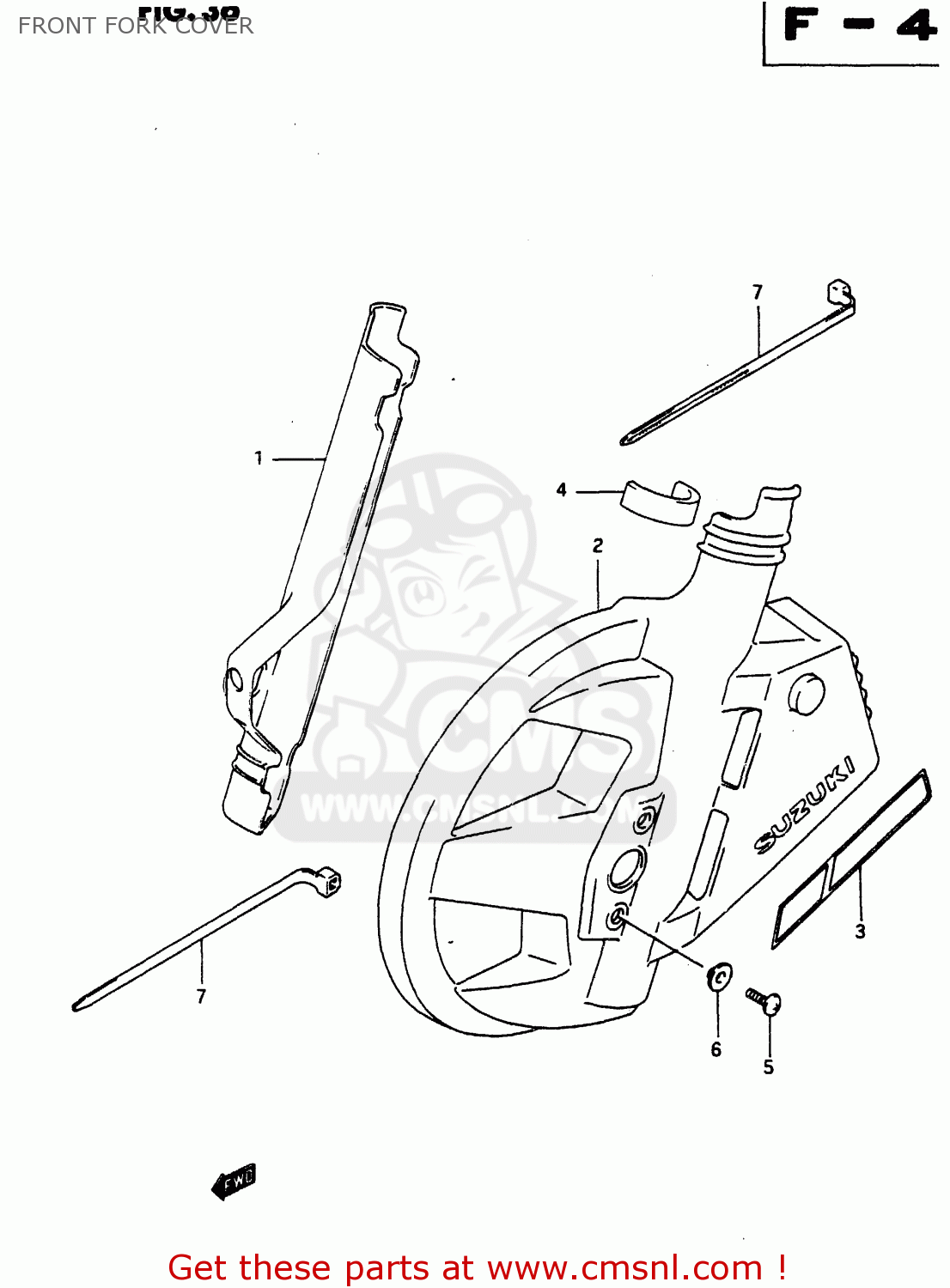

Front fork cover diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

FRONT FORK COVER DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
FRONT FORK COVER DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
FRONT FORK COVER DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
prices are in EUR
ref
part #
description
quantity
1
5120144B0014L
ref: 1
PROTECTOR, FORK RH (WHITE)
€ 30.50
1
5120144B0030H
ref: 1
PROTECTOR,FRONT FORK,RIGHT
5120144B0030H
€ 30.50
2
5120244B0114L
ref: 2
PROTECTOR, FORK LH (WHITE)
€ 91.00
2
5120244B0130H
ref: 2
PROTECTOR,FRONT FORK,LEFT
€ 91.00
3
6825044B00A17
ref: 3
FOR 14L
TAPE SET, DISC PROTECTOR
€ 0.00
3
6825044B003UE
ref: 3
FOR 30H
TAPE SET, DISC PROTECTOR
€ 0.00
4
5120412D00
ref: 4
CUSHION
€ 5.50
5
0214206125
ref: 5
SCREW 6X12
0214206125
€ 2.00
6
0916906041
ref: 6
WASHER
0916906041
€ 2.00
7
0940725403
ref: 7
CLAMP
0940725403
€ 4.00
