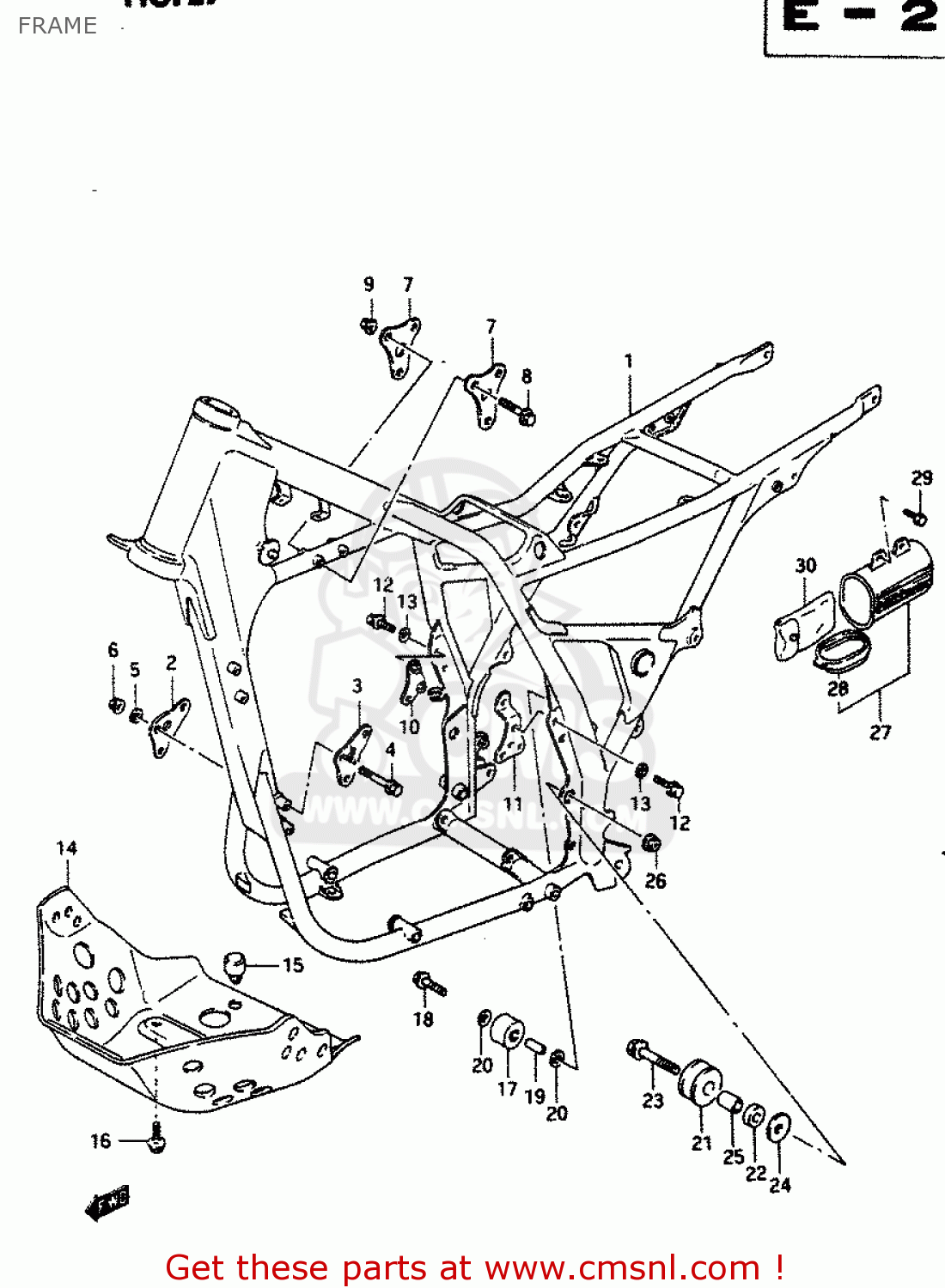

FRAME

ref

part #

description

quantity

1

4110014C6029F
ref: 1

FRARM (BROWN)

€ 1,375.50

1

4110014C6034S
ref: 1

FRAME (BLUE)

€ 1,375.50

1

4110014C7029F
ref: 1
E15, E17, E22

FRAME (BROWN)

€ 0.00

1

4110014C7034S
ref: 1
E15, E17, E22

FRAME (BLUE)

€ 0.00

2

4191112D00291
ref: 2

PLATE, FRONT RH (BLACK)

€ 9.50

3

4192112D00291
ref: 3

PLATE, FRONT LH (BLACK)

€ 9.00

4

0910308279
ref: 4

BOLT(8X72)

€ 4.50

5

0832131087
ref: 5

WASHER,LOCK

€ 2.00

6

0831921088
ref: 6

NUT

€ 1.50

7

4199112D00291
ref: 7

PLATE, UPPER (BLACK)

€ 15.50

8

0910308282
ref: 8

BOLT 8X50

€ 2.00

9

0831931087
ref: 9

NUT

€ 2.50

10

4194012D00291
ref: 10

PLATE, REAR RH (BLACK)

€ 12.00

11

4195014A10291
ref: 11

PLATE,ENGINE MOUNTING

€ 14.50

11

4195012D10291
ref: 11
E18

PLATE, REAR LH (BLACK)

€ 0.00

12

0910308266
ref: 12

BOLT(8X20)

€ 2.50

13

0832131087
ref: 13

WASHER,LOCK

€ 2.00

14

4251114A20
ref: 14

PROTECTOR,ENGINE

€ 257.00

15

0932110017
ref: 15

CUSHION

€ 5.50

16

0151708167
ref: 16

BOLT 8X16

€ 3.00

17

4391101B10
ref: 17

ROLLER,CHAIN CONTROL

€ 14.50

18

0910308083
ref: 18

BOLT(8X41)

€ 3.50

19

0918008136
ref: 19

SPACER (8.6X13.8X28)

€ 9.00

20

0916008021
ref: 20

WASHER (8.2X24X1.6)

€ 2.00

21

4391135B00
ref: 21

ROLLER,CHAIN CONTROL

€ 14.50

22

4391412D00
ref: 22

SPACER,LOWER

€ 3.50

23

0910308082
ref: 23

BOLT 8X50

€ 7.00

24

0821108201
ref: 24

WASHER

€ 2.00

25

0918008119
ref: 25

SPACER(8.6X12X25.5)

€ 6.50

26

0831931085
ref: 26

NUT

€ 2.50

27

4155037210
ref: 27

HOLDER,TOOL

€ 20.50

28

4155237210
ref: 28

CAP,HOLDER

€ 5.00

29

0911606085
ref: 29

BOLT M6X16

€ 2.50

30

0980000242
ref: 30

TOOL ASSY

€ 55.00
