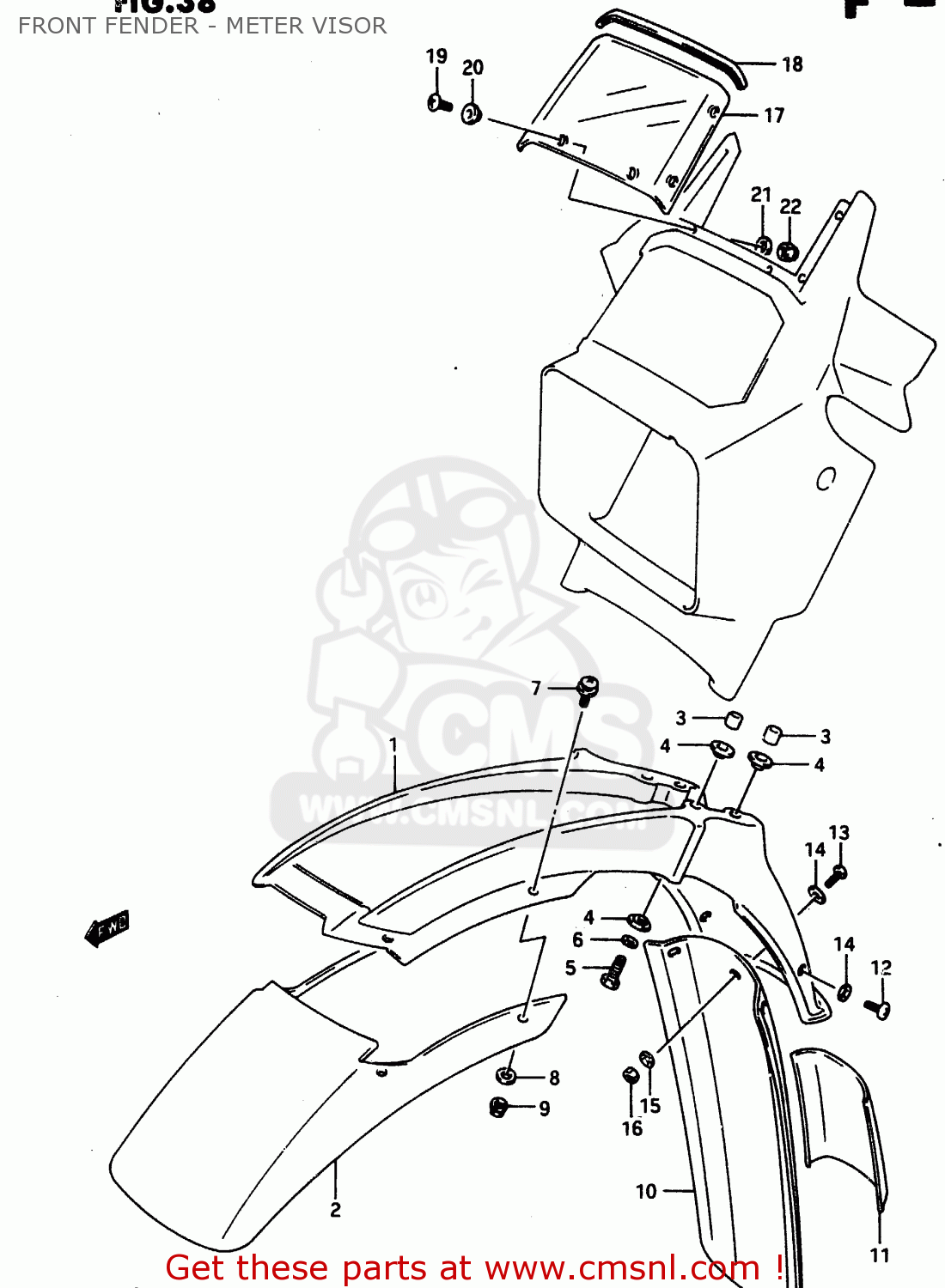

FRONT FENDER - METER VISOR - DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

ref

part #

description

quantity

1

5311115A0014L
ref: 1
FOR 3UB

FENDER, FRONT REAR (WHITE)

€ 73.00

1

5311115A0030H
ref: 1
FOR 3UA

FENDER, FRONT REAR (WHITE)

€ 73.00

1

5311115A1014L
ref: 1
E15, E16, E17, E18,

FENDER, FRONT REAR (WHITE)

€ 73.00

1

5311115A1030H
ref: 1
E15, E16, E17, E18,

FENDER, FRONT REAR (WHITE)

€ 73.00

1

5311115A2014L
ref: 1
E22, FOR 3UB

FENDER, FRONT REAR (WHITE)

€ 73.00

1

5311115A2030H
ref: 1
E22, FOR 3UA

FENDER,FR,R

€ 73.00

2

5311215A0034S
ref: 2
FOR 30H

FENDER, FRONT (BLUE)

€ 38.00

2

5311215A0039J
ref: 2
FOR 14L

FENDER, FRONT (RED)

€ 28.00

2

5311215A2034S
ref: 2
E22, FOR 30H

FENDER, FRONT (BLUE)

€ 38.00

2

5311215A2039J
ref: 2
E22, FOR 14L

FENDER, FRONT (RED)

€ 28.00

3

0918006038
ref: 3

SPACER(6.1X9X7.5)

€ 2.00

3

0918006038
ref: 3
E15, E16, E17, E18,

SPACER(6.1X9X7.5)

€ 2.00

3

0918006030
ref: 3
E15, E16, E17, E18.

SPACER (6.8X10X10)

€ 2.00

4

0916906053
ref: 4

WASHER

€ 2.00

5

0110706257
ref: 5

BOLT

€ 2.00

6

0832121067
ref: 6

WASHER,LOCK

€ 2.50

7

0913606062
ref: 7

SCREW (6X16)

€ 2.50

8

0916006003
ref: 8

WASHER (6.7X16X1.8)

€ 2.00

9

0831931065
ref: 9

NUT

€ 2.50

10

5331014A10
ref: 10
E15, E16, E17, E18,

MUD FLAP, FRONT FENDER

€ 45.00

10

5331014A30
ref: 10
E22

MUD FLAP, FRONT FENDER

€ 40.00

11

5332214A00
ref: 11
E15, E16, E17, E18,

PROTECTOR SEAT

€ 0.00

12

0214206164
ref: 12
E15, E16, E17, E18,

SCREW

€ 2.50

13

0214206205
ref: 13
E15, E16, E17, E18,

SCREW, CENTER

€ 2.00

14

0916006003
ref: 14
E15, E16, E17, E18,

WASHER (6.7X16X1.8)

€ 2.00

15

0832121067
ref: 15
E15, E16, E17, E18,

WASHER,LOCK

€ 2.50

16

0831022067
ref: 16
E15, E16, E17, E18,

NUT 6MM

€ 2.50

17

9461115A00
ref: 17

VISOR, METER

€ 94.00

18

9463115A00
ref: 18

MOLDING

€ 15.00

18

9463115A10
ref: 18
E17

MOLDING

€ 14.00

19

0214205104
ref: 19

SCREW 5X10

€ 2.50

20

0932005008
ref: 20

CUSHION

€ 5.00

21

0832221055
ref: 21

WASHER,5MM

€ 2.50

22

0831311055
ref: 22

NUT

€ 2.00

FRONT FENDER - METER VISOR

all assemblies
