CAM CHAIN

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

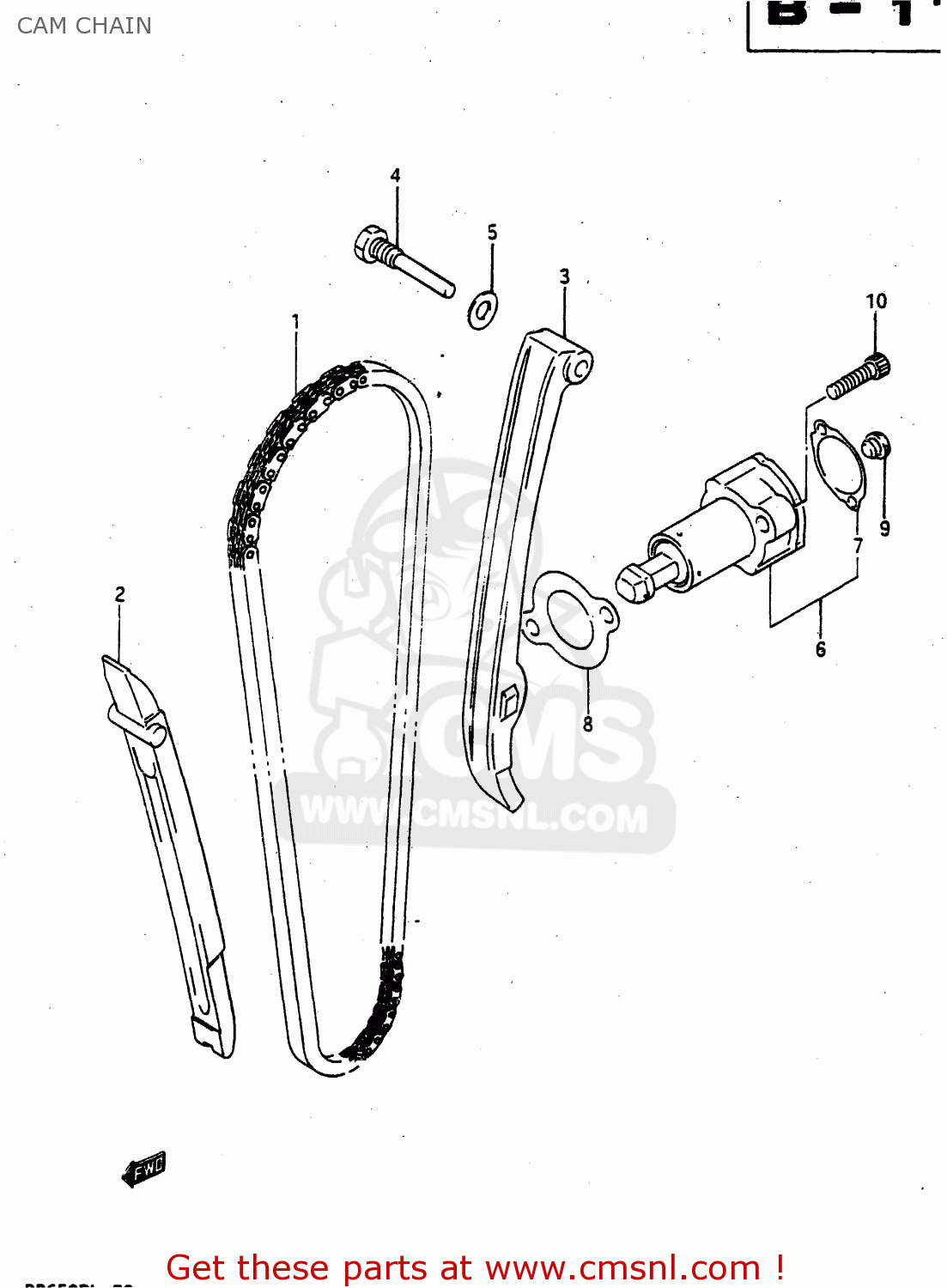

Cam chain diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

prices are in EUR

ref

part #

description

quantity

1276037400
ref: 1
124LE

CHAIN,CAMSHAFT DRIVE

€ 132.50

1277137400
ref: 2

GUIDE,CAM CHAIN

€ 39.50

1281137401
ref: 3

TENSIONER,CAM CHAIN

€ 41.50

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283015500
ref: 6

ADJUSTER ASSEMBLY,TENSIONER

€ 91.00

1283838200
ref: 7

GASKET,ADJUSTER CAP (MCA)

€ 3.00

1283838200H17
ref: 7
E17

GASKET,ADJUSTER CAP (NAS)

€ 3.00

GASKET,TENSIONER ADJUSTER

€ 3.50

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

0711006255
ref: 10

BOLT

€ 3.00

all assemblies
