REAR FENDER

DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

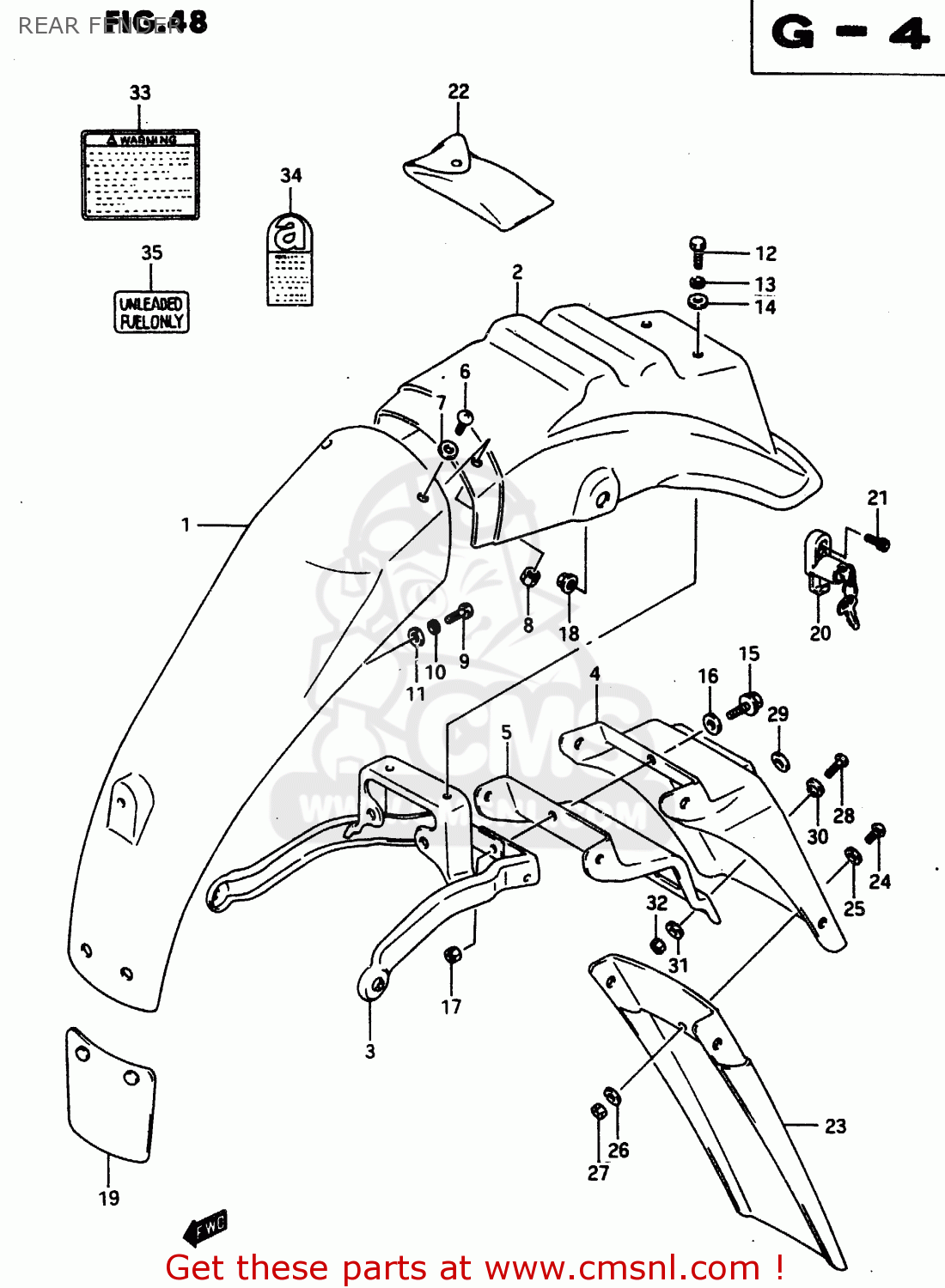

Rear fender diagram DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E

REAR FENDER DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
REAR FENDER DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
REAR FENDER DR650R 1990 (L) (E2 E4 E15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E
prices are in EUR
ref
part #
description
quantity
1
6311214A10
ref: 1
BODY,REAR FENDER,FRONT
6311214A10
€ 36.00
2
6311314A2014L
ref: 2
FOR 3UB
BODY, REAR FENDER REAR (WHITE)
€ 89.50
2
6311314A2030H
ref: 2
FOR 3UA
BODY,REAR FENDER,REAR
6311314A2030H
€ 89.50
3
6312014A00
ref: 3
REINFORCEMENT,REAR FENDER
€ 41.50
4
6331115A00
ref: 4
EXTENSION,REAR FENDER
€ 31.00
4
6331115A10
ref: 4
E15, E16, E17, E18,
EXTENSION,REAR FENDER
€ 31.00
4
6331115A20
ref: 4
E22
EXTENSION,REAR FENDER
€ 31.00
5
6313015A10
ref: 5
REINFORCEMENT,REAR FENDER
€ 31.00
6
0214205124
ref: 6
SCREW, FRONT & REAR
€ 1.50
7
0916005031
ref: 7
WASHER
€ 1.50
8
0831921055
ref: 8
NUT 8MM
0831921055
€ 1.50
9
0110706165
ref: 9
BOLT 6X16
0110706165
€ 2.00
10
0832121064
ref: 10
WASHER,LOCK
0832121064
€ 2.00
11
0916906026
ref: 11
WASHER
0916906026
€ 2.00
12
0110706205
ref: 12
BOLT
0110706205
€ 2.00
13
0832121064
ref: 13
WASHER,LOCK
0832121064
€ 2.00
14
0832221064
ref: 14
WASHER
0832221064
€ 2.00
15
0911606152
ref: 15
BOLT(6X20)
0911606152
€ 2.00
16
0916906026
ref: 16
WASHER
0916906026
€ 2.00
17
0831931065
ref: 17
NUT
0831931065
€ 2.50
18
0831931085
ref: 18
NUT
€ 2.50
19
6341113700
ref: 19
GUARD,RR FENDER FR MUD
6341113700
€ 10.00
20
9570031810
ref: 20
LOCK SET,HELMET
€ 49.50
21
0711006165
ref: 21
BOLT
0711006165
€ 3.00
22
0980000242
ref: 22
TOOL ASSY
€ 55.00
23
6333114A00
ref: 23
E15, E16, E17, E18
MUD GUARD
€ 39.50
23
6333114A20
ref: 23
E22
MUD GUARD
6333114A20
€ 39.50
24
0214206125
ref: 24
E15, E16, E17, E18,
SCREW 6X12
0214206125
€ 2.00
25
0916006019
ref: 25
E15, E16, E17, E18,
WASHER(6.5X16X1.2)
0916006019
€ 1.50
26
0832121066
ref: 26
E15, E16, E17, E18,
WASHER,LOCK
0832121066
€ 2.00
27
0831022066
ref: 27
E15, E16, E17, E18,
NUT
€ 2.00
28
0214206125
ref: 28
SCREW 6X12
0214206125
€ 2.00
28
0214206164
ref: 28
E15, E16, E17, E18,
SCREW
0214206164
€ 2.50
29
0916006020
ref: 29
WASHER
0916006020
€ 2.00
30
0916906041
ref: 30
WASHER
0916906041
€ 2.00
31
0916006069
ref: 31
WASHER
0916006069
€ 2.00
32
0831022065
ref: 32
NUT
€ 1.50
33
6831915D00
ref: 33
LABEL
€ 8.00
33
6831915D20
ref: 33
E22, E39
LABEL, WARNING
€ 8.00
33
6831915D30
ref: 33
E4, E21
LABEL, WARNING
€ 8.50
33
6831915D40
ref: 33
E34
LABEL, WARNING
€ 8.00
33
6831915D50
ref: 33
E53
LABEL, WARNING
€ 8.00
34
1196782000
ref: 34
E2
LABEL,ASBESTOS WARNING
€ 2.00
35
8693273060
ref: 35
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
