CRANKCASE COVER
GS450L 1980 (T) (E02 E21 E22 E24 E25)

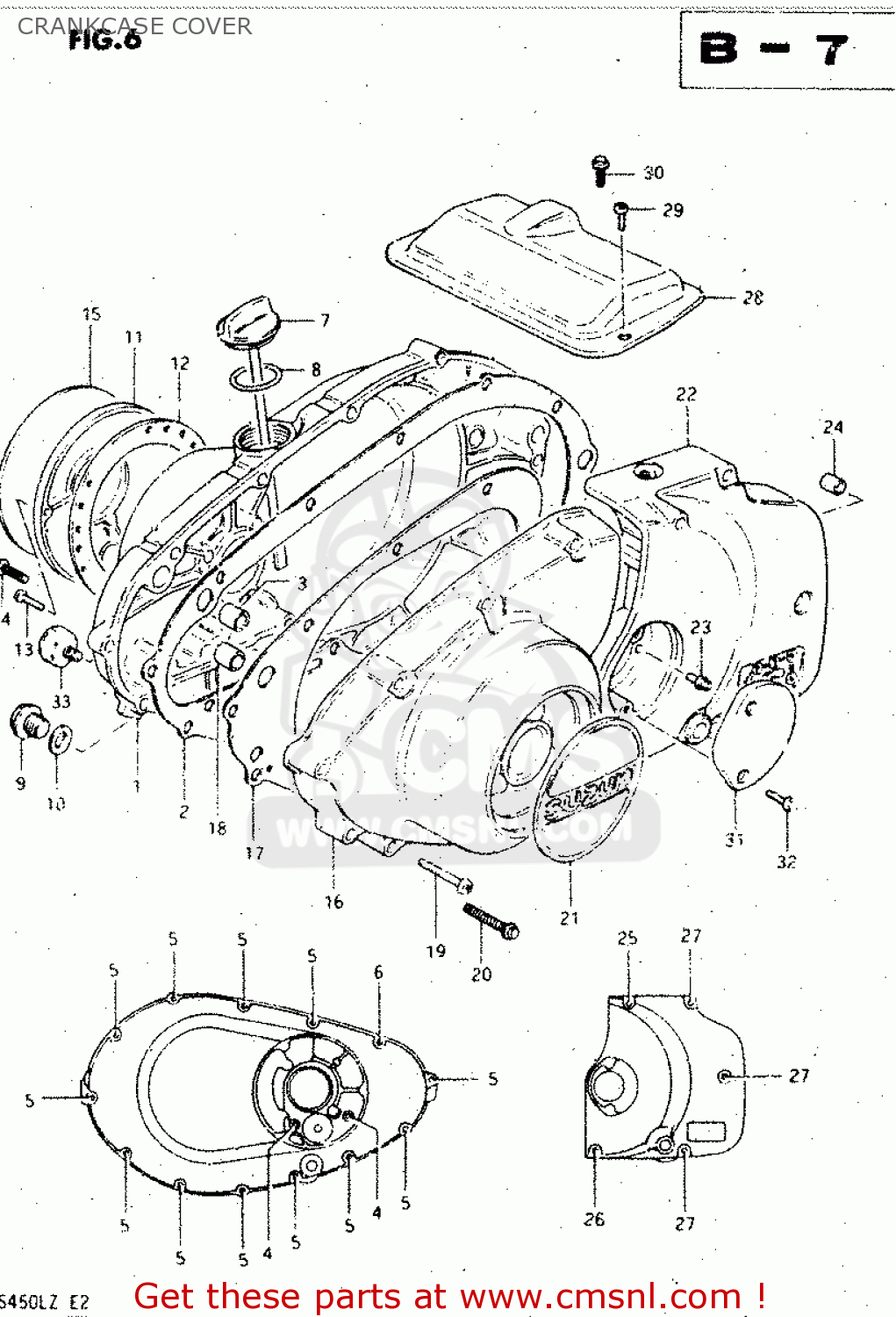

Crankcase cover diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)
CRANKCASE COVER GS450L 1980 (T) (E02 E21 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134144100
ref: 1-1
~E.NO.156609
COVER,CLUTCH
€ 119.50
1-2
1134144101
ref: 1-2
E.NO.156610~
COVER,CLUTCH
€ 119.50
2
1148244100
ref: 2
GASKET,CLUTCH COVER (MCA)
€ 17.50
3
0920613001
ref: 3
PIN
€ 2.50
4-1
0211206557
ref: 4-1
SCREW
€ 2.50
4-2
0154706558
ref: 4-2
BOLT (6X55)
€ 2.50
5-1
0211206358
ref: 5-1
SCREW (6X35)
€ 2.50
5-2
0154706358
ref: 5-2
BOLT (6X35)
€ 2.50
6-1
0211206258
ref: 6-1
SCREW
€ 2.00
6-2
0154706258
ref: 6-2
BOLT
€ 2.50
7
1197044100
ref: 7
GAUGE,OIL LEVEL
€ 17.50
8
0928027002
ref: 8
O-RING
€ 3.00
9
0924714012
ref: 9
PLUG (14X12)
€ 3.50
10
0916814004
ref: 10
GASKET(14X19.2X2) (NAS)
€ 2.50
11-1
1138144100
ref: 11-1
~E.NO.156609
COVER,CONTACT BREAKER
€ 42.00
11-2
1138144101
ref: 11-2
E.NO.156610~
COVER,CONTACT BREAKER
€ 42.00
12
1149144100
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
€ 4.50
13
0211205168
ref: 13
SCREW
€ 2.50
14
0154405168
ref: 14
BOLT 5X16
€ 2.00
15
6823344100
ref: 15
EMBLEM,MAGNETO COVER
€ 15.50
16-1
1135144100
ref: 16-1
~E.NO.156609
COVER
€ 45.00
16-2
1135144101
ref: 16-2
E.NO.156610~
COVER
€ 45.00
17
1148344100
ref: 17
GASKET,MAGNETO COVER (MCA)
€ 12.50
18
0920613001
ref: 18
PIN
€ 2.50
19
0211206358
ref: 19
SCREW (6X35)
€ 2.50
20
0154706358
ref: 20
BOLT (6X35)
€ 2.50
21
6823344100
ref: 21
EMBLEM,MAGNETO COVER
€ 15.50
22-1
1136144100
ref: 22-1
~E.NO.156609
COVER,SPROCKET
€ 86.00
22-2
1136144101
ref: 22-2
E.NO.156610~
COVER,ENGINE SPROCKET
€ 86.00
23
0835111009
ref: 23
NIPPLE
€ 32.00
24
0421109129
ref: 24
PIN
€ 2.00
25-1
0211206658
ref: 25-1
SCREW 6X65
€ 2.00
25-2
0154706658
ref: 25-2
BOLT (6X65)
€ 2.00
26-1
0211206508
ref: 26-1
SCREW
€ 2.50
26-2
0154706508
ref: 26-2
BOLT (6X50)
€ 2.50
27-1
0211206408
ref: 27-1
SCREW
€ 2.00
27-2
0154706408
ref: 27-2
BOLT (6X40)
€ 2.50
28
1138244100
ref: 28
COVER,STARTER MOTOR
€ 20.50
29
0211205088
ref: 29
SCREW
€ 2.00
30
0154705088
ref: 30
BOLT
€ 2.00
31
1138744100
ref: 31
CAP,CLUTCH RELEASE ADJUST
€ 10.00
32
0213205127
ref: 32
SCREW 5X12
€ 2.50
33
3782044100
ref: 33
SWITCH ASSEMBLY
€ 29.00
