STEERING STEM (MODEL Z)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

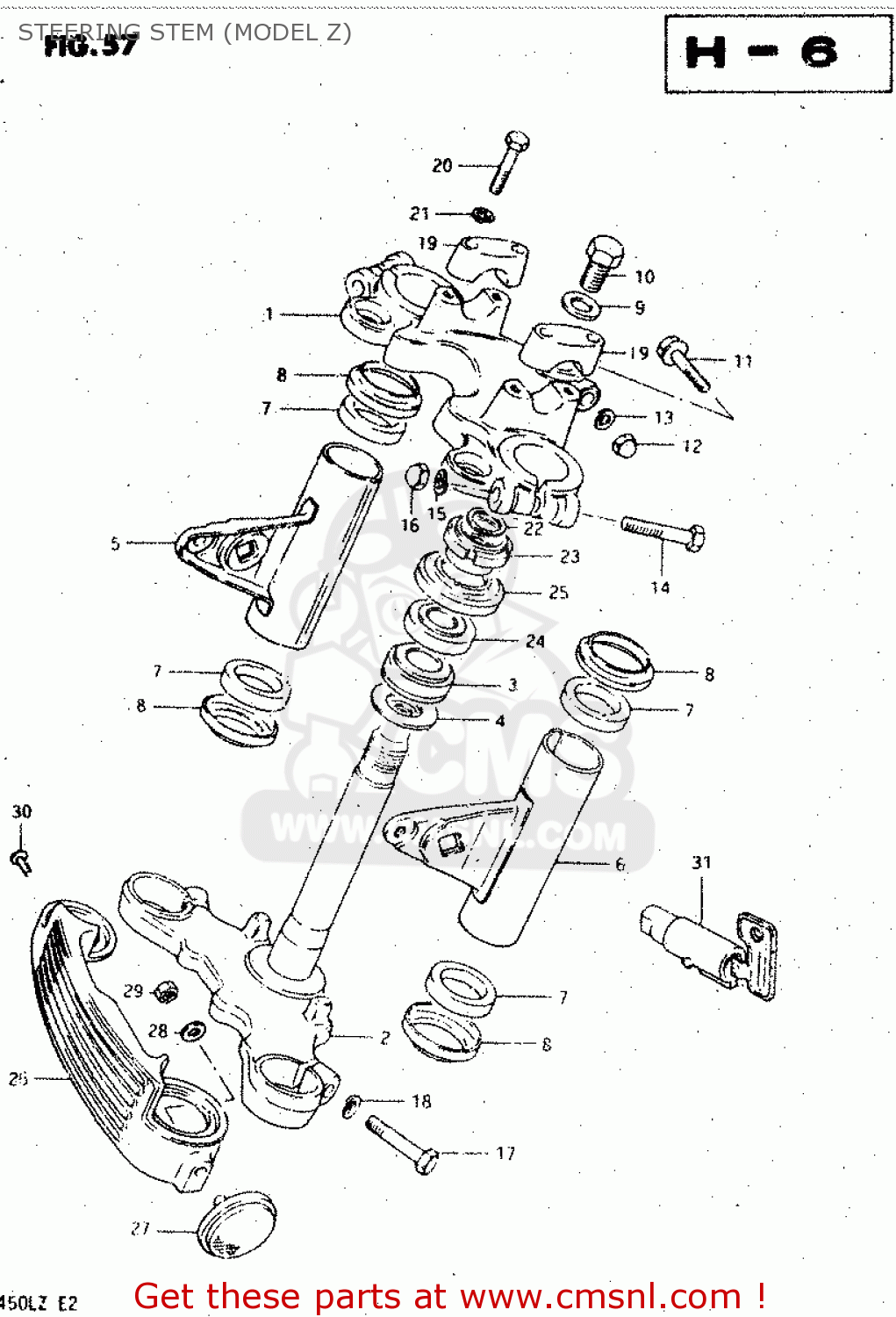

Steering stem (model z) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

STEERING STEM (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)
STEERING STEM (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)
STEERING STEM (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
5131144110291
ref: 1
HEAD,STEERING STEM
5131144110291
€ 100.50
2-1
5140044840
ref: 2-1
STEM,STEERING
€ 97.00
2-2
5140044850
ref: 2-2
E25
STEERING STEM SET
5140044850
€ 97.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153044210
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 109.00
6
5154044210
ref: 6
BRACKET,HEADLAMP,LEFT
5154044210
€ 16.50
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
5155644100
€ 5.50
8
5155544100
ref: 8
CAP,HEADLAMP BRACKET
5155544100
€ 5.50
9
0916012006
ref: 9
WASHER
€ 2.00
10
0910412013
ref: 10
BOLT(12X20)
0910412013
€ 6.50
11
0152708507
ref: 11
BOLT
€ 3.50
12
0831311085
ref: 12
NUT,M8X1.25X12
€ 2.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
0151710558
ref: 14
BOLT 10X55
€ 3.00
15
0832121108
ref: 15
LOCK WASHER
0832121108
€ 2.00
16
0914510002
ref: 16
NUT
0914510002
€ 4.00
17
0110710408
ref: 17
BOLT 10X40
0110710408
€ 3.00
18
0832121108
ref: 18
LOCK WASHER
0832121108
€ 2.00
19
5621127200291
ref: 19
HOLDER,HANDLE UPR
5621127200291
€ 13.50
20
0120408357
ref: 20
BOLT
0120408357
€ 3.50
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
0916018002
ref: 22
WASHER(18.5X24X1)
0916018002
€ 2.00
23
5163134200
ref: 23
NUT,STEERING STEM
5163134200
€ 23.00
24
0926525008
ref: 24
TAPER,ROLLER BEARING
0926525008
€ 48.50
25
5164340502
ref: 25
DUST SEAL,STEERING UPR
5164340502
€ 8.00
26
5187144200
ref: 26
COVER,FRONT FORK
€ 26.00
27
3595049080
ref: 27
REFLEX REFLECTOR,RR
3595049080
€ 17.50
28
0832221058
ref: 28
WASHER
€ 2.50
29
0831011058
ref: 29
NUT
0831011058
€ 2.50
30
0214205087
ref: 30
E25
SCREW
0214205087
€ 2.00
31
5190022662
ref: 31
E25
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
