WIRING HARNESS
GS450L 1980 (T) (E02 E21 E22 E24 E25)

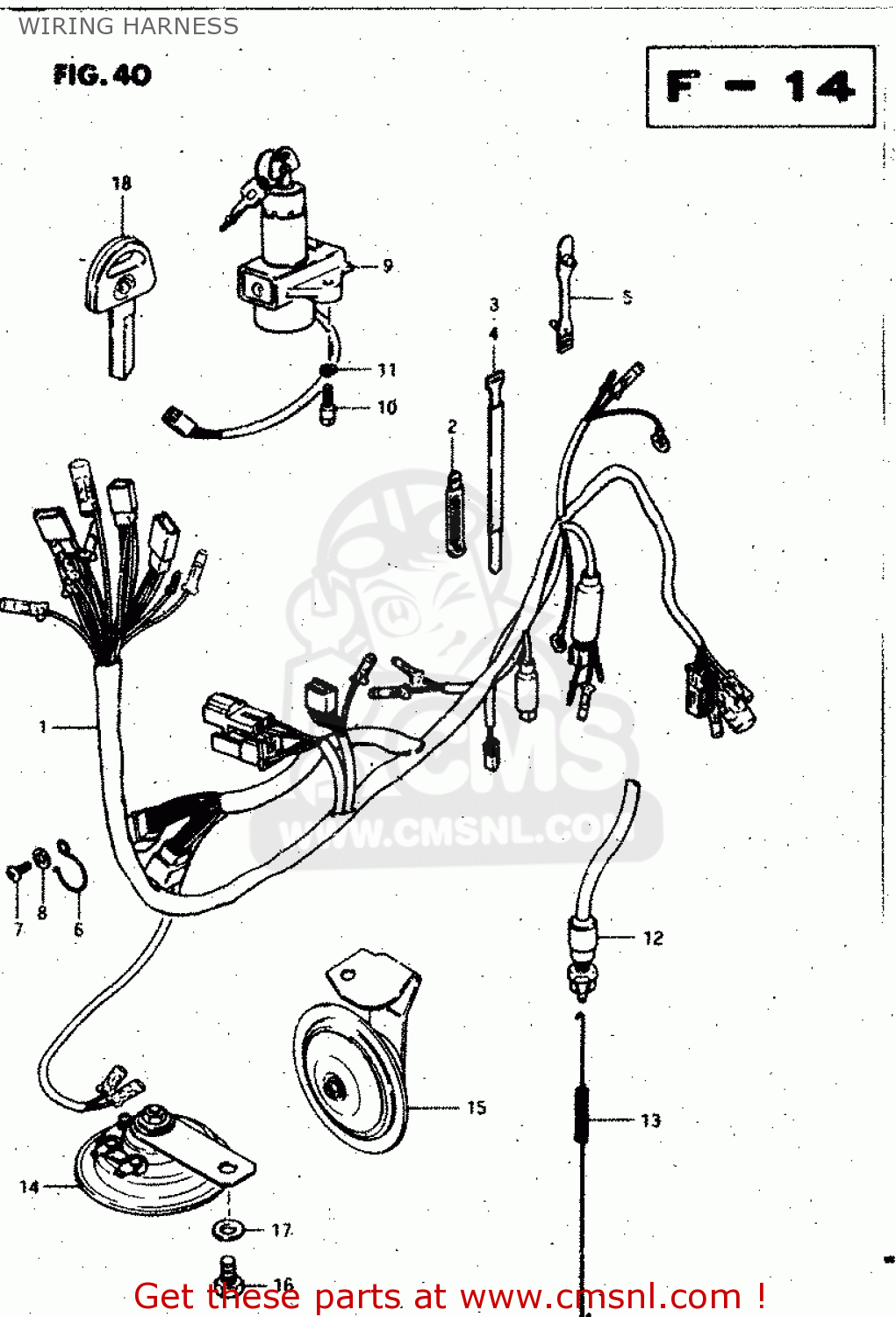

Wiring harness diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)
WIRING HARNESS GS450L 1980 (T) (E02 E21 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661044270
ref: 1-1
MODEL T
WIRING HARNESS
€ 0.00
1-2
3661044280
ref: 1-2
MODEL X,Z
WIRING HARNESS
€ 126.00
1-3
3661044291
ref: 1-3
MODEL X E15,E21,E22,
HARNESS,WIRING
€ 112.50
2
0940406414
ref: 2
CLAMP
€ 3.00
3
0940708401
ref: 3
CLAMP(L:80)
€ 2.50
4-1
0940718301
ref: 4-1
CLAMP
€ 6.00
4-2
0940725301
ref: 4-2
CLAMP(L:250)
€ 4.50
5
0940705403
ref: 5
CLAMP,L:88
€ 1.50
6
3661944000
ref: 6
GUIDE,WIRING HARNESS
€ 2.50
7
0211206128
ref: 7
SCREW 6X12
€ 2.00
8
0832221068
ref: 8
WASHER
€ 2.00
9-1
3710047011
ref: 9-1
FROM 37100-47010
LOCK ASSEMBLY,STEERING
€ 127.50
9-2
3711047001
ref: 9-2
E15,E22,E25 FROM 371
SWITCH ASSEMBLY,IGNITION
€ 119.50
10
3715247010
ref: 10
BOLT
€ 3.00
11
0832121068
ref: 11
LOCK WASHER
€ 2.50
12
3774004571
ref: 12
FROM 37740-04570
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
13
0944306018
ref: 13
SPRING
€ 4.50
14
3850247001
ref: 14
MODEL T,FROM 38502-4
HORN ASSEMBLY,LOW PITCH
€ 77.00
15-1
3850044210
ref: 15-1
MODEL X
HORN ASSEMBLY
€ 60.00
15-2
3850044200
ref: 15-2
MODEL XE39
HORN ASSEMBLY
€ 60.00
15-3
3850044220
ref: 15-3
MODEL Z
HORN ASSEMBLY
€ 60.00
15-4
3850044230
ref: 15-4
MODEL ZE34,E39
HORN ASSEMBLY
€ 60.00
16
0110708128
ref: 16
BOLT 8X12
€ 2.50
17
0832211088
ref: 17
WASHER
€ 2.00
18
3714647010
ref: 18
OPT
KEY,BLANK
€ 15.00
