GEAR SHIFTING
GS450L 1980 (T) (E02 E21 E22 E24 E25)

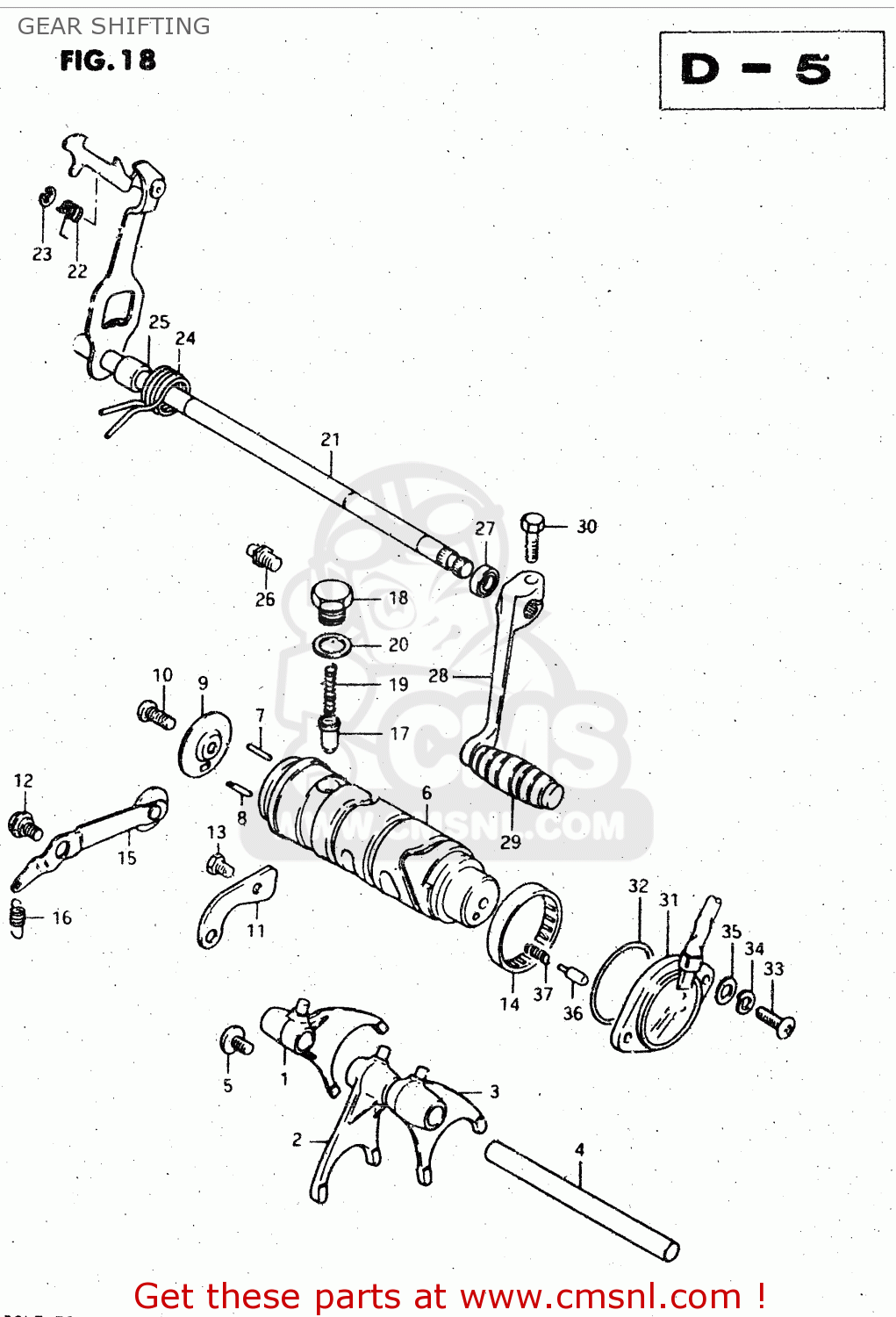

Gear shifting diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)
GEAR SHIFTING GS450L 1980 (T) (E02 E21 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
€ 74.50
4
2541131000
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.50
5
0214206108
ref: 5
SCREW
€ 2.00
6
2531147000
ref: 6
CAM,GEAR SHIFT
€ 68.50
7
0926104001
ref: 7
PIN(4X18.5)
€ 1.50
8
0920904013
ref: 8
PIN
€ 5.00
9
2532244000
ref: 9
RETAINER,GEAR SHIFT CAM DR PIN
€ 2.50
10
0211206168
ref: 10
SCREW
€ 2.50
11
2534144000
ref: 11
GUIDE,GEAR SHIFTING CABLE
€ 6.00
12
0911106019
ref: 12
BOLT
€ 1.50
13
0110706168
ref: 13
BOLT, UPPER
€ 3.00
14
0926340001
ref: 14
BEARING(40X47X12)
€ 21.00
15
2535044000
ref: 15
STOPPER,GEAR SHIFT CAM NO.1
€ 10.50
16
0944309007
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
2535430000
ref: 18
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
19
0944006014
ref: 19
SPRING
€ 1.50
20
0916814004
ref: 20
GASKET(14X19.2X2) (NAS)
€ 2.50
21
2551044100
ref: 21
SHAFT,GEAR SHIFT
€ 83.50
22
0944813008
ref: 22
SPRING
€ 7.00
23
0833211078
ref: 23
E RING
€ 2.00
24
0944426012
ref: 24
SPRING
€ 3.50
25
0918012068
ref: 25
SPACER(12X20X15.3)
€ 3.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
€ 3.00
27
0928512002
ref: 27
OIL SEAL
€ 7.00
28
2560033003
ref: 28
LEVER ASSEMBLY,GEAR SHIFTING
€ 136.00
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 4.00
30
0110708208
ref: 30
BOLT
€ 3.00
31-1
3772045100
ref: 31-1
MODEL T,X
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
31-2
3772033200
ref: 31-2
MODEL Z
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
32
0928026003
ref: 32
O-RING (D:2.4 ID:26.2)
€ 2.50
33
0211205208
ref: 33
SCREW 5X20
€ 3.00
34
0832121058
ref: 34
LOCK WASHER
€ 2.00
35
0832221058
ref: 35
WASHER
€ 2.50
36
0920905011
ref: 36
PIN(5X15.5)
€ 2.00
37
0944004010
ref: 37
SPRING
€ 1.50
