HEADLAMP (E24)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

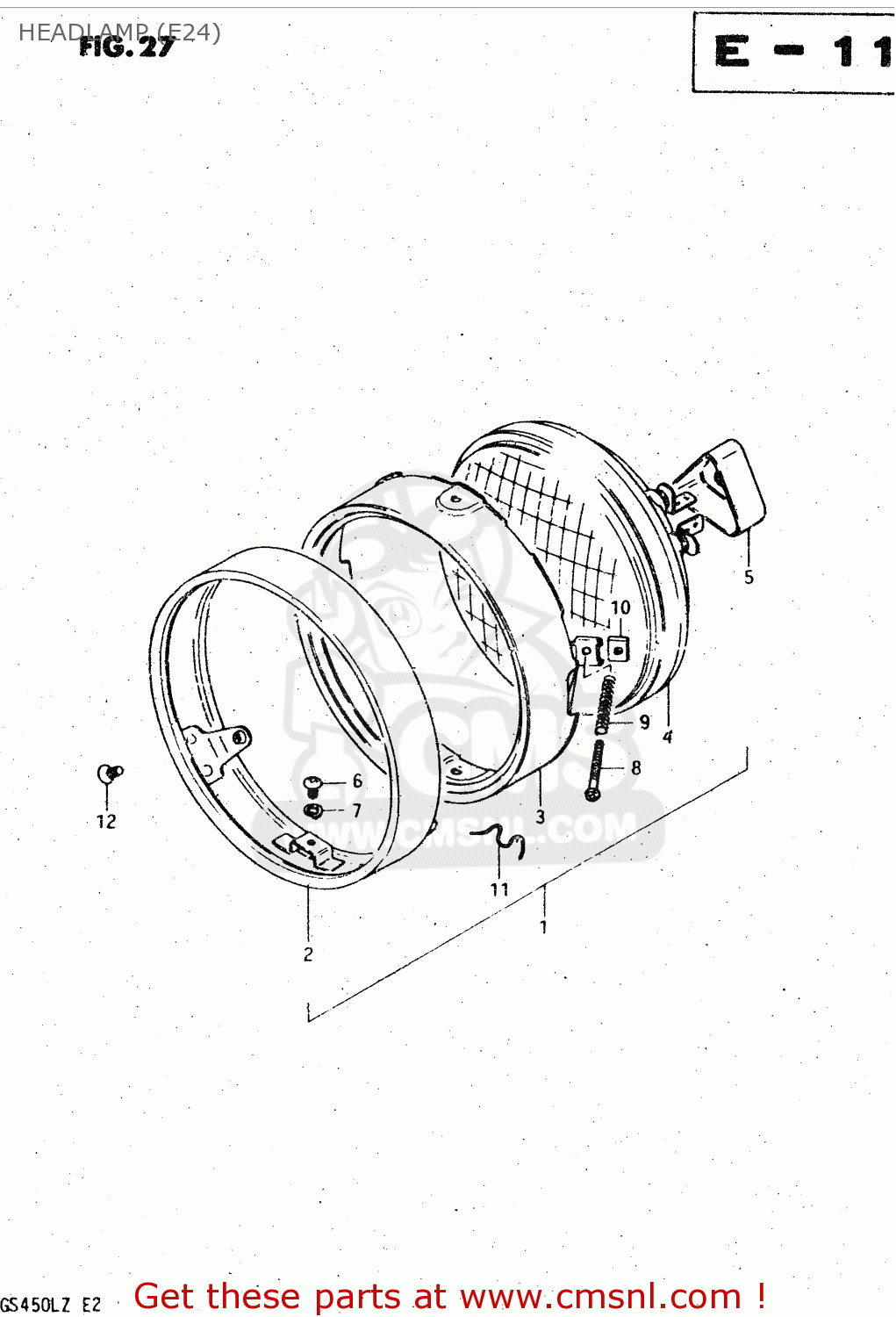

Headlamp (e24) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

3510044250
ref: 1

LAMP ASSEMBLY,HEAD

€ 124.00

3511144250
ref: 2

RIM

€ 34.50

3512729610
ref: 3

RETAINER

€ 15.50

3512144250
ref: 4
12V,45/40W

LAMP UNIT

€ 124.00

3517329610
ref: 5

COVER

€ 3.00

3513629610
ref: 6

SCREW

€ 3.00

0832121058
ref: 7

LOCK WASHER

€ 2.00

3515131610
ref: 8

SCREW

€ 4.00

3515433630
ref: 9

SPRING

€ 2.50

3515215611
ref: 10

NUT

€ 3.50

3512829611
ref: 11

SPRING,HEAD LAMP UNIT

€ 3.50

0912705013
ref: 12

SCREW(5X12)

€ 2.50
