FUEL TANK (MODEL T)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

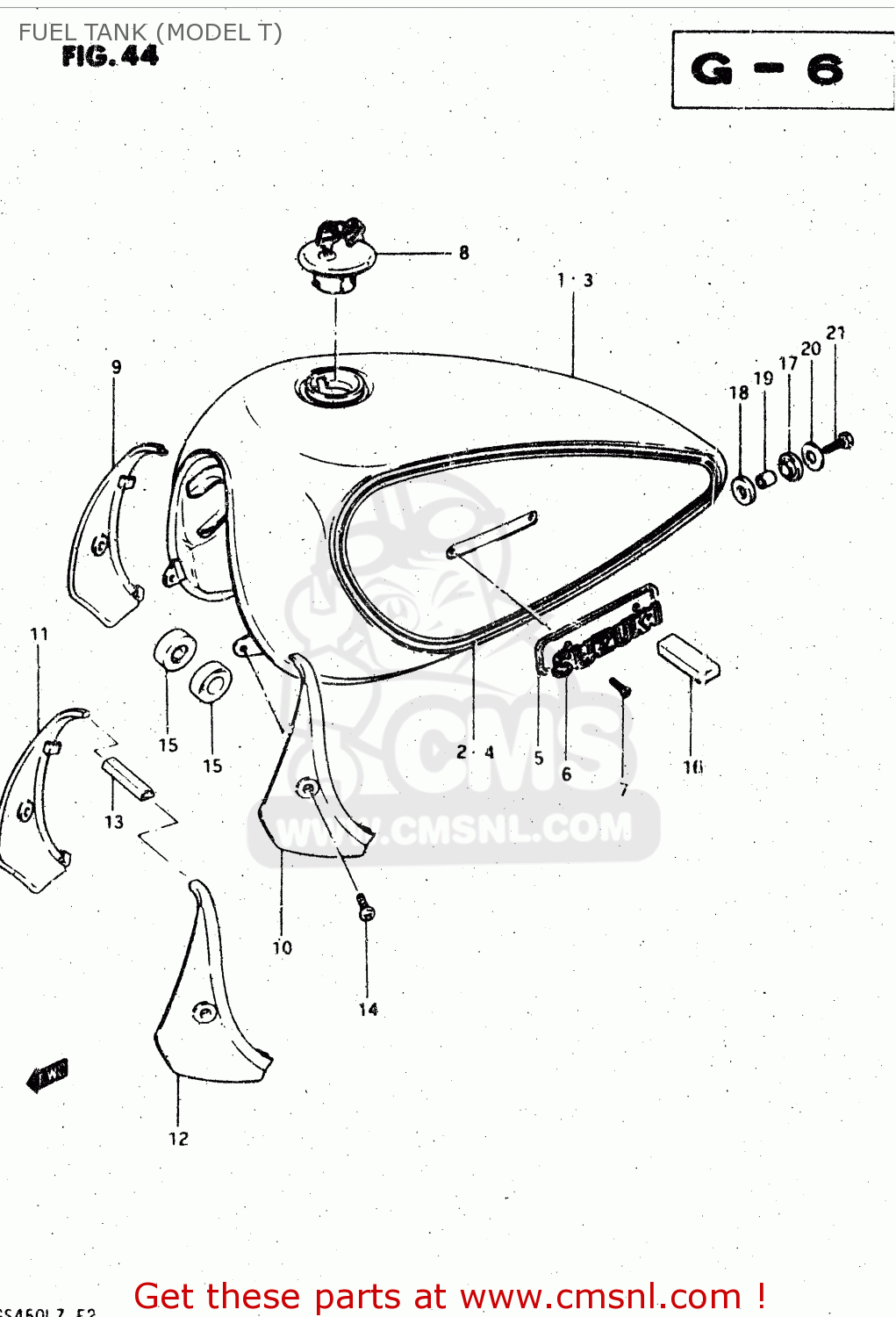

Fuel tank (model t) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FUEL TANK (MODEL T) GS450L 1980 (T) (E02 E21 E22 E24 E25)

FUEL TANK (MODEL T) GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

4410044210019
ref: 1

TANK ASSEMBLY,FUEL

€ 350.00

2

681104420066Y
ref: 2

TAPE SET,FUEL TANK STRIPE

€ 0.00

3

441004421000J
ref: 3

TANK ASSEMBLY,FUEL

€ 350.00

4

681104420071P
ref: 4

TAPE SET,FUEL TANK

€ 0.00

5

4417544200
ref: 5
E22

CUSHION

€ 5.00

6

6811144200
ref: 6

EMBLEM,FUEL TANK

€ 16.50

7

0213203065
ref: 7

SCREW 3X6

€ 2.00

8

4420030702
ref: 8

CAP SET,FUEL TANK

€ 112.00

9

4427144200
ref: 9
A TYPE

COVER,FUEL TANK

€ 7.00

10

4427244200
ref: 10
A TYPE

COVER,FUEL TANK

€ 0.00

11

4427144201
ref: 11
B TYPE

COVER,FUEL TANK,FRONT,RIGHT

€ 9.00

12

4427244201
ref: 12
B TYPE

COVER,FUEL TANK,FRONT,LEFT

€ 8.00

13

4427344200
ref: 13
B TYPE

TUBE, FRONT

€ 2.50

14

0214206125
ref: 14

SCREW 6X12

€ 2.00

15

0932910007
ref: 15

CUSHION

€ 3.00

16

0932901005
ref: 16

CUSHION

€ 11.50

17

0932012010
ref: 17

CUSHION

€ 3.00

18

0932012023
ref: 18

CUSHION

€ 2.50

19

0918008067
ref: 19

SPACER(8.5X12X19)

€ 2.50

20

0916008002
ref: 20

WASHER (8.5X29X1.6)

€ 2.00

21

0110708308
ref: 21

BOLT (8X30)

€ 2.50
