FRAME COVER (MODEL X)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

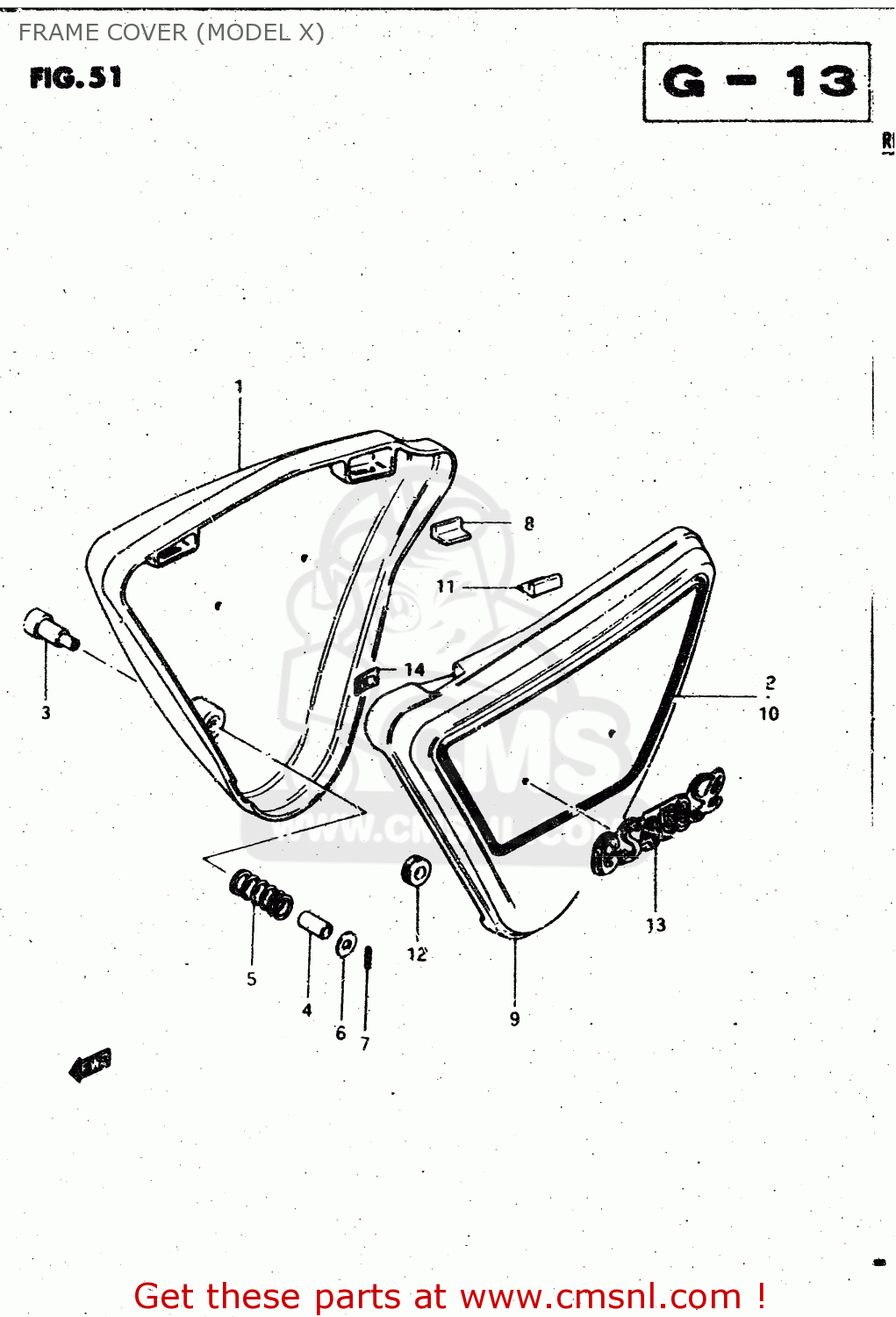

Frame cover (model x) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRAME COVER (MODEL X) GS450L 1980 (T) (E02 E21 E22 E24 E25)
FRAME COVER (MODEL X) GS450L 1980 (T) (E02 E21 E22 E24 E25)
FRAME COVER (MODEL X) GS450L 1980 (T) (E02 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
4711144210019
ref: 1-1
COVER,FRAME,RIGHT
€ 58.00
1-2
471114421008H
ref: 1-2
COVER,FRAME,RIGHT
€ 52.00
2
6813044220764
ref: 2
TAPE SET,FRAME COVER,RIGHT
6813044220764
€ 10.00
3
4713044200
ref: 3
KNOB,FRAME COVER,R
4713044200
€ 8.50
4
0918014009
ref: 4
SPACER(14.9X17.3X13.5)
0918014009
€ 5.50
5
0944020009
ref: 5
SPRING
0944020009
€ 2.50
6
0916006004
ref: 6
WASHER (6.5X24X1.6)
0916006004
€ 1.50
7
0920502011
ref: 7
PIN,SPRING(2.5X18)
0920502011
€ 1.50
8
4711745000
ref: 8
CUSHION,FRAME COVER
4711745000
€ 1.50
9-1
4721144210019
ref: 9-1
COVER,FRAME,LEFT
4721144210019
€ 52.00
9-2
472114421008H
ref: 9-2
COVER,FRAME,LEFT
€ 52.00
10
6814044220764
ref: 10
TAPE SET,FRAME COVER,LEFT
€ 16.50
11
4711745000
ref: 11
CUSHION,FRAME COVER
4711745000
€ 1.50
12
0932008018
ref: 12
CUSHION
0932008018
€ 4.00
13
6813144220
ref: 13
EMBLEM
6813144220
€ 25.00
14
0914803002
ref: 14
NUT
0914803002
€ 3.00
