FRAME COVER (MODEL X E22, E25)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

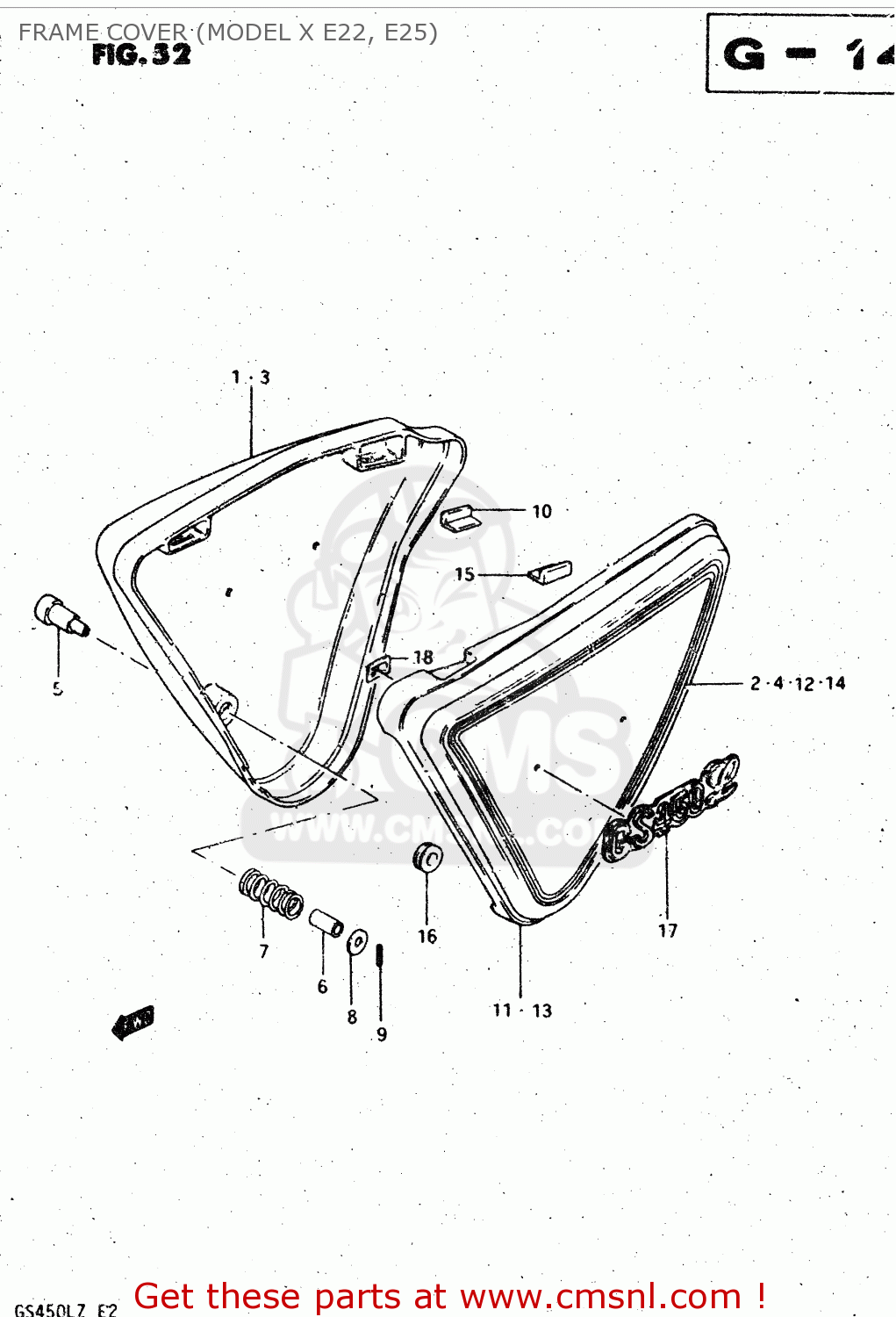

Frame cover (model x e22, e25) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRAME COVER (MODEL X E22, E25) GS450L 1980 (T) (E02 E21 E22 E24 E25)
FRAME COVER (MODEL X E22, E25) GS450L 1980 (T) (E02 E21 E22 E24 E25)
FRAME COVER (MODEL X E22, E25) GS450L 1980 (T) (E02 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
4711144210019
ref: 1
COVER,FRAME,RIGHT
€ 58.00
2
681304421066Y
ref: 2
TAPE SET,FRAME COVER
681304421066Y
€ 13.50
3
471114421000J
ref: 3
COVER,FRAME,RIGHT
471114421000J
€ 52.00
4
681304421071P
ref: 4
TAPE SET,FRAME COVER,RIGHT
€ 17.00
5
4713044200
ref: 5
KNOB,FRAME COVER,R
4713044200
€ 8.50
6
0918014009
ref: 6
SPACER(14.9X17.3X13.5)
0918014009
€ 5.50
7
0944020009
ref: 7
SPRING
0944020009
€ 2.50
8
0916006004
ref: 8
WASHER (6.5X24X1.6)
0916006004
€ 1.50
9
0920502011
ref: 9
PIN,SPRING(2.5X18)
0920502011
€ 1.50
10
4711745000
ref: 10
CUSHION,FRAME COVER
4711745000
€ 1.50
11
4721144210019
ref: 11
COVER,FRAME,LEFT
4721144210019
€ 52.00
12
681404421066Y
ref: 12
TAPE SET,FRAME COVER
€ 15.00
13
472114421000J
ref: 13
COVER,FRAME,LEFT
€ 52.00
14
681404421071P
ref: 14
TAPE SET,FRAME COVER,LEFT
€ 16.00
15
4711745000
ref: 15
CUSHION,FRAME COVER
4711745000
€ 1.50
16
0932008018
ref: 16
CUSHION
0932008018
€ 4.00
17
6813144220
ref: 17
EMBLEM
6813144220
€ 25.00
18
0914803002
ref: 18
NUT
0914803002
€ 3.00
