FRAME COVER (MODEL Z)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

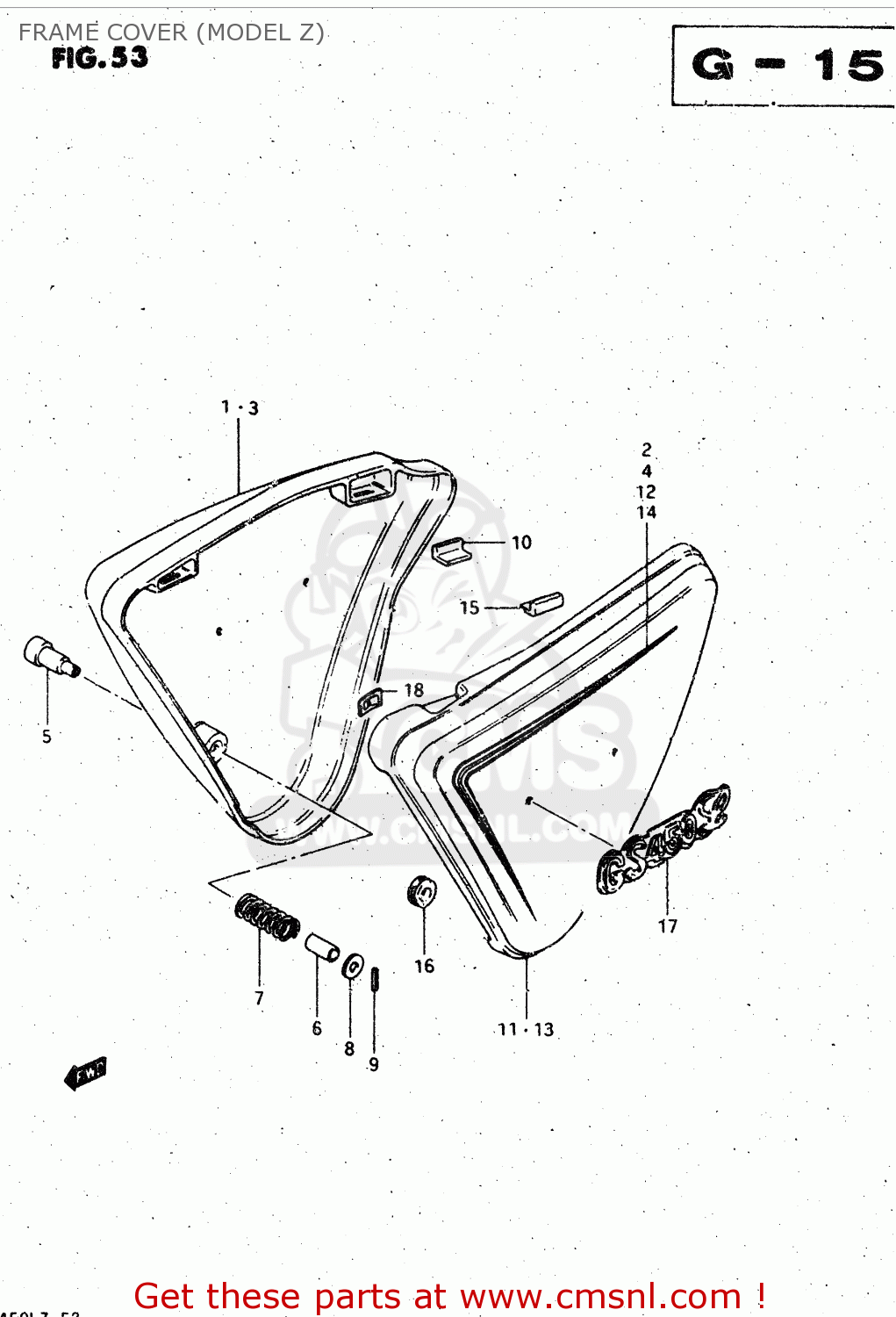

Frame cover (model z) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRAME COVER (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRAME COVER (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

4711144210019
ref: 1

COVER,FRAME,RIGHT

€ 58.00

2

6813044230998
ref: 2

TAPE SET,FRAME COVER

€ 11.50

3

471114421005L
ref: 3

COVER,FRAME,RIGHT

€ 52.00

4

681304423071F
ref: 4

TAPE SET,FRAME COVER,RIGHT

€ 12.50

5

4713044200
ref: 5

KNOB,FRAME COVER,R

€ 8.50

6

0918014009
ref: 6

SPACER(14.9X17.3X13.5)

€ 5.50

7

0944020009
ref: 7

SPRING

€ 2.50

8

0916006004
ref: 8

WASHER (6.5X24X1.6)

€ 1.50

9

0920502011
ref: 9

PIN,SPRING(2.5X18)

€ 1.50

10

4711745000
ref: 10

CUSHION,FRAME COVER

€ 1.50

11

4721144210019
ref: 11

COVER,FRAME,LEFT

€ 52.00

12

6814044230998
ref: 12

TAPE SET,FRAME COVER,LEFT

€ 14.50

13

472114421005L
ref: 13

COVER,FRAME,LEFT

€ 52.00

14

681404423071F
ref: 14

TAPE SET,FRAME COVER,LEFT

€ 13.50

15

4711745000
ref: 15

CUSHION,FRAME COVER

€ 1.50

16

0932008018
ref: 16

CUSHION

€ 4.00

17

6813144240
ref: 17

EMBLEM,FRAME COVER

€ 25.00

18

0914803002
ref: 18

NUT

€ 3.00
