RIGHT HANDLE SWITCH (MODEL T, X)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

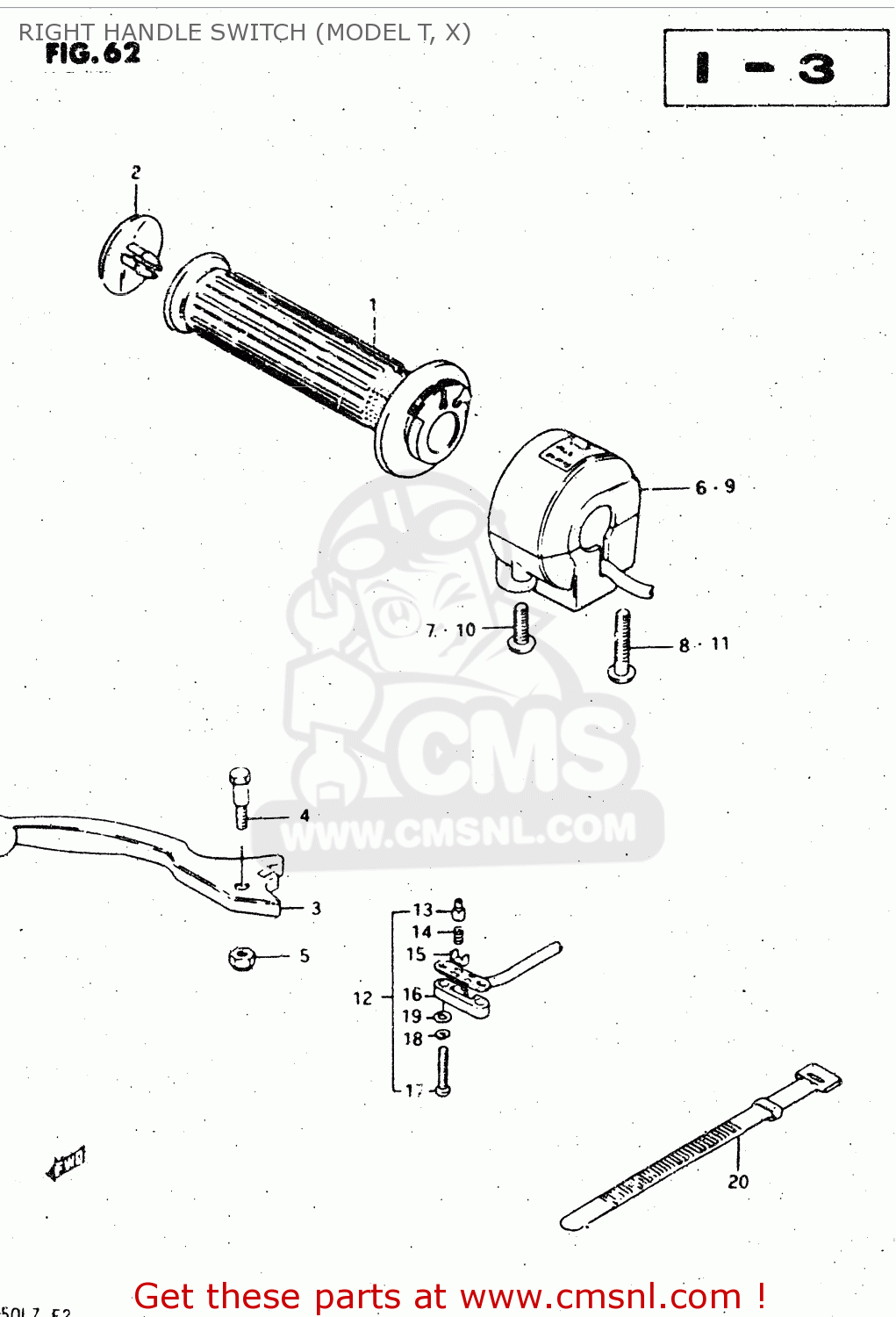

Right handle switch (model t, x) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

RIGHT HANDLE SWITCH (MODEL T, X) GS450L 1980 (T) (E02 E21 E22 E24 E25)

RIGHT HANDLE SWITCH (MODEL T, X) GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5721549100
ref: 2

CAP,GRIP END

€ 3.50

3

5742049101
ref: 3

LEVER,BRAKE

€ 36.50

4

5743118621
ref: 4

BOLT

€ 8.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

3720045210
ref: 6

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.50

7

0211205258
ref: 7

SCREW

€ 2.00

8

0211205358
ref: 8

SCREW

€ 1.50

9

3720045220
ref: 9
E22 E25 MODEL XE15,E

SWITCH ASSY, HANDLE RH

€ 118.50

10

0211205258
ref: 10
E22 E25 MODEL XE15,E

SCREW

€ 2.00

11

0211205358
ref: 11
E22 E25 MODEL XE15,E

SCREW

€ 1.50

12

5746049100
ref: 12
MODEL TE21,E22,E24,E

SWITCH ASSEMBLY

€ 40.00

13

5746118600
ref: 13
MODEL TE21,E22,E24,E

HOLDER

€ 4.50

14

5746218600
ref: 14
MODEL TE21,E22,E24,E

SPRING

€ 4.50

15

5746318600
ref: 15
MODEL TE21,E22,E24,E

PLATE

€ 4.50

16

5748133010
ref: 16
MODEL TE21,E22,E24,E

COVER,FR BK TERMINAL BASE

€ 19.50

17

0912503105
ref: 17
MODEL TE21,E22,E24,E

SCREW

€ 2.50

18

0832121038
ref: 18
MODEL TE21,E22,E24,E

LOCK WASHER

€ 1.50

19

0832221038
ref: 19
MODEL TE21,E22,E24,E

WASHER

€ 2.00

20

0940712402
ref: 20

CLAMP(L:120)

€ 3.00
