FRONT FORK (MODEL Z)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

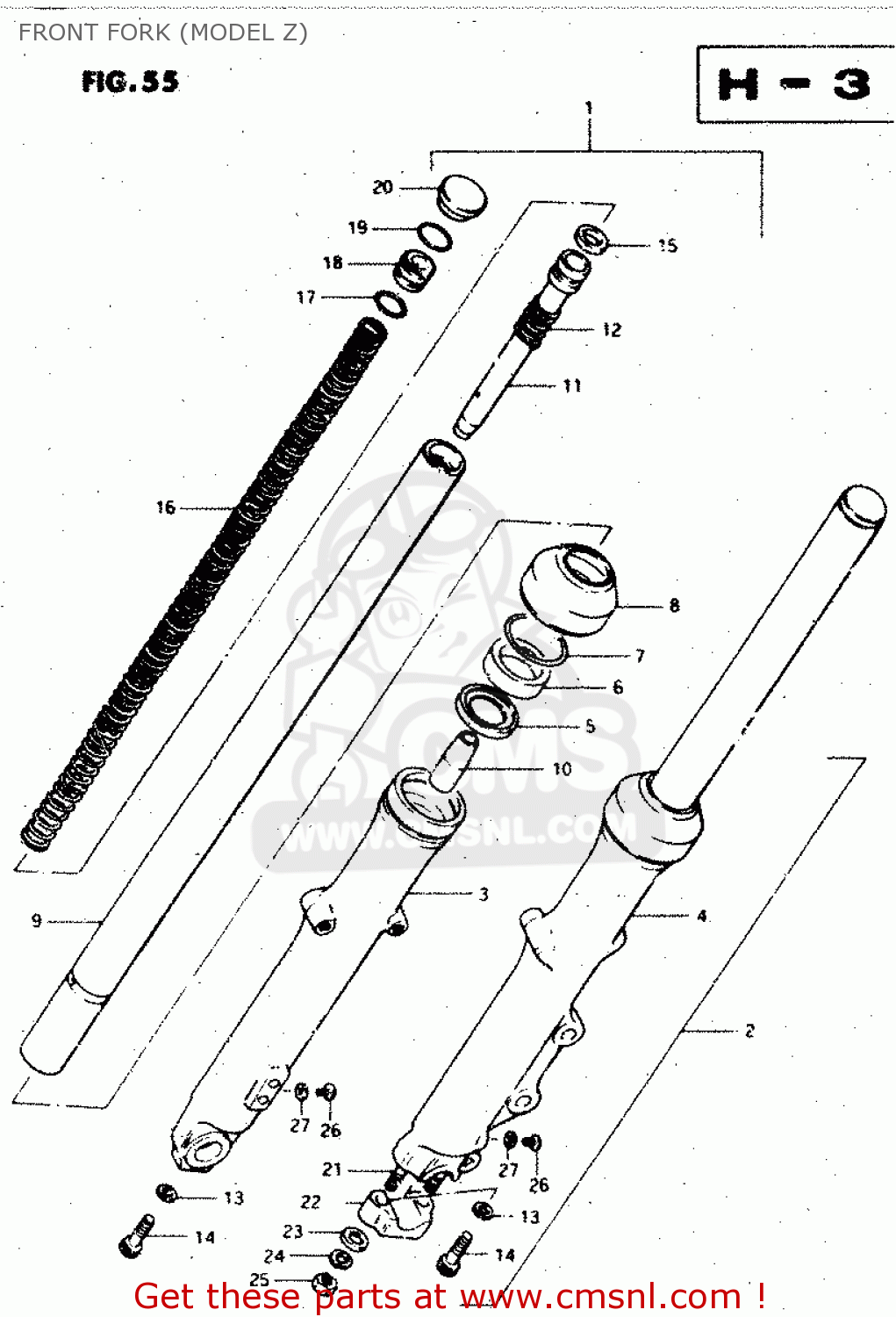

Front fork (model z) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRONT FORK (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRONT FORK (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

5110344211
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 307.50

2

5110444211
ref: 2

DUMPER ASSY, LH

€ 343.00

3

5113044211
ref: 3

OUTER TUBE, RH

€ 0.00

4

5114044211
ref: 4

OUTER TUBE, LH

€ 174.50

5

5116844030
ref: 5

SPACER,OIL SEAL

€ 4.50

6

5115337310
ref: 6

OIL SEAL,FRONT FORK

€ 15.00

7

5115633130
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157137310
ref: 8

DUST SEAL

€ 22.00

9

5111044211
ref: 9

TUBE,FORK,INNER

€ 132.00

10

5119548000
ref: 10

PIECE,OIL LOCK

€ 8.50

11

5114644731
ref: 11

CYLINDER,FRONT FORK

€ 42.00

12

5117736030
ref: 12

SPRING,REBOUND

€ 4.50

13

5114831030
ref: 13

GASKET (NAS)

€ 4.00

14

5114748130
ref: 14

BOLT(8X27)

€ 3.50

15

5119633130
ref: 15

RING,PISTON

€ 7.50

16

5117144210
ref: 16

SPRING

€ 0.00

17

5118133131
ref: 17

O RING

€ 5.00

18

5117548500
ref: 18

SEAT,SPRING

€ 9.00

19

5116948500
ref: 19

RING,STOPPER

€ 2.00

20

5118944300
ref: 20

CAP,FRONT FORK

€ 7.00

21

0142108258
ref: 21

STUD 8X25

€ 2.50

22

5113231030
ref: 22

HOLDER,AXLE

€ 31.50

23

0832221088
ref: 23

WASHER

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0914008005
ref: 25

NUT (8MM)

€ 1.50

26

0211204068
ref: 26

SCREW 4X6

€ 2.00

27

5118333030
ref: 27

GASKET (NAS)

€ 6.50
