MASTER CYLINDER (MODEL Z)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

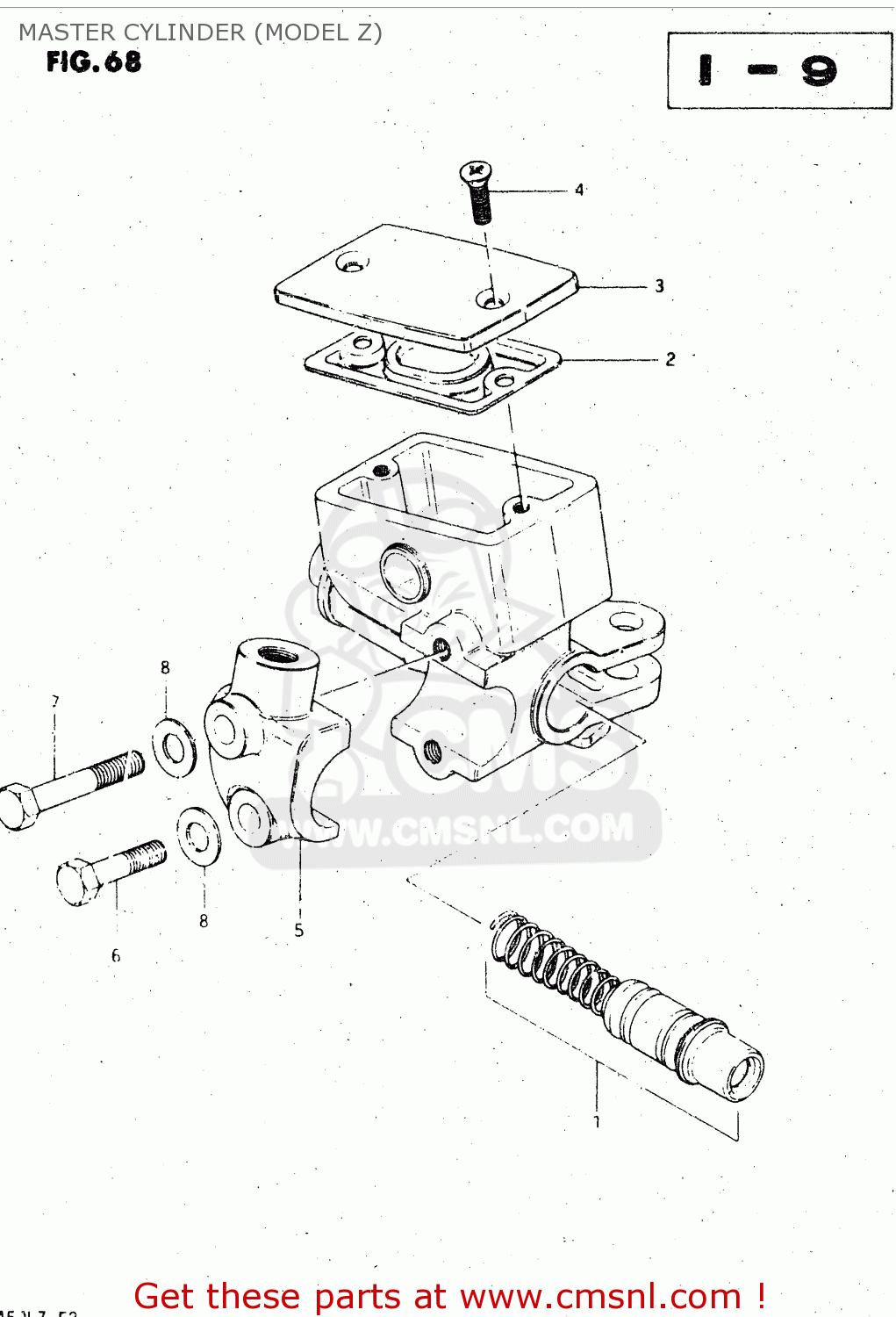

Master cylinder (model z) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

MASTER CYLINDER (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)

MASTER CYLINDER (MODEL Z) GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

0

5960044200
ref: 0

CYLINDER ASSEMBLY,MASTER

€ 206.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

69667
ref: 2

DIAPHRAGM

€ 0.00

3

6966949300
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706258
ref: 6

BOLT

€ 2.00

7

0110706408
ref: 7

BOLT 6X40

€ 2.00

8

0832121068
ref: 8

LOCK WASHER

€ 2.50
