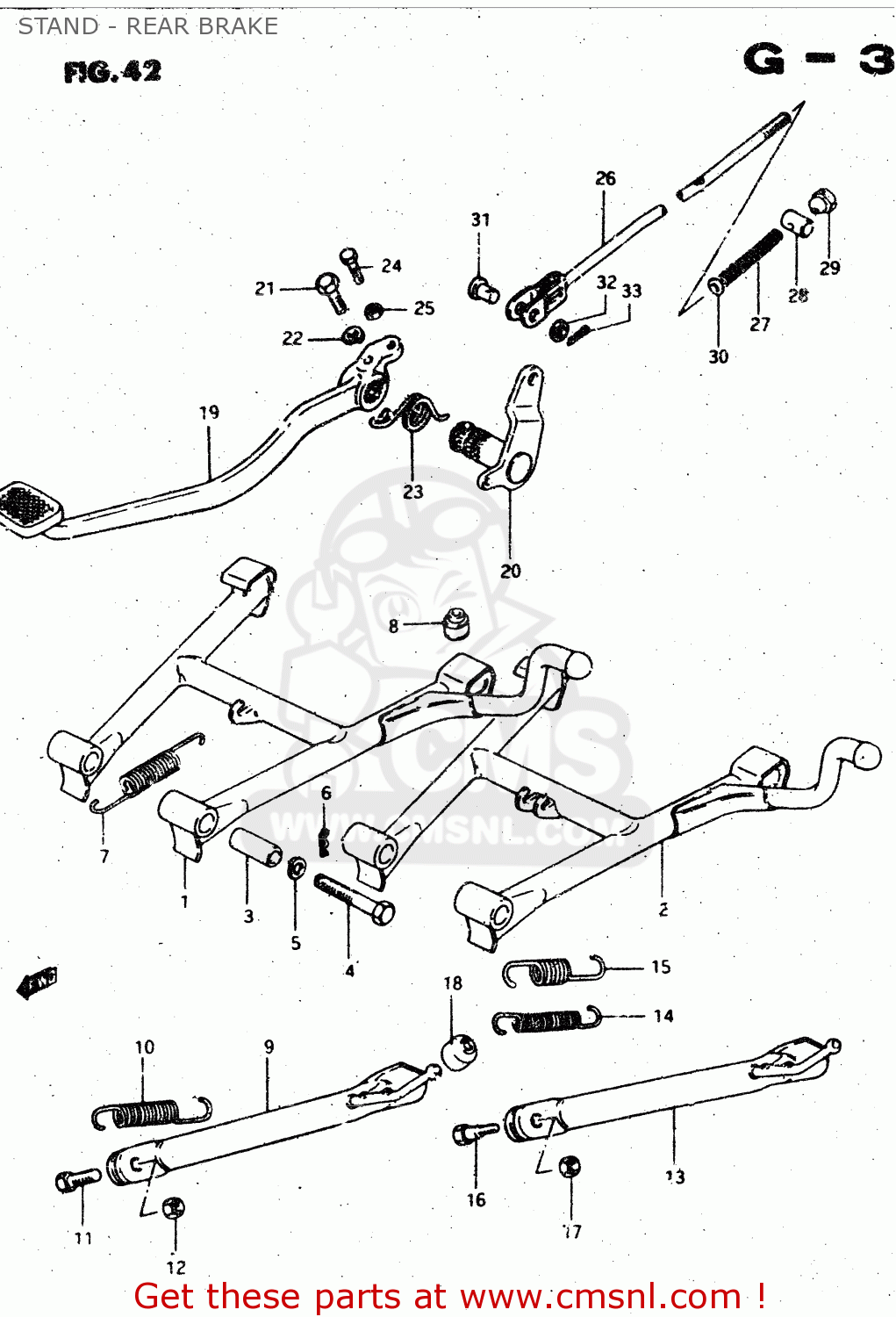

STAND - REAR BRAKE - GS450L 1980 (T) (E02 E21 E22 E24 E25)

ref

part #

description

quantity

1

4210044100
ref: 1

STAND,CENTER

€ 80.50

2

4210044110
ref: 2
MODEL T,X E22 MODEL

STAND, CENTER

€ 0.00

3

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

4

0910110018
ref: 4

BOLT

€ 5.50

5

0832121108
ref: 5

LOCK WASHER

€ 2.00

6

0938510001
ref: 6

CLIP

€ 1.50

7-1

0944318003
ref: 7-1

SPRING

€ 5.50

7-2

0944318003
ref: 7-2
MODEL T,X E22 MODEL

SPRING

€ 5.50

8

0932110001
ref: 8

CUSHION

€ 2.50

9

4231044100
ref: 9

STAND,SIDE

€ 29.00

10

0944317005
ref: 10

SPRING

€ 11.50

11

0910010067
ref: 11

BOLT(10X30)

€ 3.50

12

0831022108
ref: 12

NUT

€ 2.50

13

4231044110
ref: 13
MODEL T,X E22 MODEL

STAND, PROP

€ 31.50

14

0944311008
ref: 14
MODEL T,X E22 MODEL

SPRING

€ 5.50

15

0944319002
ref: 15
MODEL T,X E22 MODEL

SPRING, OUTER

€ 4.00

16

0911110013
ref: 16
MODEL T,X E22 MODEL

BOLT

€ 4.50

17

0831022108
ref: 17
MODEL T,X E22 MODEL

NUT

€ 2.50

18

0932007001
ref: 18

CUSHION

€ 4.00

19

4311044200
ref: 19

PEDAL,BRAKE

€ 49.00

20

4312044200
ref: 20

ARM,BRAKE PEDAL ROD

€ 23.50

21

0110708298
ref: 21

BOLT

€ 0.00

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0944837016
ref: 23

SPRING

€ 4.50

24

0110706208
ref: 24

BOLT

€ 2.00

25

0831011068
ref: 25

NUT

€ 2.50

26-1

4330044200
ref: 26-1

ROD ASSEMBLY,REAR BRAKE

€ 13.50

26-2

4330044210
ref: 26-2
MODEL T,X E22

ROD ASSY, REAR BRAKE

€ 0.00

27

0944009004
ref: 27

SPRING

€ 2.00

28

0920913003
ref: 28

PIN

€ 3.50

29

0915006001
ref: 29

NUT

€ 3.50

30

0832221068
ref: 30

WASHER

€ 2.00

31

0920006013
ref: 31

PIN(L:13.5)

€ 2.00

32

0832221068
ref: 32

WASHER

€ 2.00

33

0411120208
ref: 33

PIN 20X20

€ 1.50

STAND - REAR BRAKE
