FUEL COCK

GS450L 1980 (T) (E02 E21 E22 E24 E25)

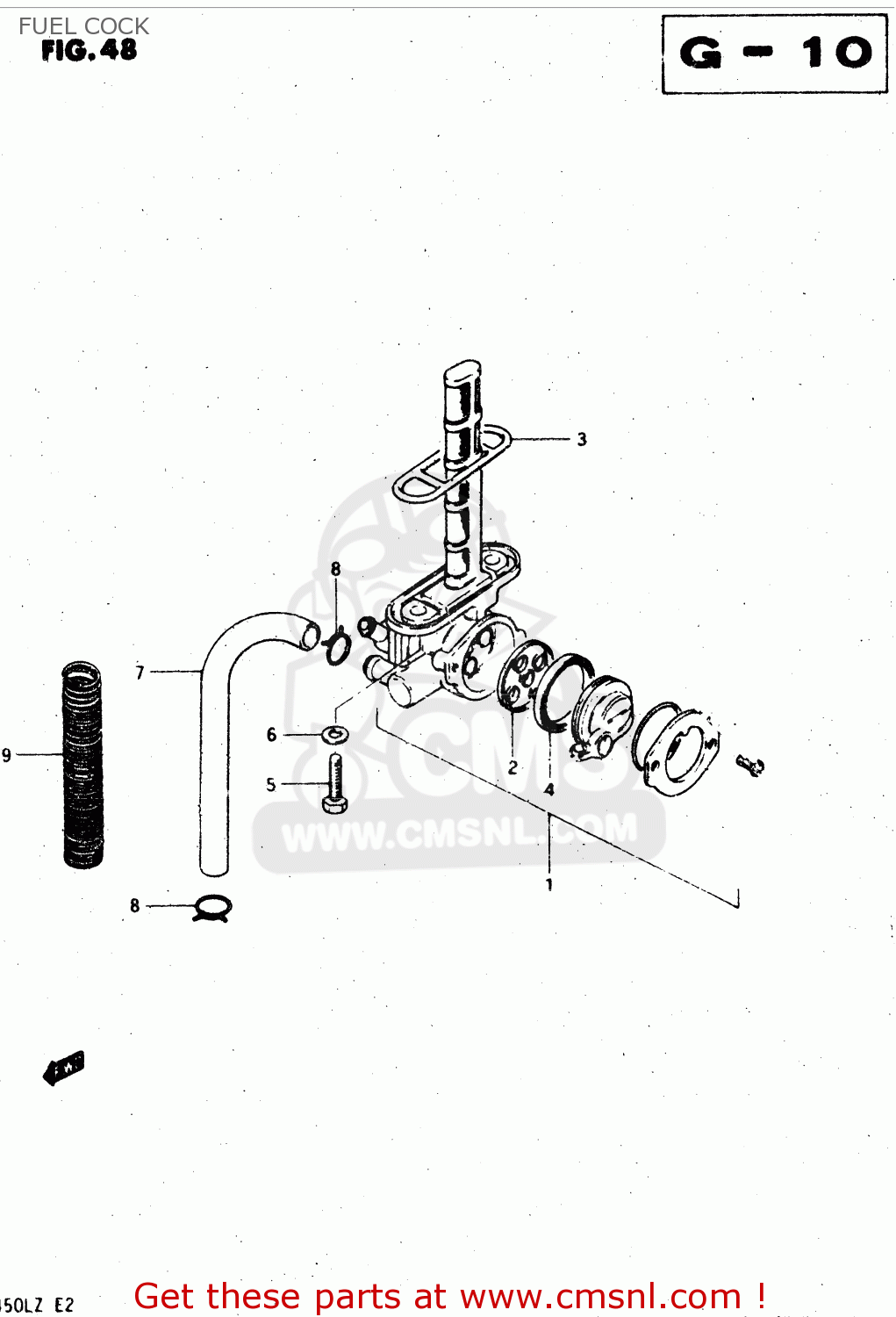

Fuel cock diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FUEL COCK GS450L 1980 (T) (E02 E21 E22 E24 E25)

FUEL COCK GS450L 1980 (T) (E02 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

4430044250
ref: 1

COCK ASSY,FUEL

€ 102.50

2

4434133150
ref: 2

GASKET (NAS)

€ 3.00

3

4434831051
ref: 3

GASKET, FUEL COCK (NAS)

€ 14.50

4

4435333154
ref: 4

V SEAL,FUEL COCK

€ 7.00

5

0912806005
ref: 5

SCREW

€ 2.50

6

0916806010
ref: 6

GASKET

€ 2.00

7-1

0934307026
ref: 7-1
MODEL T,X

HOSE

€ 17.50

7-2

0934307073
ref: 7-2
MODEL Z

HOSE

€ 17.50

8

0940110403
ref: 8

CLIP

€ 7.00

9

0944013016
ref: 9

SPRING

€ 14.50
