FRONT BRAKE HOSE

GS450L 1980 (T) (E02 E21 E22 E24 E25)

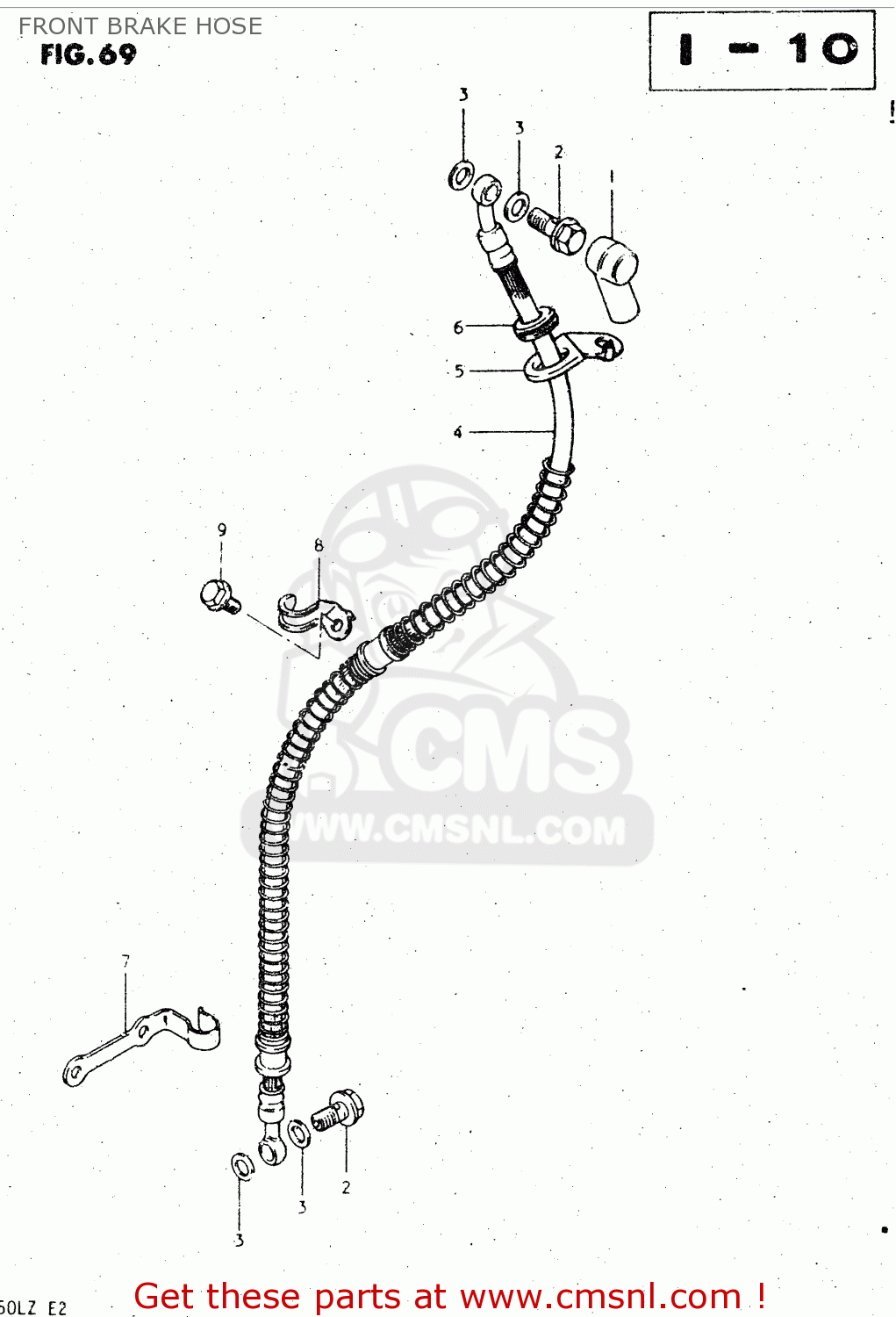

Front brake hose diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

FRONT BRAKE HOSE GS450L 1980 (T) (E02 E21 E22 E24 E25)
FRONT BRAKE HOSE GS450L 1980 (T) (E02 E21 E22 E24 E25)
FRONT BRAKE HOSE GS450L 1980 (T) (E02 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
5971118400
ref: 1
BOOT,MASTER CYLINDER
5971118400
€ 8.50
2
0936010007
ref: 2
BOLT,UNION
0936010007
€ 6.50
3
0916110005
ref: 3
WASHER
0916110005
€ 2.00
4-1
5948044200
ref: 4-1
MODEL T,TO 59480-442
HOSE,FRONT BRAKE
€ 67.00
4-2
5948044210
ref: 4-2
MODEL X,Z
HOSE,FRONT BRAKE
5948044210
€ 69.00
5-1
5924345010
ref: 5-1
GUIDE,BRAKE HOSE
€ 8.50
5-2
5924345000
ref: 5-2
WITH 09308-14007
GUIDE,BRAKE HOSE
5924345000
€ 8.50
6
0930814007
ref: 6
WITH 59243-45000
GROMMET
0930814007
€ 4.00
7
5926849001
ref: 7
GUIDE,BRAKE HOSE NO.2
5926849001
€ 7.00
8
5924611400
ref: 8
GUIDE,BRAKE HOSE NO.3
5924611400
€ 4.50
9
0151706108
ref: 9
BOLT
0151706108
€ 2.50
