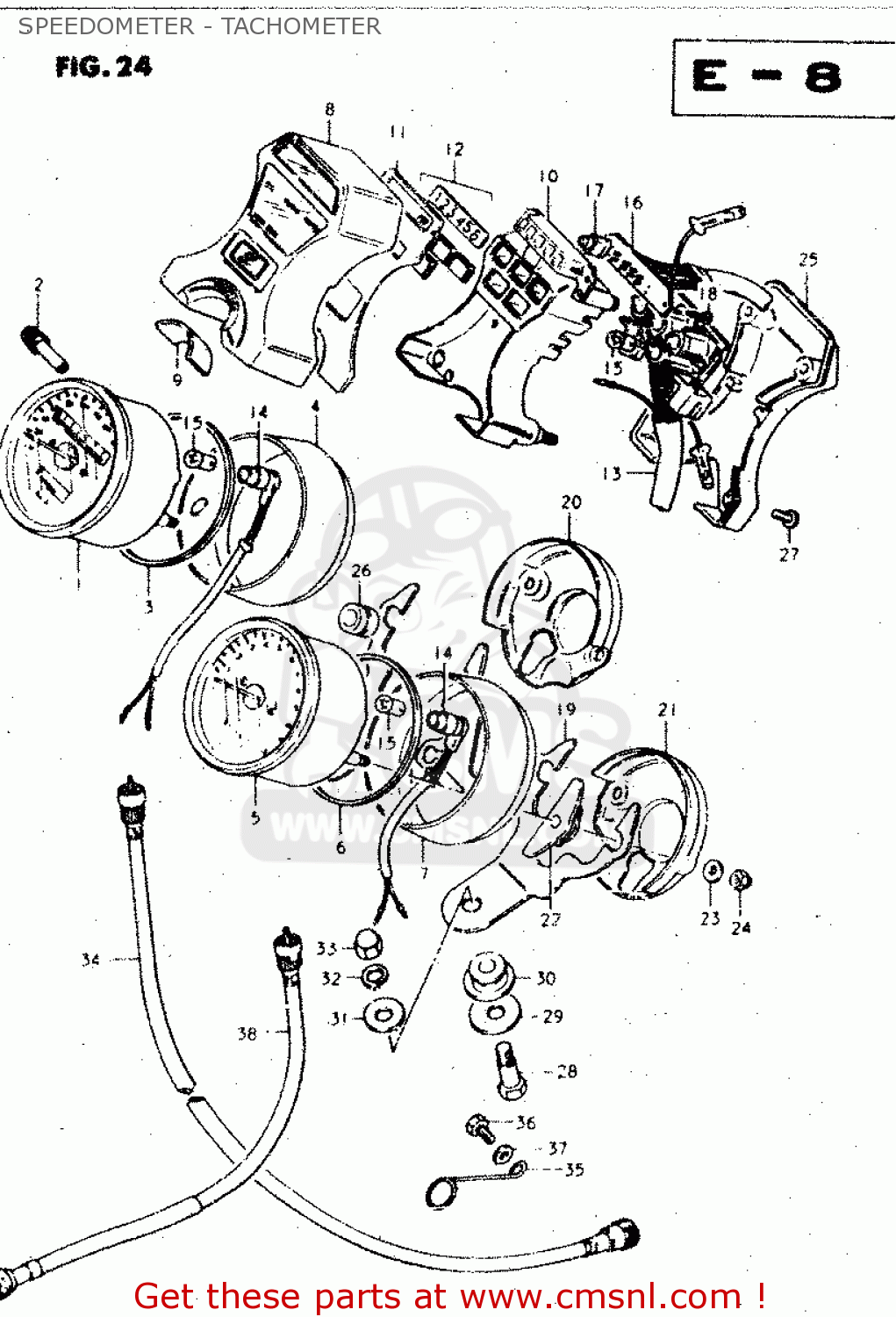

SPEEDOMETER - TACHOMETER - GS450L 1980 (T) (E02 E21 E22 E24 E25)

ref

part #

description

quantity

1-1

3411044230
ref: 1-1

SPEEDOMETER ASSEMBLY

€ 0.00

1-2

3411044200
ref: 1-2
E15,E21,E22,E24,E25,

SPEEDOMETER (KILO)

€ 300.50

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418945300
ref: 3

CUSHION

€ 10.00

4

3415145300
ref: 4

COVER,SPEEDOMETER

€ 16.00

5

3421047241
ref: 5

TACH0METER

€ 288.00

6

3418945300
ref: 6

CUSHION

€ 10.00

7

3425145300
ref: 7

COVER,TACHOMETER

€ 12.00

8

3638144200
ref: 8

CASE,PILOT BOX,OUTER

€ 48.00

9

3499347000
ref: 9

SEAL,IGNITION SWITCH

€ 3.00

10-1

3638245300
ref: 10-1
MODEL T,X

CASE, PILOT BOX INNER

€ 27.00

10-2

3638245301
ref: 10-2
MODEL Z

CASE,PILOT BOX,INNER

€ 27.00

11

3638645300
ref: 11

PLATE,PILOT BOX

€ 6.50

12-1

3630045810
ref: 12-1
MODEL T,X

LENS SET,PILOT

€ 22.50

12-2

3630045811
ref: 12-2
MODEL Z

LENS SET,PILOT LAMP

€ 22.50

13-1

3632544200
ref: 13-1

SOCKET

€ 61.00

13-2

3632544201
ref: 13-2
FOR WEDGE BASE BULB

SOCKET

€ 61.00

14-1

3417345301
ref: 14-1

SOCKET,METER

€ 15.50

14-2

3417344310
ref: 14-2
FOR WEDGE BASE BULB

SOCKET,METER

€ 15.50

15-1

0947112001
ref: 15-1

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

15-2

0947112028
ref: 15-2
WEDGE BASE BULB

BULB(12V3.4W,T10)

€ 3.50

16

3645347200
ref: 16

INDICATOR ASSEMBLY,GEAR POSITION

€ 106.50

17-1

0947112071
ref: 17-1
MODEL T,X

BULB(14V1.12W)

€ 5.00

17-2

0947112078
ref: 17-2
MODEL Z

BULB(14V1.12W,BQ041-32503B)

€ 6.50

18

3645745100
ref: 18

SCREW

€ 2.00

19

3495044200
ref: 19

BRACKET,COMBINATION METER

€ 45.00

20

3419345300
ref: 20

ORNAMENT,SPEEDOMETER

€ 35.50

21

3429345300
ref: 21

COVER,TACHOMETER

€ 35.50

22

3419145300
ref: 22

CUSHION,METER

€ 3.50

23

0832221058
ref: 23

WASHER

€ 2.50

24

0831311057
ref: 24

NUT

€ 1.50

25

3638345300
ref: 25

COVER,PILOT BOX,UNDER

€ 41.50

26

3638445300
ref: 26

CUSHION,PILOT BOX

€ 3.50

27

3638745300
ref: 27

SCREW,PILOT BOX

€ 2.00

28

0911108031
ref: 28

BOLT(8X31)

€ 4.00

29

0916010028
ref: 29

WASHER

€ 2.00

30-1

3495631000
ref: 30-1

CUSHION,METER

€ 4.50

30-2

3495631001
ref: 30-2
MODEL X,Z

CUSHION,METER BRACKET

€ 4.50

31

0916008047
ref: 31

WASHER(8.5X23X1.2)

€ 2.00

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0831311088
ref: 33

NUT

€ 2.50

34-1

3491045222
ref: 34-1
MODEL T,FROM 34910-4

CABLE ASSEMBLY,SPEEDOMETER

€ 25.00

34-2

3491045113
ref: 34-2
MODEL X,Z

CABLE ASSEMBLY,SPEEDOMETER

€ 31.50

35

3493845100
ref: 35

CLAMP,SPEEDOMETER CABLE

€ 14.50

36

0110706168
ref: 36

BOLT, UPPER

€ 3.00

37

0832221068
ref: 37

WASHER

€ 2.00

38-1

3494047032
ref: 38-1
MODEL T,FROM 34940-4

CABLE ASSEMBLY,TACHOMETER

€ 20.50

38-2

3494044111
ref: 38-2
MODEL X,Z

CABLE ASSEMBLY,TACHOMETER

€ 49.00

SPEEDOMETER - TACHOMETER

all assemblies
