HEADLAMP (E15, E21, E22, E25, E34, E39)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

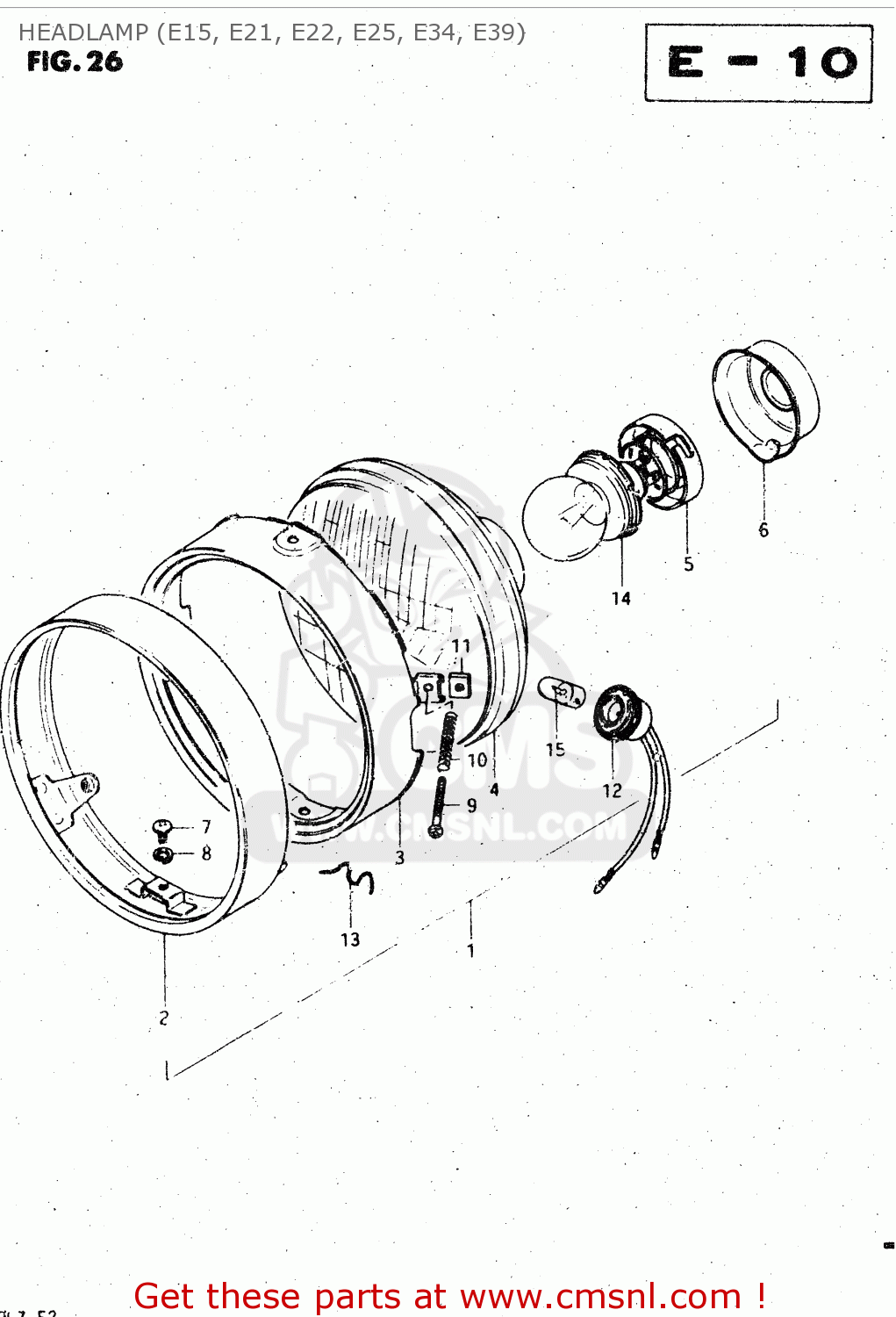

Headlamp (e15, e21, e22, e25, e34, e39) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

HEADLAMP (E15, E21, E22, E25, E34, E39) GS450L 1980 (T) (E02 E21 E22 E24 E25)
HEADLAMP (E15, E21, E22, E25, E34, E39) GS450L 1980 (T) (E02 E21 E22 E24 E25)
HEADLAMP (E15, E21, E22, E25, E34, E39) GS450L 1980 (T) (E02 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
3510044260999
ref: 1
HEADLAMP ASSY
€ 138.50
2
3511144250
ref: 2
RIM
3511144250
€ 34.50
3
3512729610
ref: 3
RETAINER
3512729610
€ 15.50
4
3512144260
ref: 4
LAMP UNIT
3512144260
€ 67.00
5
3513634670
ref: 5
SETTER,BULB
3513634670
€ 4.00
6
3517972600
ref: 6
COVER,HEADLAMP BULB
3517972600
€ 4.00
7
3513629610
ref: 7
SCREW
3513629610
€ 3.00
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
3515131610
ref: 9
SCREW
3515131610
€ 4.00
10
3515433630
ref: 10
SPRING
3515433630
€ 2.50
11
3515215611
ref: 11
NUT
3515215611
€ 3.50
12
3611830500
ref: 12
SOCKET
3611830500
€ 10.00
13
3512846790
ref: 13
SPRING
3512846790
€ 4.50
14
0947112048
ref: 14
EXECUTED LOCALLY
BULB(12V45/40W)
0947112048
€ 7.50
15
0947112063
ref: 15
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 6.00
16
0912705013
ref: 16
SCREW(5X12)
0912705013
€ 2.50
