MASTER CYLINDER (MODEL T, X)

GS450L 1980 (T) (E02 E21 E22 E24 E25)

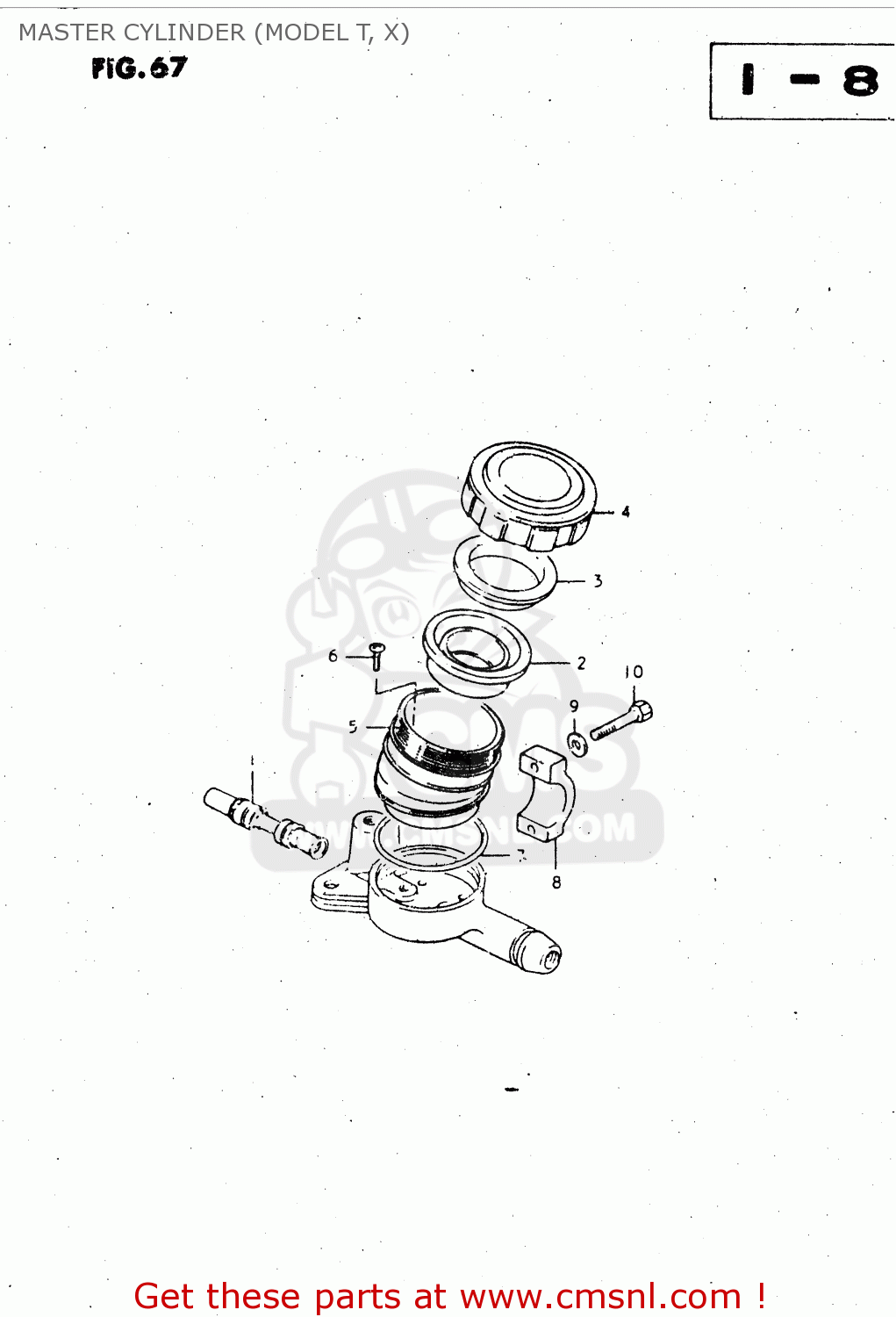

Master cylinder (model t, x) diagram GS450L 1980 (T) (E02 E21 E22 E24 E25)

MASTER CYLINDER (MODEL T, X) GS450L 1980 (T) (E02 E21 E22 E24 E25)
MASTER CYLINDER (MODEL T, X) GS450L 1980 (T) (E02 E21 E22 E24 E25)
MASTER CYLINDER (MODEL T, X) GS450L 1980 (T) (E02 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
0
5960045070
ref: 0
CYLINDER ASSY, MASTER
€ 235.50
1-1
5960045820
ref: 1-1
MODEL T,TO 59600-458
CUP SET,MASTER CYLINDER
€ 44.50
1-2
5960045821
ref: 1-2
MODEL X
PISTON & CUP SET
5960045821
€ 44.50
2
5966718441
ref: 2
DIAPHRAGM
5966718441
€ 8.50
3
5966818441
ref: 3
PLATE,DIAPHRAGM
5966818441
€ 3.50
4
5966933621
ref: 4
CAP
5966933621
€ 35.00
5
5968745050
ref: 5
RESERVOIR
5968745050
€ 18.50
6
5968833601
ref: 6
SCREW,MASTER CYLINDER
5968833601
€ 2.00
7
5968633600
ref: 7
O RING
5968633600
€ 14.00
8
5967118441
ref: 8
HOLDER,MASTER CYLINDER
5967118441
€ 5.50
9
0832221068
ref: 9
WASHER
0832221068
€ 2.00
10
0110706258
ref: 10
BOLT
€ 2.00
