CHAIN LOCK

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

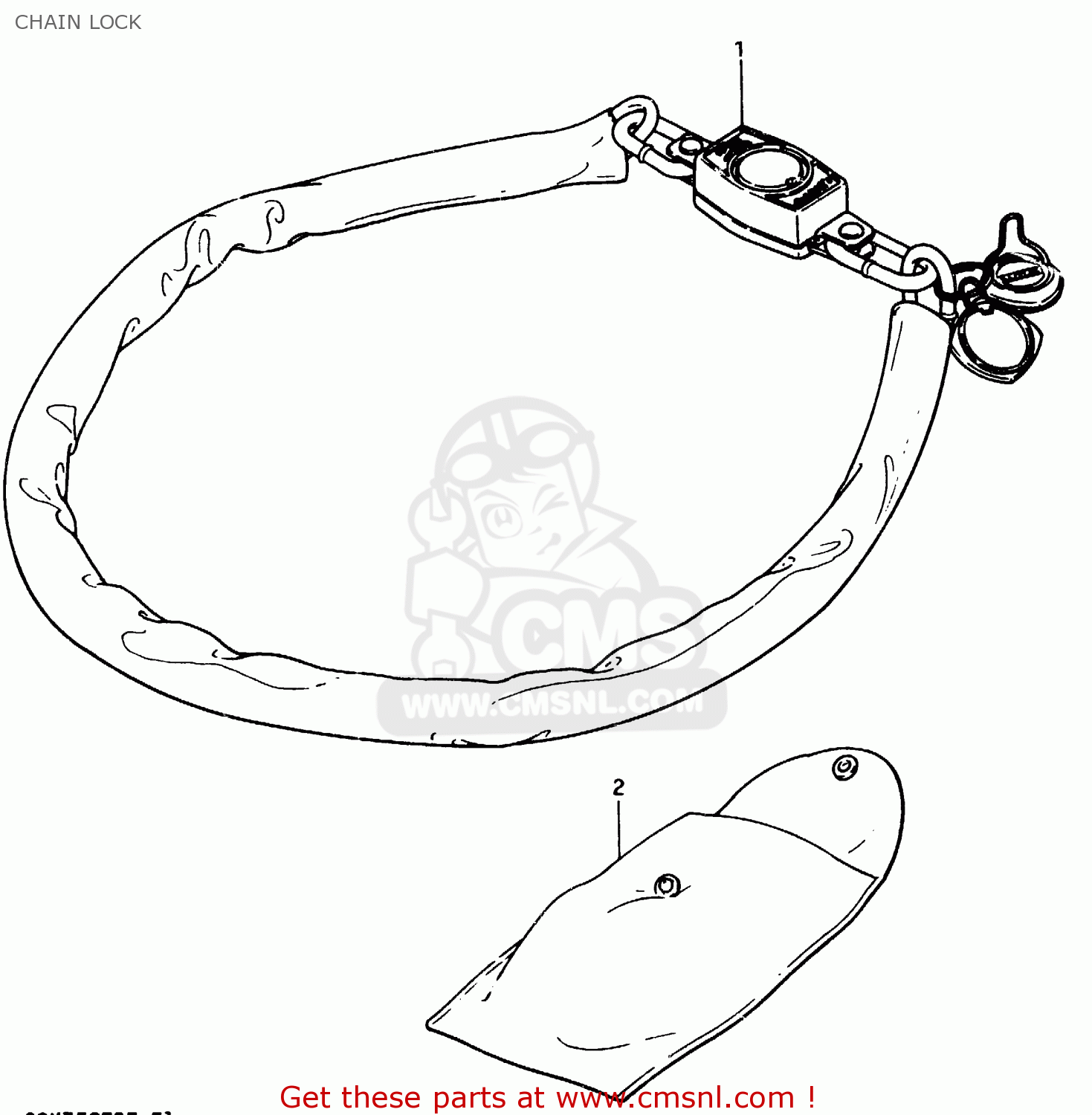

Chain lock diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CHAIN LOCK GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CHAIN LOCK GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

9414015501KEY
ref: 1

CHAIN LOCK ASSY

€ 53.50

2

9414131301
ref: 2

BAG,CHAIN LOCK

€ 0.00
