STEERING STEM (MODEL D)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

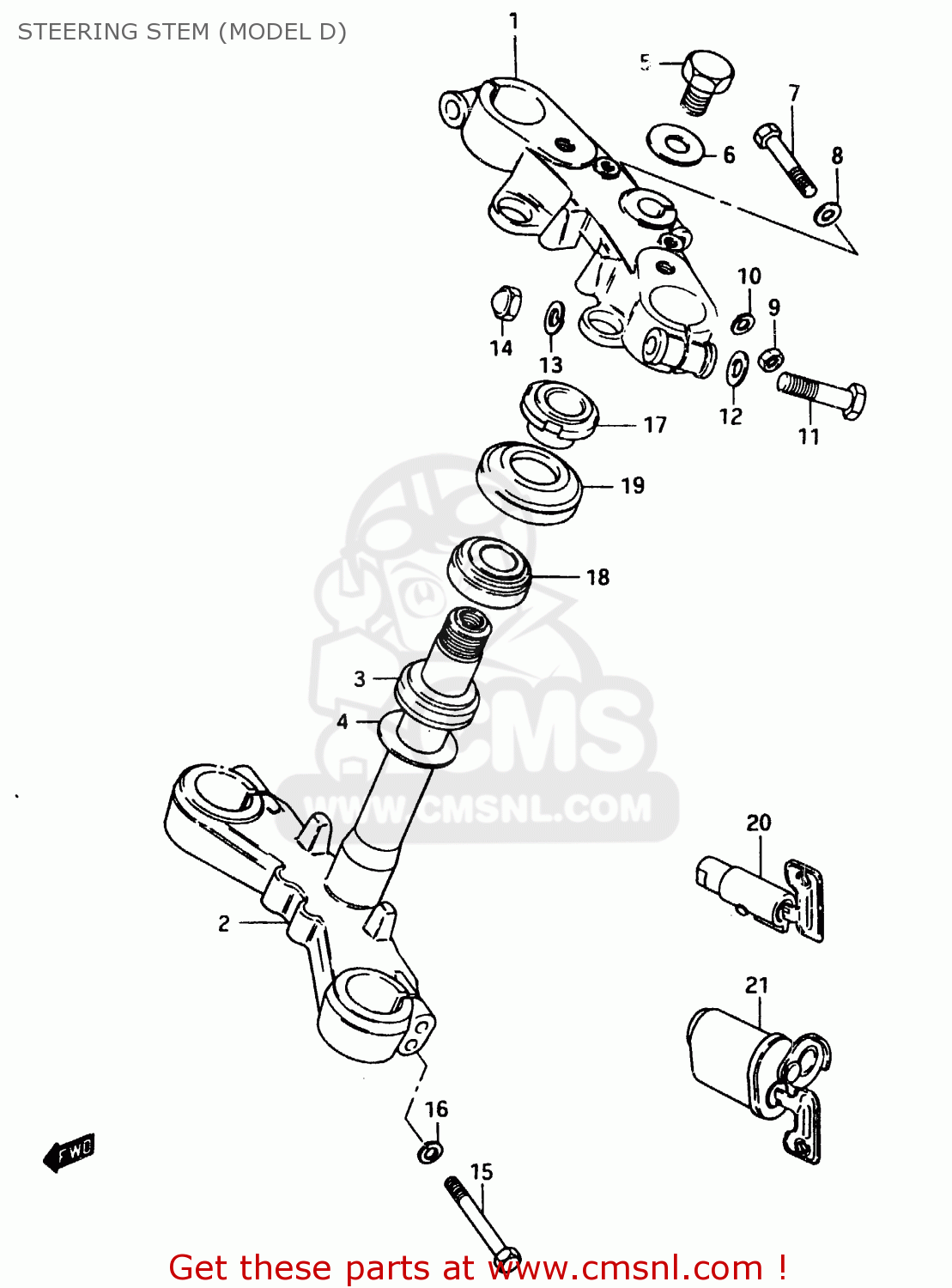

Steering stem (model d) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

STEERING STEM (MODEL D) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
STEERING STEM (MODEL D) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
STEERING STEM (MODEL D) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
513113130015T
ref: 1
BLACK
HEAD,STEERING STEM
513113130015T
€ 162.50
2
514103133015T
ref: 2
BLACK
STEM,STEERING
514103133015T
€ 210.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5135209300
ref: 5
BOLT,STEERING STEM HEAD
€ 11.50
6
5135609300
ref: 6
WASHER
€ 4.00
7
0110708505
ref: 7
BOLT
€ 3.00
8
0832211085
ref: 8
WASHER,8.5X16X
€ 1.50
9
0831022085
ref: 9
NUT 8MM
0831022085
€ 2.00
10
0832121085
ref: 10
LOCK WASHER
€ 2.50
11
0110710555
ref: 11
BOLT 10X55
€ 3.50
12
0832221105
ref: 12
WASHER 10MM
€ 2.50
13
0832121105
ref: 13
LOCK WASHER
€ 3.00
14
0914510002
ref: 14
NUT
0914510002
€ 4.00
15
0110708405
ref: 15
BOLT 8X40
0110708405
€ 3.00
16
0832121085
ref: 16
LOCK WASHER
€ 2.50
17
5163134200
ref: 17
NUT,STEERING STEM
5163134200
€ 23.00
18
0926525008
ref: 18
TAPER,ROLLER BEARING
0926525008
€ 48.50
19
5164340502
ref: 19
DUST SEAL,STEERING UPR
5164340502
€ 8.00
20
5190022662
ref: 20
E22,E26
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
21
5190045400
ref: 21
E15,E17
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
