REAR WHEEL (MODEL E)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

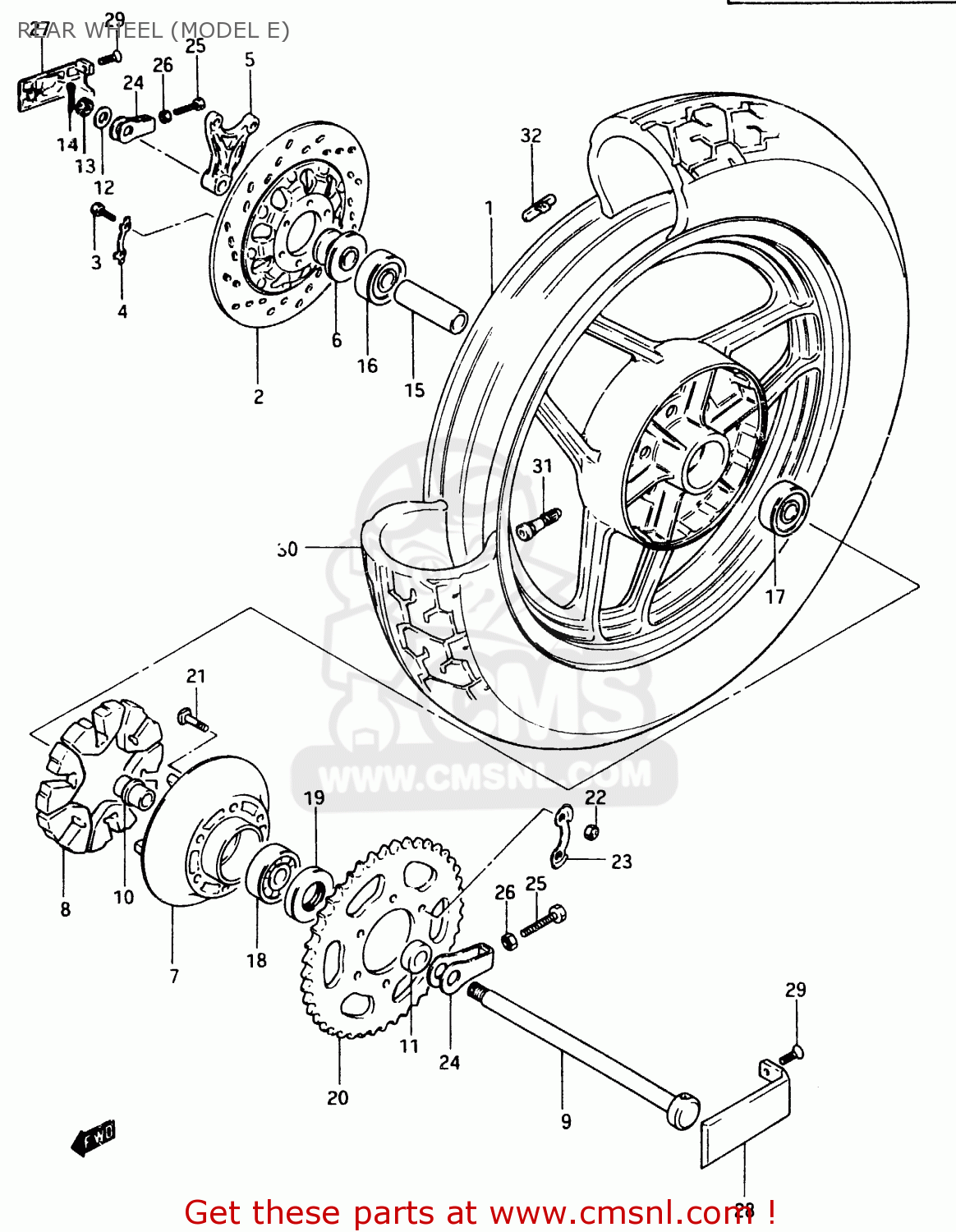

Rear wheel (model e) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR WHEEL (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR WHEEL (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

641113130019T
ref: 1

CASTING WHEEL,GOLD

€ 299.00

2

6921031300
ref: 2

DISC,BRAKE

€ 258.00

3

0910008094
ref: 3

BOLT(8X30)

€ 2.50

4

0916908016
ref: 4

WASHER

€ 3.50

5

6972131300
ref: 5

BRACKET,REAR CALIPER

€ 34.00

6

6474031300
ref: 6

SPACER,REAR AXLE

€ 9.00

7

6461131001
ref: 7

DRUM,REAR SPROCKET MOUNT

€ 140.00

8

6465131000
ref: 8

ABSORBER,REAR HUB SHOCK

€ 9.50

9

6471131300
ref: 9

AXLE,REAR

€ 33.50

10

6473331300
ref: 10

RETAINER,RR SPROCKET DRUM

€ 16.50

11

0918017066
ref: 11

SPACER(17X33X11.3)

€ 6.00

12

0832211168
ref: 12

WASHER

€ 2.00

13

0831441168
ref: 13

NUT

€ 4.50

14

0411140308
ref: 14

PIN,COTTER

€ 1.50

15

0918017067
ref: 15

SPACER(17.5X25X88)

€ 13.50

16

0813363037
ref: 16

BEARING

€ 28.50

17

0815363037
ref: 17

BEARING

€ 19.50

18

0811363050
ref: 18

BEARING

€ 21.50

19

0928533001
ref: 19

SEAL,OIL(33X62X7)

€ 20.00

20

6451147640
ref: 20

SPROCKET,REAR

€ 114.50

21

0910510001
ref: 21

BOLT(10X35.5)

€ 3.50

22

0914010026
ref: 22

NUT

€ 2.00

23

0916910007
ref: 23

WASHER

€ 7.50

24

6141031300
ref: 24

ADJUSTER,CHAIN

€ 9.50

25

0910408018
ref: 25

BOLT 8X50

€ 3.00

26

0831012088
ref: 26

NUT

€ 2.00

27

6144131300
ref: 27

COVER,CHAIN ADJUSTER,R

€ 29.00

28

6145131300
ref: 28

COVER,REAR AXLE,LEFT

€ 28.50

29

0213205167
ref: 29

SCREW 5X16

€ 2.00

30

6510031395
ref: 30
MICHELIN

TIRE, REAR (120/90-17 64H)

€ 139.50

31

4313075150
ref: 31

VALVE,TIRE

€ 14.50

32

5541100A0019T
ref: 32

BALANCER,WHEEL

€ 6.50

32

5541200A0019T
ref: 32

BALANCER,WHEEL

€ 7.00

32

5541300A0019T
ref: 32

BALANCER,WHEEL

€ 4.00
