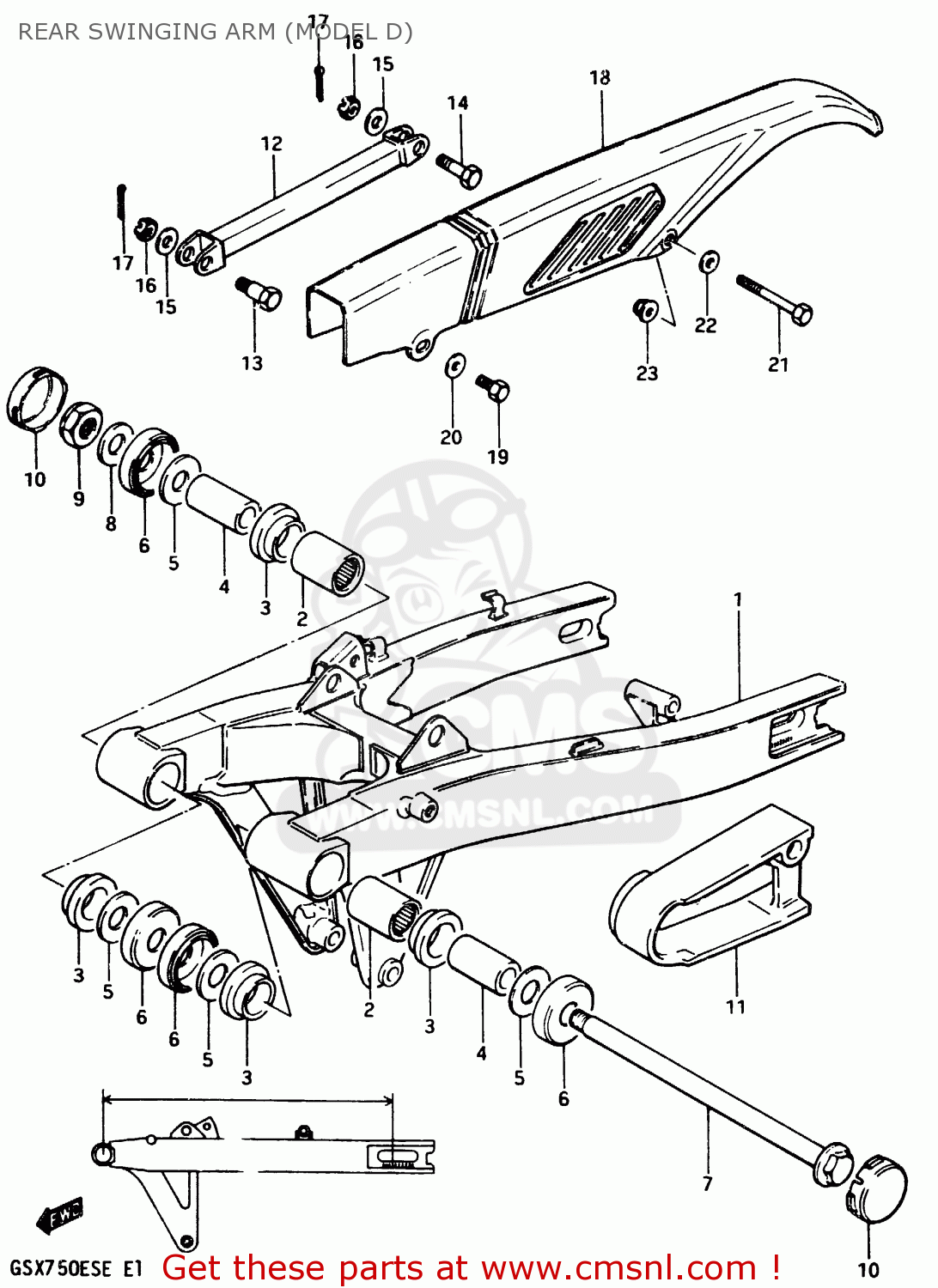

REAR SWINGING ARM (MODEL D)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

Rear swinging arm (model d) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR SWINGING ARM (MODEL D) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR SWINGING ARM (MODEL D) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

6100031301
ref: 1
L:558,TO 61000-31310

SWING ARM ASSEMBLY,REAR

€ 306.00

1

6100031310
ref: 1
L:565,WITH 64310-313

SWINGING ARM SET

€ 527.50

1

6100031312
ref: 1
L:571,WITH 69480-313

SWINGING ARM SET

€ 527.50

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

6126131300
ref: 3
WITH 61000-31311

BUSHING

€ 21.00

4

6125131300
ref: 4

SPACER,RR SWGARM PIVOT

€ 21.00

5

0821116381
ref: 5

WASHER

€ 2.50

6

6126249201
ref: 6

COVER,RR SWINGINGARM PIVOT

€ 8.50

7

6121131310
ref: 7

SHAFT,REAR SWING ARM

€ 38.50

8

0832211148
ref: 8

WASHER

€ 2.00

9

0915914013
ref: 9

NUT

€ 8.50

10

6122231300
ref: 10

CAP,PIVOT

€ 7.00

11

6127331310
ref: 11

BUFFER,CHAIN TOUCH DEFLECTOR

€ 26.00

12

6431031300291
ref: 12
L:280

TORQUE LINK,REAR

€ 13.00

12

6431031310291
ref: 12
L:295,WITH 61000-313

TORQUE LINK,REAR

€ 18.50

13

0911110011
ref: 13

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211108
ref: 15

WASHER

€ 2.50

16

0831441108
ref: 16

NUT

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50

18

6131031300291
ref: 18

CASE,CHAIN

€ 109.50

19

0110706108
ref: 19

BOLT

€ 2.00

20

0916906036
ref: 20

WASHER

€ 2.50

21

0110706608
ref: 21

BOLT 6X60

€ 2.50

22

0916006039
ref: 22

WASHER (6.5X18X1.6)

€ 2.00

23

0831921068
ref: 23

NUT 6MM

€ 2.00
