FRONT CALIPERS

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

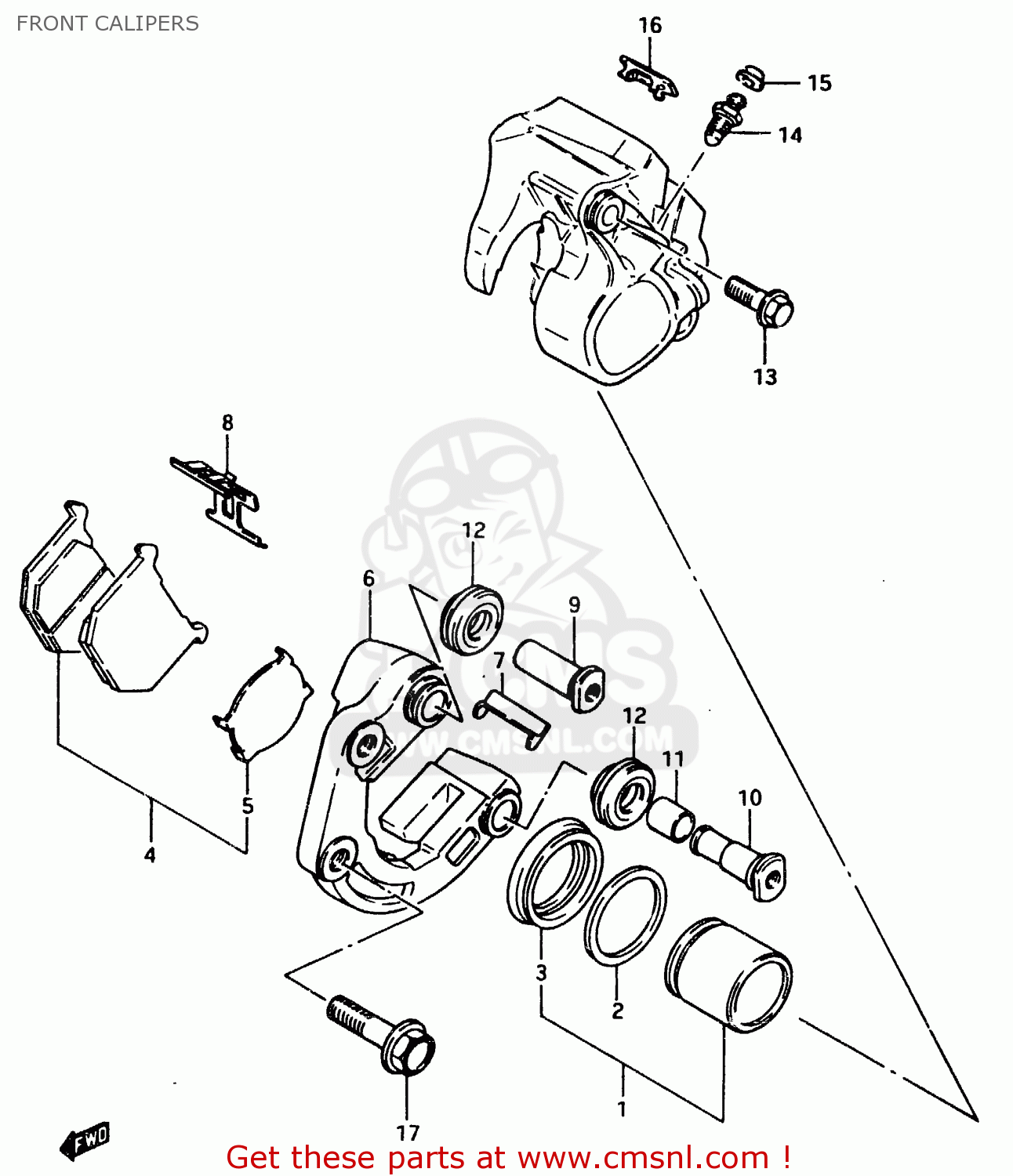

Front calipers diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT CALIPERS GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT CALIPERS GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT CALIPERS GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
0
5910045210
ref: 0
CALIPERS ASSY, FRONT RH
€ 293.00
0
5930045210
ref: 0
CALIPER ASSEMBLY,FRONT,LEFT
€ 304.50
1
5930145820
ref: 1
PISTON SET
€ 117.00
2
5910718410
ref: 2
SEAL,PISTON
5910718410
€ 17.00
3
5930845200
ref: 3
BOOT,PISTON
5930845200
€ 13.00
4
5930145850
ref: 4
PAD & SHIM SET (NAS)
5930145850
€ 43.00
5
5937145200
ref: 5
SHIM,PAD
5937145200
€ 12.50
6
5910045881
ref: 6
CARRIER,CALIPER,RIGHT
5910045881
€ 114.00
6
5930145841
ref: 6
CARRIER,CALIPER,LEFT
5930145841
€ 67.00
7
5931645201
ref: 7
GUIDE,PAD
5931645201
€ 19.00
8
5931545200
ref: 8
SPRING,PAD
5931545200
€ 29.00
9
5930545200
ref: 9
AXLE NO.1
5930545200
€ 15.00
10
5930645200
ref: 10
AXLE NO.2
5930645200
€ 13.50
11
5931345200
ref: 11
BUSH,AXLE
5931345200
€ 12.00
12
5931245200
ref: 12
BOOT,AXLE
5931245200
€ 10.50
13
5931445201
ref: 13
BOLT
5931445201
€ 12.00
14
5912118410
ref: 14
BLEEDER
5912118410
€ 8.00
15
5912218410
ref: 15
CAP,BREATHER
5912218410
€ 6.00
16
5932445201
ref: 16
COVER
5932445201
€ 5.00
17
0151710405
ref: 17
BOLT 10X40
0151710405
€ 4.00
