FUEL TANK (GSX750EFE)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

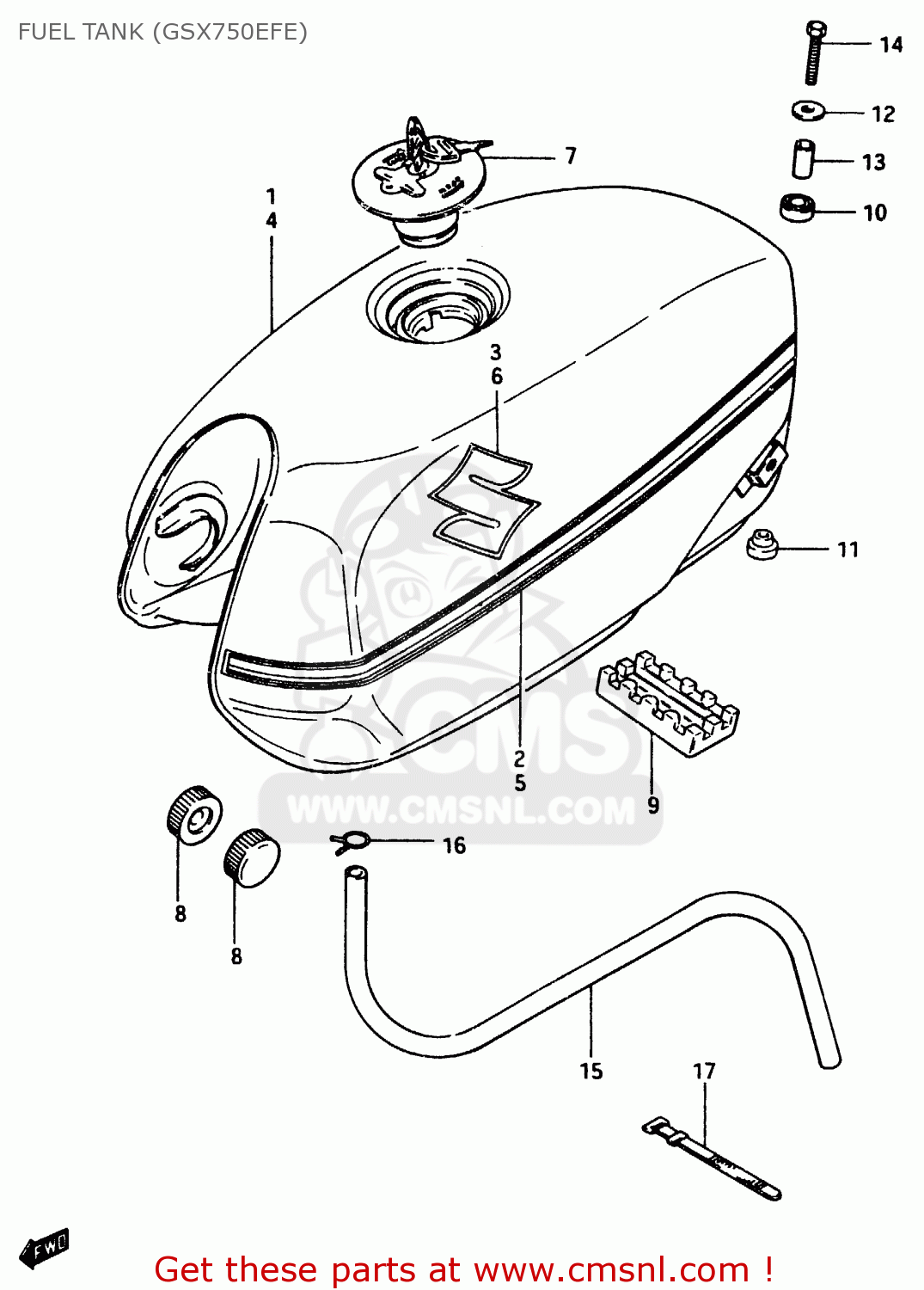

Fuel tank (gsx750efe) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FUEL TANK (GSX750EFE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FUEL TANK (GSX750EFE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FUEL TANK (GSX750EFE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
441003134087P
ref: 1
TANK, FUEL
441003134087P
€ 675.50
1
441003137087P
ref: 1
E22
TANK, FUEL
€ 618.00
2
681103133095J
ref: 2
TAPE SET, FUEL TANK
€ 37.50
3
681114341073H
ref: 3
EMBLEM
681114341073H
€ 7.50
4
441003134091J
ref: 4
TANK, FUEL
€ 675.50
4
441003137091J
ref: 4
E22
TANK, FUEL
€ 618.00
5
681103133093K
ref: 5
TAPE SET, FUEL TANK
€ 37.50
6
681114341073H
ref: 6
EMBLEM
681114341073H
€ 7.50
7
4420031310KEY
ref: 7
CAP, FILLER
4420031310KEY
€ 99.50
8
0932910016
ref: 8
CUSHION
0932910016
€ 3.00
9
4454134500
ref: 9
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
10
0932014013
ref: 10
CUSHION
0932014013
€ 3.00
11
0932010020
ref: 11
CUSHION
0932010020
€ 4.00
12
0916006004
ref: 12
WASHER (6.5X24X1.6)
0916006004
€ 1.50
13
0918006072
ref: 13
SPACER
0918006072
€ 2.00
14
0110706308
ref: 14
BOLT
0110706308
€ 2.50
15
0934305165
ref: 15
HOSE,FUEL
0934305165
€ 13.00
16
0940108402
ref: 16
CLIP
0940108402
€ 1.50
17
0940718401
ref: 17
CLAMP(L:187)
0940718401
€ 2.00
