CYLINDER

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

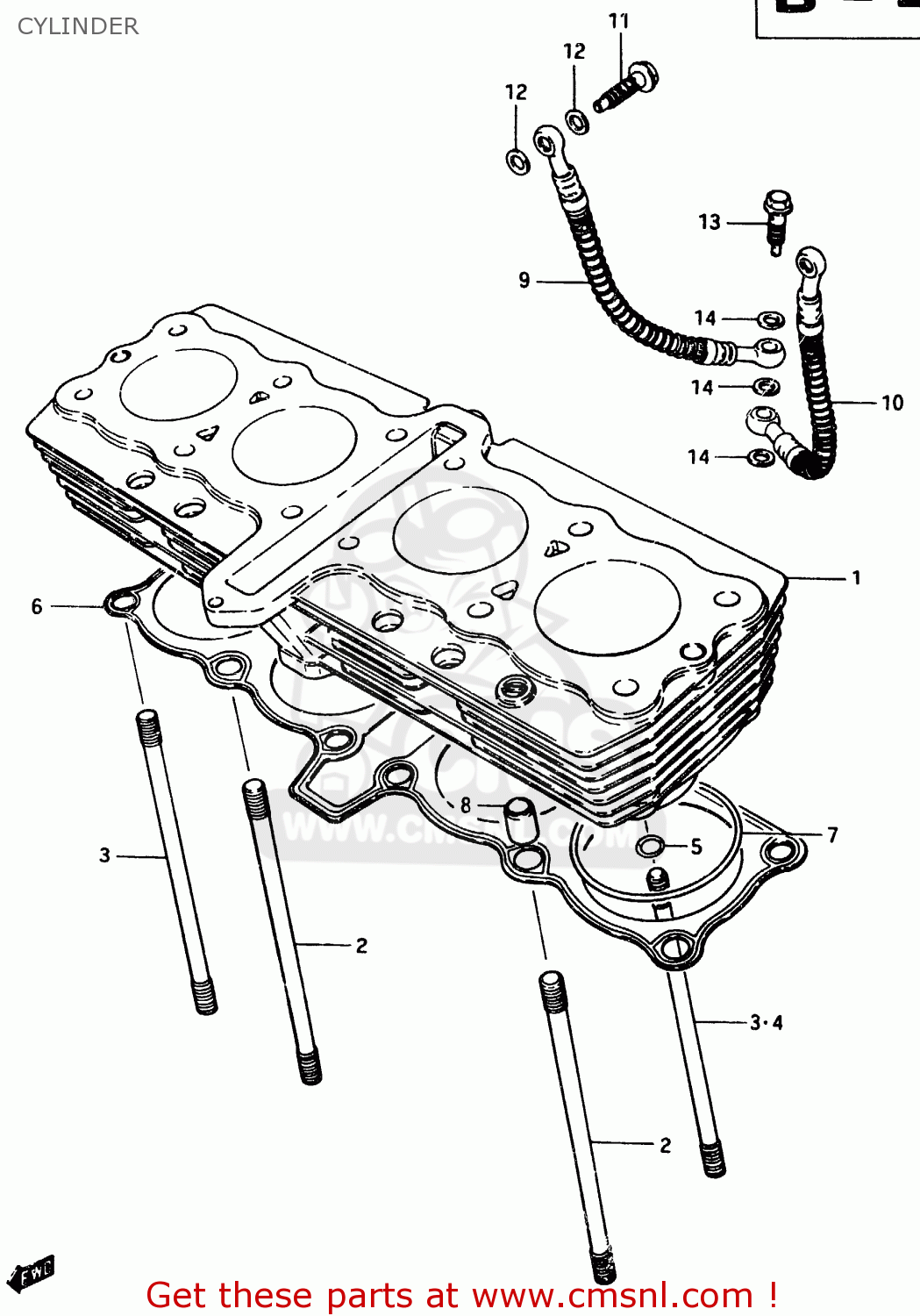

Cylinder diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CYLINDER GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CYLINDER GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

1121031308
ref: 1
FROM 11210-31307

CYLINDER

€ 793.00

2

0910810057
ref: 2

STUD

€ 7.00

3

0910810047
ref: 3
MODEL D, MODEL E ~E.

STUD

€ 8.50

3

0910810047
ref: 3
MODEL E E.NO.118032~

STUD

€ 8.50

4

0910810062
ref: 4
MODEL E E.NO.118032~

STUD

€ 8.50

5

0928011005
ref: 5
MODEL E E.NO.118032~

O RING(D:2.4,ID:11)

€ 4.50

6

1124131990
ref: 6
~E.NO.118031 TO 1124

GASKET,CYLINDER

€ 15.00

6

1124106A01
ref: 6
E.NO.118032~

GASKET,CYLINDER (NAS)

€ 13.50

7

0928070001
ref: 7

O RING(D:2,ID:70)

€ 7.50

8

0920613006
ref: 8

PIN

€ 9.00

9

1128131304
ref: 9

HOSE,OIL

€ 73.00

10

1128231304
ref: 10

HOSE,OIL

€ 73.00

11

0936008008
ref: 11

BOLT UNION

€ 4.00

12

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

13

1128531301
ref: 13

BOLT,OIL PIPE

€ 12.50

14

0916110009
ref: 14
FROM 09161-10005

WASHER(10X15X1.5)

€ 2.00
