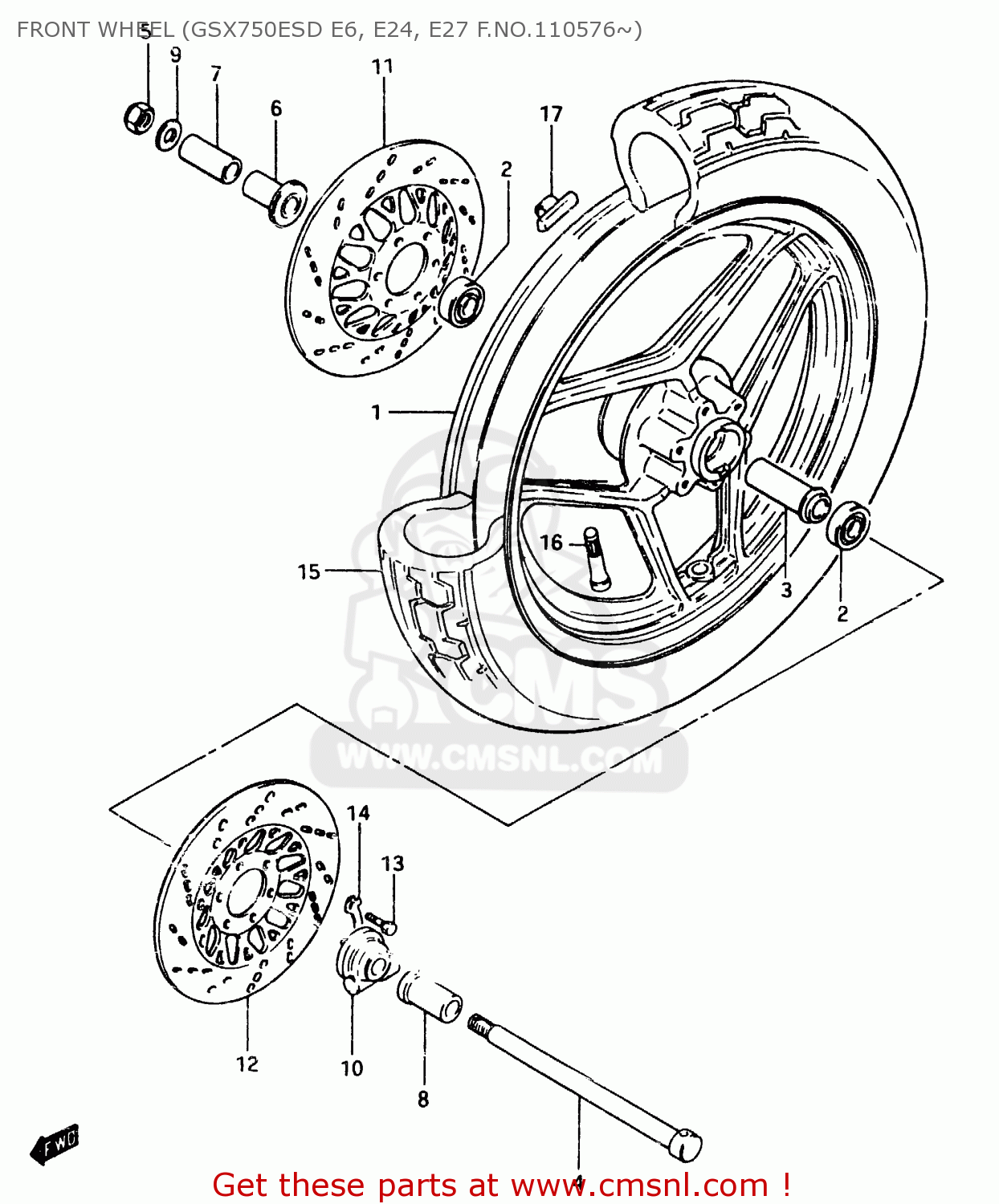

FRONT WHEEL (GSX750ESD E6, E24, E27 F.NO.110576~)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

Front wheel (gsx750esd e6, e24, e27 f.no.110576~) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT WHEEL (GSX750ESD E6, E24, E27 F.NO.110576~) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT WHEEL (GSX750ESD E6, E24, E27 F.NO.110576~) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

5411131340291
ref: 1
BLACK

WHEEL, FRONT (MT2.50X16)

€ 0.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473009300
ref: 3

SPACER,FRONT HUB BEARING

€ 9.50

4

5471109300
ref: 4

AXLE,FR

€ 42.00

5

0915912011
ref: 5

NUT

€ 8.50

6

5474018402
ref: 6

SPACER,FR AXLE,R

€ 18.50

7

5474145300
ref: 7

SPACER, AXLE RH

€ 0.00

8

5474149000
ref: 8

SPACER,FR AXLE,L

€ 16.50

9

0832221128
ref: 9

WASHER

€ 2.00

10

5460031301
ref: 10

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.00

11

5921109300
ref: 11

DISC,BRAKE,RIGHT

€ 243.00

12

5922109300
ref: 12

DISC,BRAKE,LEFT

€ 243.00

13

0910008140
ref: 13

BOLT(8X25)

€ 2.00

14

0916908016
ref: 14

WASHER

€ 3.50

15

5510031370
ref: 15
BS

TIRE, TUBELESS (120/80V16)

€ 0.00

16

4313075150
ref: 16

VALVE,TIRE

€ 14.50

17

5541145100
ref: 17

BALANCER,WHEEL

€ 7.00

17

5541245100
ref: 17

BALANCER,WHEEL

€ 4.00

17

5541345100
ref: 17

BALANCER,WHEEL

€ 6.50
