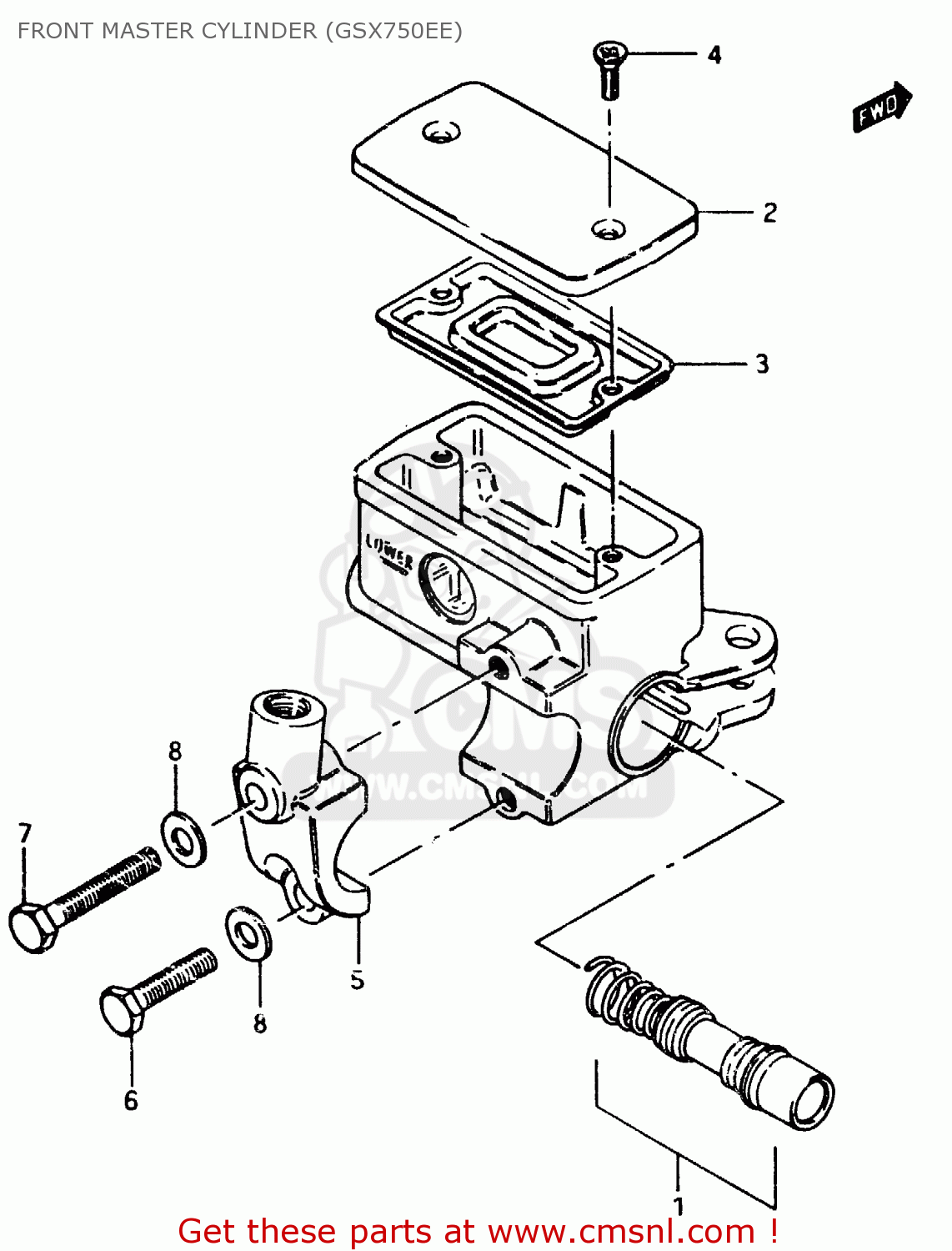

FRONT MASTER CYLINDER (GSX750EE)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

Front master cylinder (gsx750ee) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT MASTER CYLINDER (GSX750EE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT MASTER CYLINDER (GSX750EE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

0

5960045420
ref: 0

MASTER CYLINDER

€ 274.00

1

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

2

6966949350
ref: 2

CAP

€ 30.00

3

6966749300
ref: 3

6966749300

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706258
ref: 6

BOLT

€ 2.00

7

0110706408
ref: 7

BOLT 6X40

€ 2.00

8

0832221068
ref: 8

WASHER

€ 2.00
